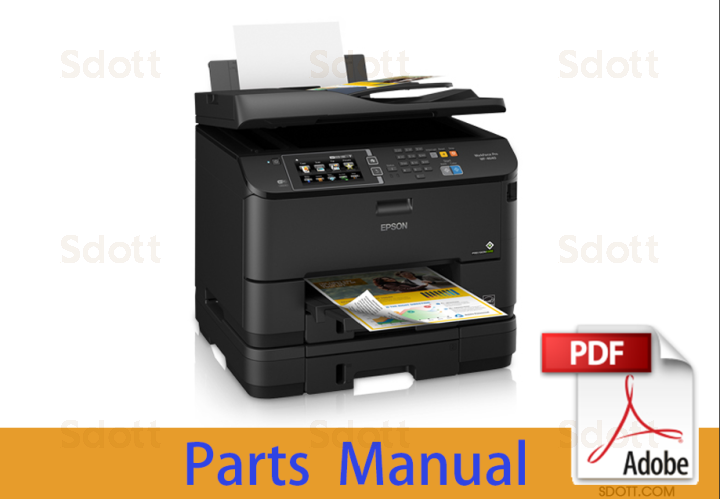

EPSON WF-4640 Parts Manual
In stock
SKU
EP-WF4640-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON WF-4640 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.35M |
| Pages | 6 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-4600 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1606972 | 100 | HOUSING,MIDDLE,B |
| 1636784 | 101 | PANEL ASSY.,B,SEC |
| 1554455 | 104 | HOUSING FRONT ASSY.,B |
| 1624234 | 105 | COVER,FAX ASSY.,B,ASP |
| 1822885 | 105 | COVER,FAX ASSY.,B,ASP |
| 1550639 | 106 | HOUSING,REAR,B |
| 1550727 | 107 | PAPER SUPPORT,B |
| 1550835 | 111 | COVER,ASF,REAR,B |
| 1550836 | 112 | COVER,ASF,FRONT,B |
| 2168197 | 200 | BOARD ASSY.,MAIN |
| 2189992 | 200 | BOARD ASSY.,MAIN |
| 2153413 | 201 | BOARD ASSY.,INTERFACE |
| 2171673 | 202 | WIRELESS LAN USB MODULE |
| 2150740 | 204 | HARNESS |
| 2193699 | 204 | HARNESS MAIN-I/F, |
| 2150738 | 206 | HARNESS |
| 2177533 | 300 | BOARD ASSY.,POWER SUPPLY |
| 1671280 | 500 | FRAME,BASE ASSY.,E,ASP |
| 1822888 | 500 | FRAME,BASE ASSY.,E,ASP |
| 1615454 | 501 | CARRIAGE ASSY.,SEC |
| 1549854 | 502 | SCALE,CR |
| 1549855 | 503 | EXTENSION SPRING,2.03 |
| 2136746 | 504 | CONNECTOR,DRAWER,MAIN |
| 1522498 | 511 | SHAFT,DRIVE,PICK UP |
| 2060220 | 512 | CONNECTOR,CARTRIDGE,A |
| 2143968 | 513 | BOARD ASSY.,SUB |
| 2136631 | 514 | CABLE,BOARD ASSY.,IC |
| 2194031 | 514 | CABLE,BOARD ASSY.,IC |
| 1471944 | 531 | ROLLER,DRIVEN |
| 1471945 | 532 | SHAFT,ROLLER,DRIVEN |
| FA16141 | 700 | Ersetzt durch: FA16221 |
| FA16181 | 700 | PRINT HEAD,ID8570-14,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| FA16221 | 700 | PRINT HEAD,ID8570-14,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| 1615727 | 701 | I/S MENTENANCE ASSY.,SEC |
| 1799788 | 701 | I/S MENTENANCE ASSY.,SEC |
| 1706207 | 704 | I/S SUPPLY ASSY.,B,ASP |
| 1822890 | 704 | I/S SUPPLY ASSY.,B,ASP |
| 1607033 | 705 | SEAL,JOINT,HEAD |
| 1766374 | 705 | SEAL,JOINT,HEAD |
| 1615726 | 706 | I/S PUMP ASSY.,SEC |
| 1799787 | 706 | I/S PUMP ASSY.,SEC |
| 1615714 | 708 | R-ASF ASSY.,SEC |
| 1799727 | 708 | R-ASF ASSY.,SEC |
| 1554431 | 709 | GUIDE RASF UPPER ASSY. |
| 1561248 | 710 | FRAME,PICK UP ASSY,SEC |
| 1615448 | 711 | ROLLER,EJ ASSY.,SEC |
| 1554412 | 712 | PICK UP ASSY.,SEC |
| 1797654 | 712 | PICK UP ASSY.,SEC |
| 1554415 | 713 | STOPPER PAPER ASSY.,SEC |
| 2136669 | 714 | BOARD ASSY.,ENCORDER,PF |
| 2136637 | 715 | CABLE,ENCODER,PF |
| 2152712 | 716 | CABLE,CSIC |
| 2186794 | 716 | CABLE,CSIC |
| 2194556 | 716 | CABLE,CSIC |
| 1615715 | 717 | CABLE,HEAD ASSY.,SEC |
| 1799786 | 717 | CABLE,HEAD ASSY.,SEC |
| 1615435 | 718 | STACKER ASSY.,BK,SEC |
| 1624407 | 719 | CASSETTE ASSY.,BK,C,SEC |
| 1636229 | 720 | DUPLEX ASSY.,F,SEC |
| 2136751 | 721 | CONNECTOR,DRAWER,OPT |
| 1610750 | 732 | GROUNDING PLATE,PS,C |
| 1552602 | 733 | CLUTCH SPRING,ASSY |
| 1550615 | 734 | SPUR GEAR,30.4 |
| 1641260 | 750 | HOUSING CASSETTE 2ND ASSY.,B,SEC |
| 1561249 | 751 | PICK UP 2ND ASSY.,SEC |
| 1597841 | 752 | CASSETTE 2ND ASSY.,D,SEC |
| 1538126 | 753 | COVER,CASSETTE |
| 1624232 | 800 | SCANNER UNIT,CD11,ASP |
| 1822881 | 800 | SCANNER UNIT,CD11,ASP |
| 2154516 | 801 | SPEAKER |
| 1659155 | 900 | ADF UNIT,CD11,B,ASP |
| 1741472 | 900 | ADF UNIT,CD11,B,ASP |
| 1822887 | 900 | ADF UNIT,CD11,B,ASP |
| 1739472 | 900 | Ersetzt durch: 1741472 |
| 1615299 | 901 | DOCUMENT,SUPPORT,ADF ASSY.,BK,SEC |
| 1615296 | 902 | COVER,ADF ASSY.,BK,SEC |
| 1606970 | 903 | COVER,REAR,ADF,B |
| 1555114 | 904 | PAD,ADF ASSY.,SEC |
| 1588569 | 905 | FRAME,LD ASSY.,B,SEC |
| 1797648 | 905 | FRAME,LD ASSY.,B,SEC |
| 1550947 | 906 | MAT,COVER,DOCUMENT |
