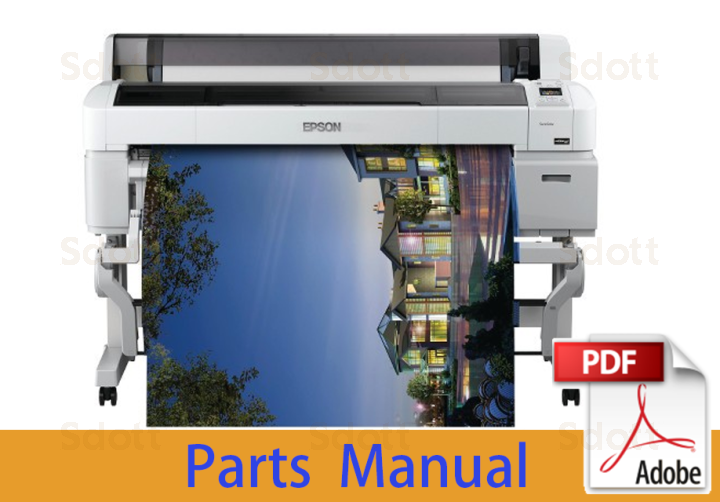

EPSON SureColor T5400 T5430 T5450 T5460 T5470 T5480 Parts Manual
In stock
SKU
EP-T5400-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor T5400 T5430 T5450 T5460 T5470 T5480 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.07M |
| Pages | 8 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor T5400 T5430 T5450 T5460 T5470 T5480 Series |

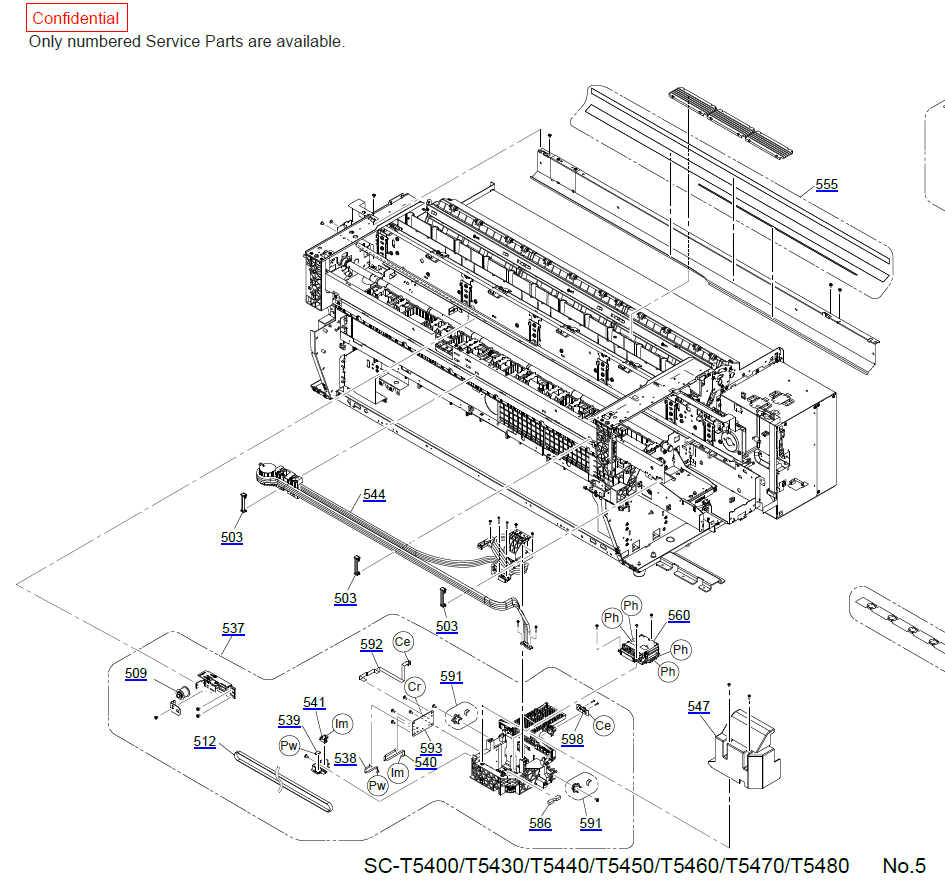

****** The following content is not included in the PDF manual, please use it online ******
| SURECOLOR SC-T5400 | 1787901 | 1 | STAND ASSY,B,CF86[1760015] | ||||
| SURECOLOR SC-T5400 | 1765301 | 2 | PIPE,BASKET,SIDE ASSY,IEI | ||||
| SURECOLOR SC-T5400 | 1735157 | 3 | PIPE,BASKET,36 | ||||
| SURECOLOR SC-T5400 | 1735158 | 4 | BASKET,36 | ||||
| SURECOLOR SC-T5400 | 1760027 | 6 | CASTER,P60HG,ASP | ||||
| SURECOLOR SC-T5400 | 1760028 | 7 | CASTER,P60HGA,ASP | ||||
| SURECOLOR SC-T5400 | 1765296 | 8 | STAND ASSEMBLY SCREW 36,IEI | ||||
| SURECOLOR SC-T5400 | 1739014 | 101 | COVER,SIDE,LEFT | ||||
| SURECOLOR SC-T5400 | 1760038 | 102 | COVER,FRONT,RIGHT,ASSY,ASP | ||||
| SURECOLOR SC-T5400 | 1737866 | 103 | COVER,FRONT,LEFT | ||||
| SURECOLOR SC-T5400 | 1737851 | 104 | COVER,TOP,LEFT | ||||
| SURECOLOR SC-T5400 | 1737852 | 105 | COVER,TOP,RIGHT | ||||
| SURECOLOR SC-T5400 | 1739146 | 106 | COVER,TOP,MIDDLE,36 | ||||
| SURECOLOR SC-T5400 | 1737854 | 107 | DECORATION PLATE,UPPER,LEFT | ||||
| SURECOLOR SC-T5400 | 1739163 | 108 | HOLDER,MAINTENANCE,RIGHT | ||||
| SURECOLOR SC-T5400 | 1739164 | 109 | HOLDER,MAINTENANCE,LEFT | ||||
| SURECOLOR SC-T5400 | 1747772 | 110 | COVER,FRONT,ASSY,CF86,IEI | ||||
| SURECOLOR SC-T5400 | 1759667 | 111 | COVER FRONT MIDDLE UPPER,ASSY,CF86,ASP | ||||
| SURECOLOR SC-T5400 | 1747774 | 112 | COVER MAINTENANCE,ASSY,CF86,IEI | ||||
| SURECOLOR SC-T5400 | 1760012 | 113 | COVER,SIDE,RIGHT,ASSY,CF86,WW,ASP | ||||
| SURECOLOR SC-T5400 | 1736802 | 114 | CAP,CR | ||||
| SURECOLOR SC-T5400 | 1736804 | 115 | COVER,IH,BEARING | ||||
| SURECOLOR SC-T5400 | 1760039 | 116 | COVER,IH,ASSY,ASP | ||||
| SURECOLOR SC-T5400 | 1815591 | 117 | COVER TOP ASSY,CF86,ASP | ||||
| SURECOLOR SC-T5400 | 1760022 | 117 | Ersetzt durch: 1815591 | ||||
| SURECOLOR SC-T5400 | 1760023 | 118 | HOLDER MAINTENANCE MIDDLE ASSY,CF86,ASP | ||||
| SURECOLOR SC-T5400 | 1739023 | 119 | HINGE,COVER,ROLL | ||||
| SURECOLOR SC-T5400 | 1760024 | 120 | COVER,ROLL,FRONT,36,ASSY,IEI,ASP | ||||
| SURECOLOR SC-T5400 | 1760025 | 121 | COVER,ROLL,36,ASP | ||||
| SURECOLOR SC-T5400 | 1739070 | 122 | COVER,IF | ||||
| SURECOLOR SC-T5400 | 1760040 | 123 | COVER,REAR,ASSY,ASP | ||||
| SURECOLOR SC-T5400 | 1760029 | 124 | COVER,SIDE,LEFT,BASE,ASP | ||||
| SURECOLOR SC-T5400 | 1786099 | 125 | COVER,SIDE,LEFT,UPPER,B | ||||
| SURECOLOR SC-T5400 | 1737855 | 126 | DECORATION PLATE,RIGHT | ||||
| SURECOLOR SC-T5400 | 2185458 | 200 | BOARD ASSY.,MAIN | ||||
| SURECOLOR SC-T5400 | 2185994 | 201 | BOARD ASSY.,SUB | ||||
| SURECOLOR SC-T5400 | 2192160 | 202 | WIRELESS LAN USB MODULE | ||||
| SURECOLOR SC-T5400 | 2185567 | 203 | HARNESS,WiFi | ||||
| SURECOLOR SC-T5400 | 2185581 | 204 | HARNESS,RELAY,SUB-B | ||||
| SURECOLOR SC-T5400 | 2185582 | 205 | HARNESS,SUB-B,FFC_40 | ||||
| SURECOLOR SC-T5400 | 2202150 | 300 | BOARD ASSY.,POWER SUPPLY | ||||
| SURECOLOR SC-T5400 | 2185563 | 301 | HARNESS,P/S,INLET | ||||
| SURECOLOR SC-T5400 | 2185566 | 302 | HARNESS,P/S,DC_OUT_2 | ||||
| SURECOLOR SC-T5400 | 2185564 | 303 | HARNESS,AC,RELAY | ||||
| SURECOLOR SC-T5400 | 2185565 | 304 | HARNESS,P/S,DC_OUT_1 | ||||
| SURECOLOR SC-T5400 | 2185575 | 501 | HARNESS,CRCM | ||||
| SURECOLOR SC-T5400 | 1759656 | 502 | SCALE,CR36,ASP | ||||
| SURECOLOR SC-T5400 | 1735293 | 503 | HOLDER,TUBE | ||||
| SURECOLOR SC-T5400 | 1487528 | 504 | EXTENSION SPRING,3.0,B | ||||
| SURECOLOR SC-T5400 | 2189129 | 505 | MOTOR ASSY.,CR | ||||
| SURECOLOR SC-T5400 | 1760037 | 506 | LEVER,APG,ASSY,ASP | ||||
| SURECOLOR SC-T5400 | 2186293 | 508 | CABLE,ENCODER,PF,36 | ||||
| SURECOLOR SC-T5400 | 1480133 | 509 | PULLEY,DRIVEN | ||||
| SURECOLOR SC-T5400 | 1760017 | 510 | SCALE,PF,KIT,ASP | ||||
| SURECOLOR SC-T5400 | 1524703 | 511 | TIMING BELT,PF | ||||
| SURECOLOR SC-T5400 | 1560752 | 512 | TIMING BELT,CR,36 | ||||
| SURECOLOR SC-T5400 | 1735151 | 513 | PAPER GUIDE,REAR,SUB | ||||
| SURECOLOR SC-T5400 | 2186931 | 515 | HARNESS,COVER,TOP | ||||
| SURECOLOR SC-T5400 | 2186933 | 516 | HARNESS,COVER,PRINTER,36 | ||||
| SURECOLOR SC-T5400 | 2186934 | 517 | HARNESS,COVER,INK | ||||
| SURECOLOR SC-T5400 | 2186935 | 518 | HARNESS,COVER,MAINTENANCE | ||||
| SURECOLOR SC-T5400 | 1739188 | 519 | COVER,ROLL,REAR | ||||
| SURECOLOR SC-T5400 | 1759652 | 520 | IH ASSY.,CF86,EPW,ASP | ||||
| SURECOLOR SC-T5400 | 1759657 | 521 | SEAL RUBBER,JOINT,DUCT,ASP | ||||
| SURECOLOR SC-T5400 | 1760161 | 522 | INK SYSTEM, IEI, ASSY, CF86,ASP | ||||
| SURECOLOR SC-T5400 | 2186496 | 523 | CABLE,ENCODER,IS,CF86 | ||||
| SURECOLOR SC-T5400 | 1725717 | 524 | COVER,ENCODER | ||||
| SURECOLOR SC-T5400 | 2186510 | 525 | HARNESS,INK EJECT,CF85 | ||||
| SURECOLOR SC-T5400 | 1220013 | 526 | LEAF SPRING,LOCK | ||||
| SURECOLOR SC-T5400 | 1759658 | 527 | BOARD UNIT,CF86,ASP | ||||
| SURECOLOR SC-T5400 | 2186497 | 528 | HARNESS,MOTOR,IS,L,CF86 | ||||
| SURECOLOR SC-T5400 | 2184028 | 529 | COOLING,FAN | ||||
| SURECOLOR SC-T5400 | 1735923 | 530 | CENTER SUPPORT,ROLLER,PF | ||||
| SURECOLOR SC-T5400 | 2186292 | 531 | MOTOR ASSY,PF | ||||
| SURECOLOR SC-T5400 | 2133325 | 532 | BOARD ASSY.,ENCODER,PF | ||||
| SURECOLOR SC-T5400 | 1736646 | 533 | PAPER GUIDE,FRONT | ||||
| SURECOLOR SC-T5400 | 1736647 | 534 | PAPER GUIDE,FRONT,B | ||||
| SURECOLOR SC-T5400 | 1736648 | 535 | PAPER GUIDE,FRONT,C | ||||
| SURECOLOR SC-T5400 | 1736649 | 536 | PAPER GUIDE,FRONT,D | ||||
| SURECOLOR SC-T5400 | 1794053 | 537 | CR ASSY,B,CF86,IEI,ASP | ||||
| SURECOLOR SC-T5400 | 2186289 | 538 | CABLE,PW | ||||
| SURECOLOR SC-T5400 | 2109393 | 539 | BOARD ASSY.,DETECTOR,PW,B | ||||
| SURECOLOR SC-T5400 | 2186290 | 540 | CABLE,IMS | ||||
| SURECOLOR SC-T5400 | 2183502 | 541 | BOARD ASSY.,INK MARK,D | ||||
| SURECOLOR SC-T5400 | 1759660 | 542 | SPINDLE HOLDER LEFT ASSY,CF86,IEI,ASP | ||||
| SURECOLOR SC-T5400 | 1760020 | 544 | GUIDE PLATE TUBE ASSY,CF86,ASP | ||||
| SURECOLOR SC-T5400 | 1747692 | 545 | SENSOR HOLDER PAPER ASSY IEI | ||||
| SURECOLOR SC-T5400 | 1760021 | 546 | ROLLER ASSY.,DRIVEN,ASP | ||||
| SURECOLOR SC-T5400 | 1747750 | 547 | COVER,CR ASSY | ||||
| SURECOLOR SC-T5400 | 1735147 | 548 | SPUR GEAR,51 | ||||
| SURECOLOR SC-T5400 | 1759661 | 549 | PANEL,ASSY,CF86,IEI,ASP | ||||
| SURECOLOR SC-T5400 | 2186932 | 550 | SENSOR,ASSY,COVER | ||||
| SURECOLOR SC-T5400 | 2133208 | 551 | MICRO DOOR SWITCH,D3DC-3 | ||||
| SURECOLOR SC-T5400 | 1737870 | 552 | HOLDER,SENSOR,INNER | ||||
| SURECOLOR SC-T5400 | 1787899 | 554 | HARNESS FFC ASSY,B,CF86,IEI,ASP | ||||
| SURECOLOR SC-T5400 | 1760019 | 555 | SHEET,GUIDE,TUBE,36,KIT,ASP | ||||
| SURECOLOR SC-T5400 | FA41011 | 560 | PRINT HEAD,I03569-1,ASP | ||||
| SURECOLOR SC-T5400 | 2186088 | 561 | FAN ASSY.,EJ | ||||
| SURECOLOR SC-T5400 | 2200974 | 562 | HARNESS,FAN,EJ,B | ||||
| SURECOLOR SC-T5400 | 1759655 | 566 | SPINDLE HOLDER RIGHT ASSY,CF86,IEI,ASP | ||||
| SURECOLOR SC-T5400 | 2186928 | 567 | HARNESS,REWIND | ||||
| SURECOLOR SC-T5400 | 2185569 | 568 | HARNESS,PANEL | ||||
| SURECOLOR SC-T5400 | 1739012 | 569 | EXTENSION SPRING,0.63 | ||||
| SURECOLOR SC-T5400 | 2186929 | 570 | HARNESS,ROLL,COVER | ||||
| SURECOLOR SC-T5400 | 2090717 | 571 | LEAF SENSOR | ||||
| SURECOLOR SC-T5400 | 2186930 | 572 | HARNESS,MANUAL INSERTION,COVER | ||||
| SURECOLOR SC-T5400 | 1743928 | 573 | COVER,LED | ||||
| SURECOLOR SC-T5400 | 2188194 | 574 | HARNESS,RELAY,PNL-B | ||||
| SURECOLOR SC-T5400 | 2185996 | 575 | BOARD ASSY.,PANEL | ||||
| SURECOLOR SC-T5400 | 2150781 | 576 | HARNESS | ||||
| SURECOLOR SC-T5400 | 1739016 | 577 | EXTENSION SPRING,19.08 | ||||
| SURECOLOR SC-T5400 | 1760026 | 578 | FRAME DRIVE ROLL,ASSY,ASP | ||||
| SURECOLOR SC-T5400 | 2186575 | 584 | MOTOR ASSY,ATC | ||||
| SURECOLOR SC-T5400 | 1747762 | 585 | DUMPER,ASSY,CF86,IEI | ||||
| SURECOLOR SC-T5400 | 1751368 | 586 | POROUS PAD,CR | ||||
| SURECOLOR SC-T5400 | 1759663 | 587 | COVER,INK,SHIELD,CF86,ASP | ||||
| SURECOLOR SC-T5400 | 1747751 | 588 | FLAG APG,IEI,,ASSY | ||||
| SURECOLOR SC-T5400 | 2186297 | 589 | HARNESS,RELAY,MOTOR,PF,36 | ||||
| SURECOLOR SC-T5400 | 1725657 | 590 | C-RING,STW-16 | ||||
| SURECOLOR SC-T5400 | 1760018 | 591 | OIL PAD,ASSY,ASP | ||||
| SURECOLOR SC-T5400 | 2186291 | 592 | CABLE,ENCODER,CR | ||||
| SURECOLOR SC-T5400 | 2185992 | 593 | BOARD ASSY.,SUB | ||||
| SURECOLOR SC-T5400 | 1759659 | 594 | CUTTER ASSY CF86,IEI,ASP | ||||
| SURECOLOR SC-T5400 | 1577038 | 595 | COVER,MOTOR,CUTTER | ||||
| SURECOLOR SC-T5400 | 2186299 | 597 | HARNESS,SENSOR,CUTTER | ||||
| SURECOLOR SC-T5400 | 2179514 | 598 | BOARD ASSY.,ENCODER | ||||
