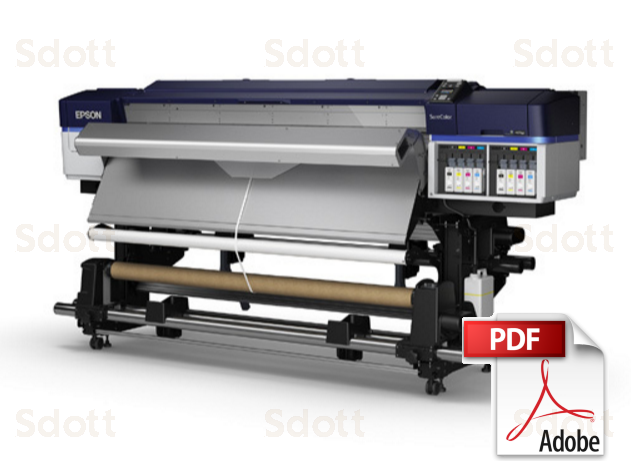

EPSON SureColor S60600/S60610/S60650/S60670 Parts Manual

In stock
SKU
EP-S60600-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name EPSON SureColor S60600/S60610/S60650/S60670 Parts Manual
Format PDF
PDF Archive 14.9M
Pages 11
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor S60600 S60610 S60650 S60670 Series



****** The following content is not included in the PDF manual, please use it online ******

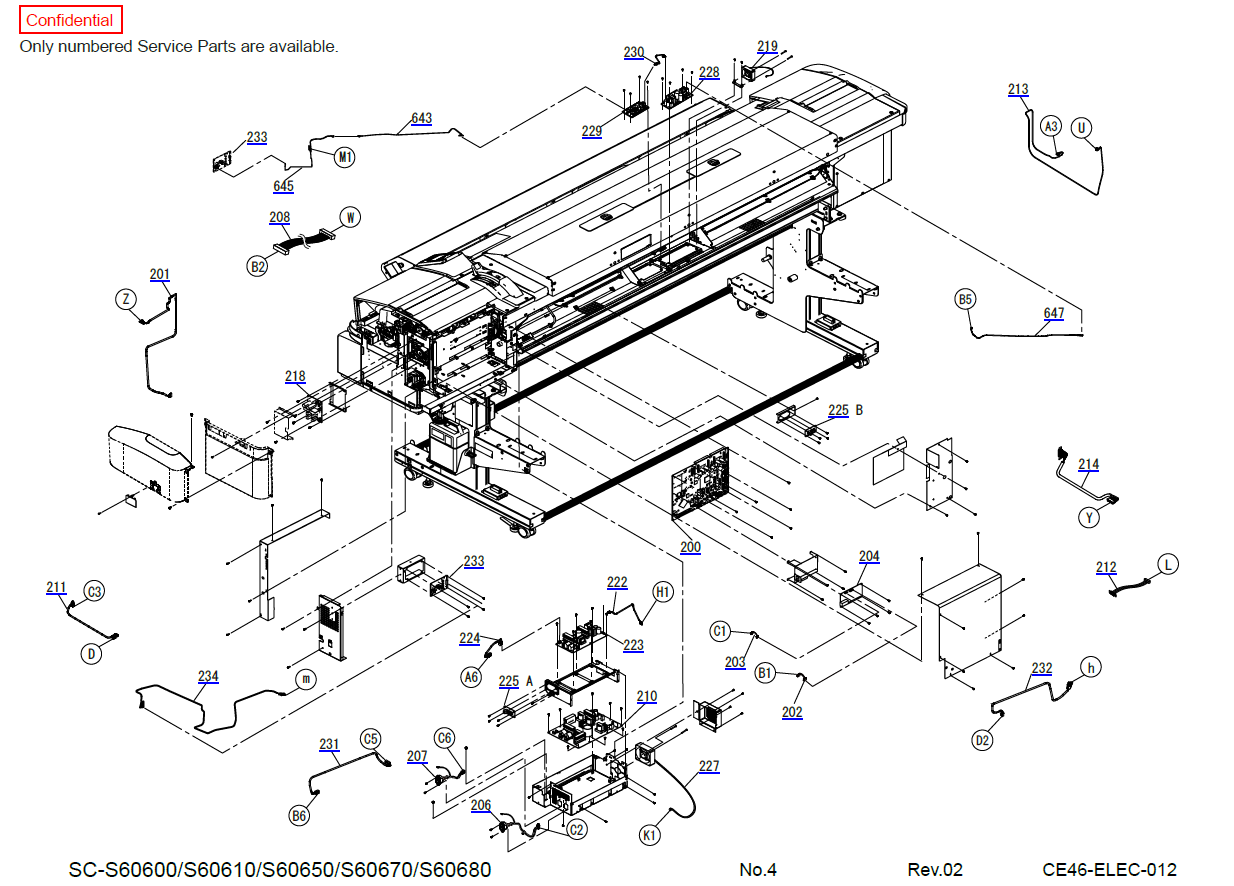

ModelArticleReferenceDescription
SURECOLOR SC-S6060016806931SCREW KIT ASSY,ASP
SURECOLOR SC-S6060016548162ADJUSTER ASSY.,STAND
SURECOLOR SC-S6060016548183CASER,6043STNO
SURECOLOR SC-S6060016548194CASER,6043STYS
SURECOLOR SC-S6060016806918STAND LEFT ASSY AD,ASP
SURECOLOR SC-S6060017099028STAND LEFT ASSY AD,ASP
SURECOLOR SC-S6060016806929STAND RIGHT ASSY AD,ASP
SURECOLOR SC-S6060017099039STAND RIGHT ASSY AD,ASP
SURECOLOR SC-S60600165482010ADJUSTER,D-B3 10X75FR
SURECOLOR SC-S606001680680100COVER TOP LEFT ASSY ESL,ASP
SURECOLOR SC-S606001665556101COVER,SIDE,RIGHT,UPPER,B
SURECOLOR SC-S606001680682102COVER TOP RIGHT ASSY ESL,ASP
SURECOLOR SC-S606001680699103COVER,FRONT,RIGHT,64 ASSY ESL,ASP
SURECOLOR SC-S606001680683104COVER,MAINTENANCE,RIGHT,ASSY,ASP
SURECOLOR SC-S606001680681105COVER,MAINTENANCE,LEFT,ASSY.,ASP
SURECOLOR SC-S606001680701106COVER,SIDE,RIGHT,LOWER ASSY ESL,ASP
SURECOLOR SC-S606001680700107COVER,SIDE,LEFT,LOWER ASSY ESL,ASP
SURECOLOR SC-S606001680702108COVER,FRONT,LEFT,64 ASSY ESL,ASP
SURECOLOR SC-S606001665557109COVER,TOP,PANEL,B SDOTT.COM
SURECOLOR SC-S60600168070711STAY STAND SUB ASSY,ASP
SURECOLOR SC-S606001665555110COVER,SIDE,LEFT,UPPER,B
SURECOLOR SC-S606001665560112COVER,MAINTENANCE,B
SURECOLOR SC-S606001665568113COVER,MAINTENANCE,HEAD,B
SURECOLOR SC-S606001552191115HOUSING,BASE,SUPPORT,RIGHT
SURECOLOR SC-S606001552194116HOUSING,BASE,SUPPORT,LEFT
SURECOLOR SC-S606001665566117CAP,COVER,TUBE,B
SURECOLOR SC-S606001552177119KNOB,LEVER
SURECOLOR SC-S60600168070612STAY STAND ASSY,ASP
SURECOLOR SC-S606001672874120LABEL,MODEL NAME
SURECOLOR SC-S606001665562125CAP,CR,ADJUST,B
SURECOLOR SC-S606001682129128LABEL,PRECISIONCORE,B
SURECOLOR SC-S606001677612129LABEL,PERIODIC MAINTENANCE
SURECOLOR SC-S606001662963131COVER,PRINTER,PROTECT,RIGHT
SURECOLOR SC-S606001662964132COVER,PRINTER,PROTECT,LEFT
SURECOLOR SC-S606001680710133COVER PRINTER ASSY ESL,ASP
SURECOLOR SC-S606001662969134COVER,SUB,RIGHT
SURECOLOR SC-S606001662970135COVER,SUB,LEFT
SURECOLOR SC-S606001662981136COVER,RIGHT,MIST
SURECOLOR SC-S60600168069415ACCESSORY KIT,ASP
SURECOLOR SC-S606002174250200BOARD ASSY.,MAIN
SURECOLOR SC-S606002138619201HARNESS
SURECOLOR SC-S606002130945202HARNESS
SURECOLOR SC-S606002130944203HARNESS
SURECOLOR SC-S606002142891204BOARD ASSY.,MAIN
SURECOLOR SC-S606002149216205BOARD ASSY.,SUB
SURECOLOR SC-S606002138603206HARNESS
SURECOLOR SC-S606002143593207HARNESS
SURECOLOR SC-S606002138605208HARNESS
SURECOLOR SC-S606002168583210BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S606002138596211HARNESS
SURECOLOR SC-S606002138598212HARNESS
SURECOLOR SC-S606002138614213HARNESS
SURECOLOR SC-S606002138618214HARNESS
SURECOLOR SC-S606002142882217BOARD ASSY.,SUB
SURECOLOR SC-S606002142879218BOARD ASSY.,SUB
SURECOLOR SC-S606002139319219FAN SET. DC (PROPELLER TYPE)
SURECOLOR SC-S606002174036220BOARD ASSY.,PANEL
SURECOLOR SC-S606002143596222HARNESS
SURECOLOR SC-S606002154132223BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S606002143594224HARNESS
SURECOLOR SC-S606002149057225BOARD ASSY.,SUB
SURECOLOR SC-S606002169990227FAN SET. DC(PROPELLER TYPE)
SURECOLOR SC-S606002142889228BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S606002175355229BOARD ASSY.,SUB
SURECOLOR SC-S606002170607230HARNESS,DC
SURECOLOR SC-S606002170609231HARNESS,RELAY,SUB-J
SURECOLOR SC-S606002170611232HARNESS,RELAY,HEATER,3
SURECOLOR SC-S606002175354233BOARD ASSY.,SUB
SURECOLOR SC-S606002170614234HARNESS,RELAY,1
SURECOLOR SC-S606001680677501SCALE,PF ASSY ESL,ASP
SURECOLOR SC-S606002171014502CABLE,FRONT,COVER,LEFT
SURECOLOR SC-S606001673176503FULL,MAINTENANCE OPEN ASSY.CF06,ESL,ASP
SURECOLOR SC-S606002171016504CABLE,FRONT,COVER,RIGHT
SURECOLOR SC-S606001673177505INK LOCK,MAINTENANCE,ASSY.CF06,ESL,ASP
SURECOLOR SC-S606001706647506CARRIGE ASSY ESL,CE46.B,(1693688)
SURECOLOR SC-S606001710709506CARRIGE ASSY ESL,CE46.B,(1693688)
SURECOLOR SC-S606001480133507PULLEY,DRIVEN
SURECOLOR SC-S606001480177508BOARD ASSY.,ENCODER
SURECOLOR SC-S606001662705509BELT,CR
SURECOLOR SC-S606002143464510PHOTO INTERRUPTER
SURECOLOR SC-S60600FA06092511PRINT HEAD,IA522V-9,ASP
SURECOLOR SC-S606002171913512BOARD ASSY.,INK MARK,B
SURECOLOR SC-S606002109393513BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-S606002158133514HARNESS,CR,ENCODER
SURECOLOR SC-S606002142289515HARNESS,IMS
SURECOLOR SC-S606002158134516HARNESS,PW
SURECOLOR SC-S606002171011517CABLE,SENSOR,PG
SURECOLOR SC-S606002174252518BOARD ASSY.,SUB
SURECOLOR SC-S606001680697519OIL PAD ASSY ESL.,ASP
SURECOLOR SC-S606001680679520FRAME APG ASSY ESL,ASP
SURECOLOR SC-S606001710362520FRAME APG ASSY ESL,ASP
SURECOLOR SC-S606001680690521COVER,HEATER,TOP,REAR ASSY ESL,ASP
SURECOLOR SC-S606001680689523AFTER HEATER ASSY ESL,ASP
SURECOLOR SC-S606001680698525PANEL ASSY ESL,ASP
SURECOLOR SC-S606001717396525PANEL ASSY ESL,ASP
SURECOLOR SC-S606001684361526POROUS PAD,FLASHING BOX.,ASSY ESL,ASP
SURECOLOR SC-S606001694913527FLASHING BOX.,Assy.A,CE46 ESL ASP
SURECOLOR SC-S606001680684528IH ASSY.,R ESL,ASP
SURECOLOR SC-S606001575095529SEAL RUBBER,JOINT.,ASP
SURECOLOR SC-S606001680705530CLOTH WIPER CARRIAGE,Assy ESL,ASP
SURECOLOR SC-S606001680704532PUMP,CAP,Assy.,ESL.,ASP
SURECOLOR SC-S606001710084532PUMP,CAP,ASSY.,ESL.,ASP
SURECOLOR SC-S606001680670533TUBEASSYA,CE46 ESL,ASP
SURECOLOR SC-S606001706325534DUCT,CR ASSY.,R ESL.,A.ASP
SURECOLOR SC-S606001574106535HARNESS,HEAD ASSY,ASP
SURECOLOR SC-S606001574107536HARNESS,HEAD ASSY,C,ASP
SURECOLOR SC-S606001662703537SCALE,CR
SURECOLOR SC-S606001680708538FAN ASSY ESL,ASP
SURECOLOR SC-S606001574122539HEATER,PAPER GUIDE,FRONT,ASP
SURECOLOR SC-S606001559726540SEAL,IMS
SURECOLOR SC-S606002139305541CABLE,THERMISTOR
SURECOLOR SC-S606002169091542MOTOR ASSY.,PF
SURECOLOR SC-S606002170578543BOARD ASSY.,ENCODER,PF
SURECOLOR SC-S606002170930544HARNESS,PF,ENCORDER
SURECOLOR SC-S606002170931546HARNESS,SENSOR,PE
SURECOLOR SC-S606002170576547MOTOR,ASSY.,CR
SURECOLOR SC-S606002130110548MOTOR ASSY.,ASF,SUB
SURECOLOR SC-S606002139286549CABLE,MOTOR,APG
SURECOLOR SC-S606001673000550FAN SET.DC,ASSY ASP
SURECOLOR SC-S606001559635552COVER,CR
SURECOLOR SC-S606001559650553SPACER,CR,B
SURECOLOR SC-S606001559681554SHEET,GUIDE RAIL,TUBE,LOWER
SURECOLOR SC-S606001664858555TIMING BELT,PF
SURECOLOR SC-S606001680709556MEDIA EDGE PLATE ASSY ESL,ASP
SURECOLOR SC-S606002139279559CABLE,RELAY,FRONT,COVER,LEFT
SURECOLOR SC-S606002174478560CABLE,RELAY,MAINTENANCE COVER,LEFT
SURECOLOR SC-S606002158128561HARNESS,PANEL
SURECOLOR SC-S606002142331562HARNESS
SURECOLOR SC-S606002158129563HARNESS,CRCM1
SURECOLOR SC-S606002139289564CABLE,SENSOR,CR
SURECOLOR SC-S606002158139565HARNESS,CR
SURECOLOR SC-S606002139297566CABLE,RELAY,MOTOR,PF
SURECOLOR SC-S606002171010567CABLE,SENSOR,MANUAL RELEASE
SURECOLOR SC-S606002171009568CABLE,RELAY,FAN
SURECOLOR SC-S606002139304569CABLE,RELAY,FAN,B
SURECOLOR SC-S606002170935572CABLE,RELAY,HEATER,B
SURECOLOR SC-S606002170934575CABLE,RELAY,THERMISTOR
SURECOLOR SC-S606002170595576HARNESS,RELAY,MOTOR,11
SURECOLOR SC-S606002170597577HARNESS,RELAY,ENCODER,21
SURECOLOR SC-S606002143600578HARNESS
SURECOLOR SC-S606002143601579HARNESS
SURECOLOR SC-S606002170599580HARNESS,RELAY,SENSOR,3
SURECOLOR SC-S606002143603581HARNESS
SURECOLOR SC-S606002143604582HARNESS
SURECOLOR SC-S606001664850583TAPE,HEATER WIRE,FASTEN
SURECOLOR SC-S606001680668584IH ASSY.,L ESL,ASP
SURECOLOR SC-S606001585151586HARNESS,HEAD,ASSY.,S ESL ASP
SURECOLOR SC-S606001585152587HARNESS,HEAD,ASSY.,S-C ESL ASP
SURECOLOR SC-S606001706326591DUCT,CR ASSY.,L ESL.,A.ASP
SURECOLOR SC-S606002158130593HARNESS,CRCM2
SURECOLOR SC-S606001581618595SHEET,PROTECT,INK
SURECOLOR SC-S606001602678598SHEET,PROTECT,INK,B
SURECOLOR SC-S606001680676604PULLEY,ROLLER,PF ASSY ESL,ASP
SURECOLOR SC-S606001685414615SUB SHAFT,SLIDER ASSY ,ASP
SURECOLOR SC-S606002169089617FAN ASSY.,CR
SURECOLOR SC-S606002153099618HARNESS
SURECOLOR SC-S606002169335622HARNESS,RELAY,CR MOTOR COOLING FAN
SURECOLOR SC-S606002169336623HARNESS,RELAY,CR MOTOR
SURECOLOR SC-S606002170925624THERMISTOR,CR
SURECOLOR SC-S606001662690625DETECTOR PLATE,THERMISTOR
SURECOLOR SC-S606001680671626TUBEASSYB,CE46 ESL,ASP
SURECOLOR SC-S606001680672627SUB BUFFER ASSY,CE46 ESL,ASP SDOTT
SURECOLOR SC-S606002170927628CABLE,SENSOR,TENSION
SURECOLOR SC-S606001662819629ANTISTATIC CLOTH,EJ
SURECOLOR SC-S606002170923630CABLE,SENSOR,NIP
SURECOLOR SC-S606002150441631MOTOR ASSY.,WIPER
SURECOLOR SC-S606002170924632CABLE,MOTOR,NIP
SURECOLOR SC-S606002175356633BOARD ASSY.,SUB
SURECOLOR SC-S606002170604634HARNESS,RELAY,2
SURECOLOR SC-S606002152327635FAN ASSY.,DRYING
SURECOLOR SC-S606002170606636HARNESS,RELAY,FAN2
SURECOLOR SC-S606002170933637CABLE,HEATER,SENSOR,RELAY
SURECOLOR SC-S606002170932638CABLE,HEATER,SENSOR
SURECOLOR SC-S606002170612639HARNESS,RELAY,HEATER,1
SURECOLOR SC-S606002170613640HARNESS,RELAY,HEATER,2
SURECOLOR SC-S606002170598641HARNESS,RELAY,ENCODER,3
SURECOLOR SC-S606001662767642FASTEN PLATE,ROLLER,DRIVEN
SURECOLOR SC-S606002170601643HARNESS,RELAY,SUB-H
SURECOLOR SC-S606002170602644HARNESS,RELAY,AC,1
SURECOLOR SC-S606002170603645HARNESS,RELAY,SUB
SURECOLOR SC-S606002170605646HARNESS,RELAY,FAN1
SURECOLOR SC-S606002170608647HARNESS,RELAY,PSH-C
SURECOLOR SC-S606002170610648HARNESS,RELAY,AC,2
SURECOLOR SC-S606001670304649ROLLER,DRIVEN,B
SURECOLOR SC-S606001706672650COVER,HEAD,CR ASSY,A.ASP
SURECOLOR SC-S606001690512652COIL SPRING ASSY ESL,ASP
SURECOLOR SC-S606001574337NON FIGGREASE,G-81
SURECOLOR SC-S606001516265NON FIGGREASE,G-84
SURECOLOR SC-S606001680696NON FIGGUIDE DRIVER,FR,IS,MAIN ASSY,ASP
SURECOLOR SC-S606001685924NON FIGINK CART.BOXED,BK,PIG'T,781C,T890,700,AS
SURECOLOR SC-S606001685925NON FIGINK CART.BOXED,C,PIG'T,781C,T890,700,AS
SURECOLOR SC-S606001685926NON FIGINK CART.BOXED,M,PIG'T,781C,T890,700,AS
SURECOLOR SC-S606001685927NON FIGINK CART.BOXED,Y,PIG'T,781C,T890,700,AS
SURECOLOR SC-S606001476228NON FIGJETRAS JP-D300S
SURECOLOR SC-S606001673002NON FIGLUBRICATION KIT CE30 ASP
SURECOLOR SC-S606001521154NON FIGOIL,O-17 SDOTT.COM
SURECOLOR SC-S606001640645NON FIGSONIC TENSION METER U508
