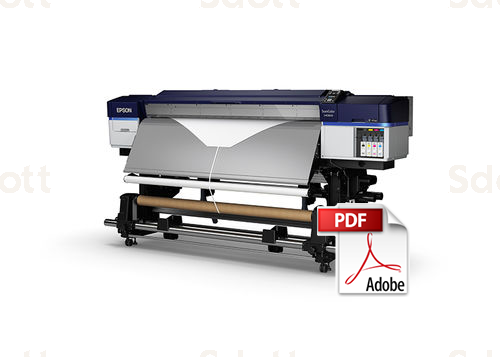

EPSON SureColor S40600/S40610/S40650/S40670 Parts Manual

In stock
SKU
EP-S40600-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name EPSON SureColor S40600/S40610/S40650/S40670 Parts Manual
Format PDF
PDF Archive 16.5M
Pages 12
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor S40600 S40610 S40650 S40670 Series



****** The following content is not included in the PDF manual, please use it online ******

ModelArticleReferenceDescription
SURECOLOR SC-S4060016806931SCREW KIT ASSY,ASP
SURECOLOR SC-S4060016548162ADJUSTER ASSY.,STAND
SURECOLOR SC-S4060016548183CASER,6043STNO
SURECOLOR SC-S4060016548194CASER,6043STYS
SURECOLOR SC-S4060016806918STAND LEFT ASSY AD,ASP
SURECOLOR SC-S4060017099028STAND LEFT ASSY AD,ASP
SURECOLOR SC-S4060016806929STAND RIGHT ASSY AD,ASP
SURECOLOR SC-S4060017099039STAND RIGHT ASSY AD,ASP
SURECOLOR SC-S40600165482010ADJUSTER,D-B3 10X75FR
SURECOLOR SC-S406001680680100COVER TOP LEFT ASSY ESL,ASP
SURECOLOR SC-S406001665556101COVER,SIDE,RIGHT,UPPER,B
SURECOLOR SC-S406001680682102COVER TOP RIGHT ASSY ESL,ASP
SURECOLOR SC-S406001680699103COVER,FRONT,RIGHT,64 ASSY ESL,ASP
SURECOLOR SC-S406001680683104COVER,MAINTENANCE,RIGHT,ASSY,ASP
SURECOLOR SC-S406001680681105COVER,MAINTENANCE,LEFT,ASSY.,ASP
SURECOLOR SC-S406001680701106COVER,SIDE,RIGHT,LOWER ASSY ESL,ASP
SURECOLOR SC-S406001680700107COVER,SIDE,LEFT,LOWER ASSY ESL,ASP
SURECOLOR SC-S406001680702108COVER,FRONT,LEFT,64 ASSY ESL,ASP
SURECOLOR SC-S406001665557109COVER,TOP,PANEL,B SDOTT.COM
SURECOLOR SC-S40600168070711STAY STAND SUB ASSY,ASP
SURECOLOR SC-S406001665555110COVER,SIDE,LEFT,UPPER,B
SURECOLOR SC-S406001552909111COVER,IH
SURECOLOR SC-S406001665560112COVER,MAINTENANCE,B
SURECOLOR SC-S406001665568113COVER,MAINTENANCE,HEAD,B
SURECOLOR SC-S406001552191115HOUSING,BASE,SUPPORT,RIGHT
SURECOLOR SC-S406001552194116HOUSING,BASE,SUPPORT,LEFT
SURECOLOR SC-S406001665566117CAP,COVER,TUBE,B
SURECOLOR SC-S406001552177119KNOB,LEVER
SURECOLOR SC-S40600168070612STAY STAND ASSY,ASP
SURECOLOR SC-S406001672889120LABEL,MODEL NAME
SURECOLOR SC-S406001665562125CAP,CR,ADJUST,B
SURECOLOR SC-S406001682129128LABEL,PRECISIONCORE,B
SURECOLOR SC-S406001677612129LABEL,PERIODIC MAINTENANCE
SURECOLOR SC-S406001662963131COVER,PRINTER,PROTECT,RIGHT
SURECOLOR SC-S406001662964132COVER,PRINTER,PROTECT,LEFT
SURECOLOR SC-S406001680710133COVER PRINTER ASSY ESL,ASP
SURECOLOR SC-S406001662969134COVER,SUB,RIGHT
SURECOLOR SC-S406001662970135COVER,SUB,LEFT
SURECOLOR SC-S406001662981136COVER,RIGHT,MIST
SURECOLOR SC-S40600168069415ACCESSORY KIT,ASP
SURECOLOR SC-S406002174251200BOARD ASSY.,MAIN
SURECOLOR SC-S406002138619201HARNESS
SURECOLOR SC-S406002130945202HARNESS
SURECOLOR SC-S406002130944203HARNESS
SURECOLOR SC-S406002142891204BOARD ASSY.,MAIN
SURECOLOR SC-S406002142883205BOARD ASSY.,SUB
SURECOLOR SC-S406002138603206HARNESS
SURECOLOR SC-S406002143593207HARNESS
SURECOLOR SC-S406002138605208HARNESS
SURECOLOR SC-S406002168583210BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S406002138596211HARNESS
SURECOLOR SC-S406002138598212HARNESS
SURECOLOR SC-S406002138614213HARNESS
SURECOLOR SC-S406002138618214HARNESS
SURECOLOR SC-S406002142882217BOARD ASSY.,SUB
SURECOLOR SC-S406002142879218BOARD ASSY.,SUB
SURECOLOR SC-S406002139319219FAN SET. DC (PROPELLER TYPE)
SURECOLOR SC-S406002174036220BOARD ASSY.,PANEL
SURECOLOR SC-S406002143596222HARNESS
SURECOLOR SC-S406002154132223BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S406002143594224HARNESS
SURECOLOR SC-S406002149057225BOARD ASSY.,SUB
SURECOLOR SC-S406002169990227FAN SET. DC(PROPELLER TYPE)
SURECOLOR SC-S406002142889228BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S406002175355229BOARD ASSY.,SUB
SURECOLOR SC-S406002170607230HARNESS,DC
SURECOLOR SC-S406002170609231HARNESS,RELAY,SUB-J
SURECOLOR SC-S406002170611232HARNESS,RELAY,HEATER,3
SURECOLOR SC-S406002175354233BOARD ASSY.,SUB
SURECOLOR SC-S406002170614234HARNESS,RELAY,1
SURECOLOR SC-S406001680677501SCALE,PF ASSY ESL,ASP
SURECOLOR SC-S406002171014502CABLE,FRONT,COVER,LEFT
SURECOLOR SC-S406001673176503FULL,MAINTENANCE OPEN ASSY.CF06,ESL,ASP
SURECOLOR SC-S406002171016504CABLE,FRONT,COVER,RIGHT
SURECOLOR SC-S406001673177505INK LOCK,MAINTENANCE,ASSY.CF06,ESL,ASP
SURECOLOR SC-S406001706645506CARRIAGE ASSY.A, ESL,CE44 ASP
SURECOLOR SC-S406001710086506CARRIAGE ASSY.A, ESL,CE44 ASP
SURECOLOR SC-S406001480133507PULLEY,DRIVEN
SURECOLOR SC-S406001480177508BOARD ASSY.,ENCODER
SURECOLOR SC-S406001662705509BELT,CR
SURECOLOR SC-S406002143464510PHOTO INTERRUPTER
SURECOLOR SC-S40600FA06092511PRINT HEAD,IA522V-9,ASP
SURECOLOR SC-S406002171913512BOARD ASSY.,INK MARK,B
SURECOLOR SC-S406002109393513BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-S406002158133514HARNESS,CR,ENCODER
SURECOLOR SC-S406002142289515HARNESS,IMS
SURECOLOR SC-S406002158134516HARNESS,PW
SURECOLOR SC-S406002171011517CABLE,SENSOR,PG
SURECOLOR SC-S406002174252518BOARD ASSY.,SUB
SURECOLOR SC-S406001680697519OIL PAD ASSY ESL.,ASP
SURECOLOR SC-S406001680679520FRAME APG ASSY ESL,ASP
SURECOLOR SC-S406001710362520FRAME APG ASSY ESL,ASP
SURECOLOR SC-S406001680690521COVER,HEATER,TOP,REAR ASSY ESL,ASP
SURECOLOR SC-S406001680689523AFTER HEATER ASSY ESL,ASP
SURECOLOR SC-S406001680698525PANEL ASSY ESL,ASP
SURECOLOR SC-S406001717396525PANEL ASSY ESL,ASP
SURECOLOR SC-S406001684361526POROUS PAD,FLASHING BOX.,ASSY ESL,ASP
SURECOLOR SC-S406001694912527FLASHING BOX.,Assy.A,CE44 ESL,ASP
SURECOLOR SC-S406001680684528IH ASSY.,R ESL,ASP
SURECOLOR SC-S406001575095529SEAL RUBBER,JOINT.,ASP
SURECOLOR SC-S406001680705530CLOTH WIPER CARRIAGE,ASSY ESL,ASP
SURECOLOR SC-S406001680704532PUMP,CAP,ASSY.,ESL.,ASP
SURECOLOR SC-S406001710084532PUMP,CAP,ASSY.,ESL.,ASP
SURECOLOR SC-S406001680686533TUBEASSYA CE44 ESL,ASP
SURECOLOR SC-S406001706325534DUCT,CR ASSY.,R ESL.,A.ASP
SURECOLOR SC-S406001574106535HARNESS,HEAD ASSY,ASP
SURECOLOR SC-S406001574107536HARNESS,HEAD ASSY,C,ASP
SURECOLOR SC-S406001662703537SCALE,CR
SURECOLOR SC-S406001680708538FAN ASSY ESL,ASP
SURECOLOR SC-S406001574122539HEATER,PAPER GUIDE,FRONT,ASP
SURECOLOR SC-S406001559726540SEAL,IMS
SURECOLOR SC-S406002139305541CABLE,THERMISTOR
SURECOLOR SC-S406002169091542MOTOR ASSY.,PF
SURECOLOR SC-S406002170578543BOARD ASSY.,ENCODER,PF
SURECOLOR SC-S406002170930544HARNESS,PF,ENCORDER
SURECOLOR SC-S406002170931546HARNESS,SENSOR,PE
SURECOLOR SC-S406002170576547MOTOR,ASSY.,CR
SURECOLOR SC-S406002130110548MOTOR ASSY.,ASF,SUB
SURECOLOR SC-S406002139286549CABLE,MOTOR,APG
SURECOLOR SC-S406001673000550FAN SET.DC,ASSY ASP
SURECOLOR SC-S406001559635552COVER,CR
SURECOLOR SC-S406001559650553SPACER,CR,B
SURECOLOR SC-S406001559681554SHEET,GUIDE RAIL,TUBE,LOWER
SURECOLOR SC-S406001664858555TIMING BELT,PF
SURECOLOR SC-S406001680709556MEDIA EDGE PLATE ASSY ESL,ASP
SURECOLOR SC-S406002139279559CABLE,RELAY,FRONT,COVER,LEFT
SURECOLOR SC-S406002174478560CABLE,RELAY,MAINTENANCE COVER,LEFT
SURECOLOR SC-S406002158128561HARNESS,PANEL
SURECOLOR SC-S406002142331562HARNESS
SURECOLOR SC-S406002158129563HARNESS,CRCM1
SURECOLOR SC-S406002139289564CABLE,SENSOR,CR
SURECOLOR SC-S406002158139565HARNESS,CR
SURECOLOR SC-S406002139297566CABLE,RELAY,MOTOR,PF
SURECOLOR SC-S406002171010567CABLE,SENSOR,MANUAL RELEASE
SURECOLOR SC-S406002171009568CABLE,RELAY,FAN
SURECOLOR SC-S406002139304569CABLE,RELAY,FAN,B
SURECOLOR SC-S406002170935572CABLE,RELAY,HEATER,B
SURECOLOR SC-S406002170934575CABLE,RELAY,THERMISTOR
SURECOLOR SC-S406002170594576HARNESS,RELAY,MOTOR,1
SURECOLOR SC-S406002170596577HARNESS,RELAY,ENCODER,2
SURECOLOR SC-S406002138609578HARNESS
SURECOLOR SC-S406002138610579HARNESS
SURECOLOR SC-S406002170599580HARNESS,RELAY,SENSOR,3
SURECOLOR SC-S406002138612581HARNESS
SURECOLOR SC-S406002138613582HARNESS
SURECOLOR SC-S406001664850583TAPE,HEATER WIRE,FASTEN
SURECOLOR SC-S406001581618595SHEET,PROTECT,INK
SURECOLOR SC-S406001602678598SHEET,PROTECT,INK,B
SURECOLOR SC-S406001680676604PULLEY,ROLLER,PF ASSY ESL,ASP SDOTT
SURECOLOR SC-S406001685414615SUB SHAFT,SLIDER ASSY ,ASP
SURECOLOR SC-S406002169089617FAN ASSY.,CR
SURECOLOR SC-S406002153099618HARNESS
SURECOLOR SC-S406002169335622HARNESS,RELAY,CR MOTOR COOLING FAN
SURECOLOR SC-S406002169336623HARNESS,RELAY,CR MOTOR
SURECOLOR SC-S406002170925624THERMISTOR,CR
SURECOLOR SC-S406001662690625DETECTOR PLATE,THERMISTOR
SURECOLOR SC-S406001680687626TUBEASSYB CE44 ESL,ASP
SURECOLOR SC-S406001680688627SUB BUFFER ASSY,CE44 ESL,ASP
SURECOLOR SC-S406002170927628CABLE,SENSOR,TENSION
SURECOLOR SC-S406001662819629ANTISTATIC CLOTH,EJ
SURECOLOR SC-S406002170923630CABLE,SENSOR,NIP
SURECOLOR SC-S406002150441631MOTOR ASSY.,WIPER
SURECOLOR SC-S406002170924632CABLE,MOTOR,NIP
SURECOLOR SC-S406002175356633BOARD ASSY.,SUB
SURECOLOR SC-S406002170604634HARNESS,RELAY,2
SURECOLOR SC-S406002152327635FAN ASSY.,DRYING
SURECOLOR SC-S406002170606636HARNESS,RELAY,FAN2
SURECOLOR SC-S406002170933637CABLE,HEATER,SENSOR,RELAY
SURECOLOR SC-S406002170932638CABLE,HEATER,SENSOR
SURECOLOR SC-S406002170612639HARNESS,RELAY,HEATER,1
SURECOLOR SC-S406002170613640HARNESS,RELAY,HEATER,2
SURECOLOR SC-S406002170598641HARNESS,RELAY,ENCODER,3
SURECOLOR SC-S406001662767642FASTEN PLATE,ROLLER,DRIVEN
SURECOLOR SC-S406002170601643HARNESS,RELAY,SUB-H
SURECOLOR SC-S406002170602644HARNESS,RELAY,AC,1
SURECOLOR SC-S406002170603645HARNESS,RELAY,SUB
SURECOLOR SC-S406002170605646HARNESS,RELAY,FAN1
SURECOLOR SC-S406002170608647HARNESS,RELAY,PSH-C
SURECOLOR SC-S406002170610648HARNESS,RELAY,AC,2
SURECOLOR SC-S406001670304649ROLLER,DRIVEN,B
SURECOLOR SC-S406001706672650COVER,HEAD,CR ASSY,A.ASP
SURECOLOR SC-S406001665553651DUMMY,HEAD
SURECOLOR SC-S406001690512652COIL SPRING ASSY ESL,ASP
SURECOLOR SC-S406001574337NON FIGGREASE,G-81
SURECOLOR SC-S406001516265NON FIGGREASE,G-84
SURECOLOR SC-S406001680696NON FIGGUIDE DRIVER,FR,IS,MAIN ASSY,ASP
SURECOLOR SC-S406001685924NON FIGINK CART.BOXED,BK,PIG'T,781C,T890,700,AS
SURECOLOR SC-S406001685925NON FIGINK CART.BOXED,C,PIG'T,781C,T890,700,AS
SURECOLOR SC-S406001685926NON FIGINK CART.BOXED,M,PIG'T,781C,T890,700,AS
SURECOLOR SC-S406001685927NON FIGINK CART.BOXED,Y,PIG'T,781C,T890,700,AS
SURECOLOR SC-S406001476228NON FIGJETRAS JP-D300S
SURECOLOR SC-S406001673002NON FIGLUBRICATION KIT CE30 ASP
SURECOLOR SC-S406001521154NON FIGOIL,O-17 SDOTT.COM
SURECOLOR SC-S406001640645NON FIGSONIC TENSION METER U508


Related Products
Check items to add to the cart or

  1. EPSON SureColor S50600 S50610 S50670 S70600 S70670 Service Manual

    EPSON SureColor S50600 S50610 S50670 S70600 S70670 Service Manual
    $9.90
    Compare

  2. EPSON S30600 S30670 S40600 S40670 S50600 S50670 S60600 S60670 S70600 S70670 S80600 S80670 Print Head - FA06092 / FA06151 / FA06171

    EPSON S30600 S30670 S40600 S40670 S50600 S50670 S60600 S60670 S70600 S70670 S80600 S80670 Print Head - FA06092 / FA06151 / FA06171
    $2,210.00
    Compare

  3. EPSON F7000 F7100 F7200 F9200 B7000 S30600 S50600 S70600 F7070 F7170 F7270 F9270 B7070 S30670 S50670 S70670 CR Scale - 1574120

    EPSON F7000 F7100 F7200 F9200 B7000 S30600 S50600 S70600 F7070 F7170 F7270 F9270 B7070 S30670 S50670 S70670 CR Scale - 1574120
    $132.00
    Compare

  4. EPSON SureColor SC-S50600/S50610/ S70600/S70610 Pump Cap Assy/Cleaning Unit - 1834255 / 1740520 / 1652408

    EPSON SureColor SC-S50600/S50610/ S70600/S70610 Pump Cap Assy/Cleaning Unit - 1834255 / 1740520 / 1652408
    $375.00
    Compare

  5. EPSON Surecolor S30600/S40600/S50600/ S60600/S70600/S80600 CR Encoder - 2208696 / 1480177

    EPSON Surecolor S30600/S40600/S50600/ S60600/S70600/S80600 CR Encoder - 2208696 / 1480177
    $9.98
    Compare

Default Category

    All CategoriesClose
    EPSON SureColor S40600/S40610/S40650/S40670 Parts Manual
