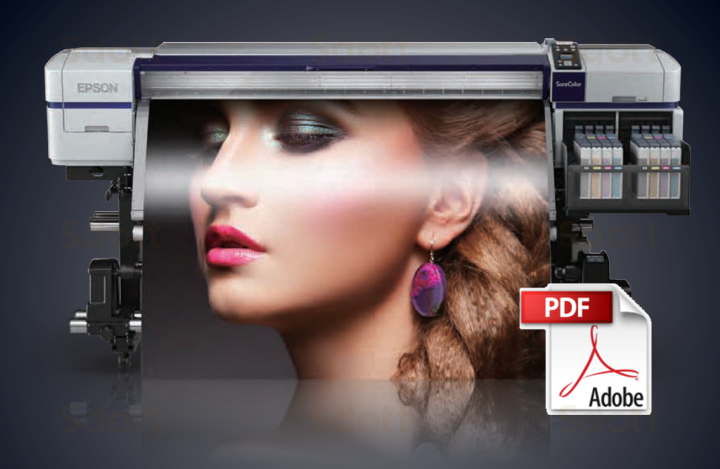

main product photo

EPSON SureColor S30600/S30610/S30670 Parts Manual

In stock
SKU
EP-S30600-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name EPSON SureColor S30600/S30610/S30670 Parts Manual
Format PDF
PDF Archive 17.7M
Pages 12
Type SERVICE or PARTS MANUAL
Compatible Model Epson SureColor S30600 S30610 S30670



****** The following content is not included in the PDF manual, please use it online ******

ModelArticleReferenceDescription
SURECOLOR SC-S3060015741081SCREW ASSY,ASP
SURECOLOR SC-S3060015595732ADJUSTER ASSY.
SURECOLOR SC-S3060015606633CASTER,P60HG
SURECOLOR SC-S3060015606644CASTER,P60HGS
SURECOLOR SC-S3060015597965STAND,TOP,RIGHT
SURECOLOR SC-S3060016233405STAND,TOP,RIGHT
SURECOLOR SC-S3060015598006STAND,TOP,LEFT
SURECOLOR SC-S3060016233426STAND,TOP,LEFT
SURECOLOR SC-S3060015837578STAND,LEFT ASSY ESL ASP
SURECOLOR SC-S3060015837599STAND,RIGHT ASSY ESL ASP
SURECOLOR SC-S306001574096100COVER,TOP,LEFT,ASSY,ASP
SURECOLOR SC-S306001552189101COVER,SIDE,RIGHT,UPPER
SURECOLOR SC-S306001574097102COVER,TOP,RIGHT,ASSY,ASP
SURECOLOR SC-S306001574098103COVER,FRONT,RIGHT,64, ASSY,ASP
SURECOLOR SC-S306001610084103COVER,FRONT,RIGHT,64, ASSY,ASP
SURECOLOR SC-S306001574099104COVER,MAINTENANCE,RIGHT,ASSY,ASP
SURECOLOR SC-S306001574100105COVER,MAINTENANCE,LEFT,ASSY,ASP
SURECOLOR SC-S306001574114106COVER SIDE RIGHT DOWN ASSY ESL,ASP
SURECOLOR SC-S306001574115107COVER SIDE LEFT DOWN ASSY ESL,ASP
SURECOLOR SC-S306001574268108COVER FRONT LEFT ASSY ESL ASP
SURECOLOR SC-S306001552188109COVER,TOP,PANEL
SURECOLOR SC-S306001552192110COVER,SIDE,LEFT,UPPER
SURECOLOR SC-S306001552909111COVER,IH
SURECOLOR SC-S306001552912112COVER,MAINTENANCE
SURECOLOR SC-S306001552914113COVER,MAINTENANCE,HEAD
SURECOLOR SC-S306001559808114COVER,PRINTER,SUPPORT,64
SURECOLOR SC-S306001552191115HOUSING,BASE,SUPPORT,RIGHT
SURECOLOR SC-S306001552194116HOUSING,BASE,SUPPORT,LEFT
SURECOLOR SC-S306001552916117CAP,COVER,TUBE
SURECOLOR SC-S306001552177119KNOB,LEVER
SURECOLOR SC-S306001562849120LABEL,MODEL NAME,B
SURECOLOR SC-S306001568973121LABEL,PERIODIC MAINTENANCE,B
SURECOLOR SC-S306001560601125CAP,CR,ADJUST
SURECOLOR SC-S306002130944200HARNESS
SURECOLOR SC-S306002138619201HARNESS
SURECOLOR SC-S306002130945202HARNESS
SURECOLOR SC-S306002142890203BOARD ASSY.,MAIN
SURECOLOR SC-S306002142891204BOARD ASSY.,MAIN
SURECOLOR SC-S306002142883205BOARD ASSY.,SUB
SURECOLOR SC-S306002138603206HARNESS
SURECOLOR SC-S306002138604207HARNESS
SURECOLOR SC-S306002138605208HARNESS
SURECOLOR SC-S306002138621209HARNESS
SURECOLOR SC-S306002142888210BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S306002138596211HARNESS
SURECOLOR SC-S306002138598212HARNESS
SURECOLOR SC-S306002138614213HARNESS
SURECOLOR SC-S306002138618214HARNESS
SURECOLOR SC-S306002138620215HARNESS
SURECOLOR SC-S306002138622216HARNESS
SURECOLOR SC-S306002142882217BOARD ASSY.,SUB
SURECOLOR SC-S306002142879218BOARD ASSY.,SUB
SURECOLOR SC-S306002139319219FAN SET. DC (PROPELLER TYPE)
SURECOLOR SC-S306002142892220BOARD ASSY.,PANEL
SURECOLOR SC-S306001574085500ROLLER ASSY.,DRIVEN,ASP
SURECOLOR SC-S306001574089501SCALE,PF ASSY,ASP
SURECOLOR SC-S306001574090502PRINTER,COVER,OPEN ASSY ESL,ASP
SURECOLOR SC-S306001574111503FULL,MAINTENANCE OPEN ASSY ESL,ASP
SURECOLOR SC-S306001574091504INK LOCK,P COVER, HOME,ASSY ESL,ASP
SURECOLOR SC-S306001574112505INK LOCK,MAINTENANCE, HOME,ASSY ESL,ASP
SURECOLOR SC-S306001574113506CARRIAGE ASSY ESL,ASP
SURECOLOR SC-S306001606044506CARRIAGE ASSY ESL,ASP
SURECOLOR SC-S306001619895506CARRIAGE ASSY ESL,ASP
SURECOLOR SC-S306001586755506Replace: 1606044
SURECOLOR SC-S306001480133507PULLEY,DRIVEN
SURECOLOR SC-S306001480177508BOARD ASSY.,ENCODER
SURECOLOR SC-S306001559657509BELT,CR
SURECOLOR SC-S306002143464510PHOTO INTERRUPTER
SURECOLOR SC-S30600FA06010511PRINT HEAD,IA522V-1
SURECOLOR SC-S30600FA06030511PRINT HEAD,IA522V-1
SURECOLOR SC-S306002084550512BOARD ASSY.,INK MARK
SURECOLOR SC-S306002109393513BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-S306002142288514HARNESS,CR,ENCODER
SURECOLOR SC-S306002142289515HARNESS,IMS
SURECOLOR SC-S306002142290516HARNESS,PW
SURECOLOR SC-S306002158134516HARNESS,PW
SURECOLOR SC-S306002139290517CABLE,SENSOR,PG
SURECOLOR SC-S306002142881518BOARD ASSY.,SUB
SURECOLOR SC-S306001574110519OIL PAD,ASSY ESL,ASP
SURECOLOR SC-S306001574092520APG,ASSY ESL,ASP
SURECOLOR SC-S306001574093521PRE,HEATER,ASSY ESL,ASP
SURECOLOR SC-S306001562879522LABEL,SET,PRE HEATER
SURECOLOR SC-S306001574094523AFTER,HEATER,ASSY ESL,ASP
SURECOLOR SC-S306001562881524LABEL,SET,AFTER HEATER
SURECOLOR SC-S306001574095525PANEL ASSY ESL,ASP
SURECOLOR SC-S306001574116526POROUS PAD,FLASH BOX,ASSY ESL,ASP
SURECOLOR SC-S306001574102527FLASHING BOX ASSY,ASP
SURECOLOR SC-S306001574103528Replace: 1598977
SURECOLOR SC-S306001598977528Replace: 1610938
SURECOLOR SC-S306001610938528HOLDER,IC.,ASSY ESL,ASP
SURECOLOR SC-S306001624705528HOLDER,IC.,ASSY ESL,ASP
SURECOLOR SC-S306001575095529SEAL RUBBER,JOINT.,ASP
SURECOLOR SC-S306001574117530WIPER.,ASSY ESL,ASP
SURECOLOR SC-S306001598963531Replace: 1613445
SURECOLOR SC-S306001574118531POROUS PAD, CLEANER,WIPER.,ASSY ESL,ASP
SURECOLOR SC-S306001613445531POROUS PAD, CLEANER,WIPER.,ASSY ESL,ASP
SURECOLOR SC-S306001574104532PUMP,CAP.,ASSY ESL,ASP
SURECOLOR SC-S306001634024532PUMP,CAP.,ASSY ESL,ASP
SURECOLOR SC-S306001640558532PUMP,CAP.,ASSY ESL,ASP
SURECOLOR SC-S306001652381532PUMP,CAP.,ASSY ESL,ASP
SURECOLOR SC-S306001574105533Replace: 1599377
SURECOLOR SC-S306001599377533Replace: 1603567
SURECOLOR SC-S306001603567533Replace: 1631759
SURECOLOR SC-S306001631759533TUBE,INK SUPPLY.,ASSY ESL,ASP
SURECOLOR SC-S306001614491534DUCT,CR.,ASSY ESL,ASP
SURECOLOR SC-S306001651877534DUCT,CR.,ASSY ESL,ASP
SURECOLOR SC-S306001574119534Replace: 1587229
SURECOLOR SC-S306001587229534Replace: 1600955
SURECOLOR SC-S306001600955534Replace: 1610927
SURECOLOR SC-S306001610927534Replace: 1614491
SURECOLOR SC-S306001574106535HARNESS,HEAD ASSY,ASP
SURECOLOR SC-S306001574107536HARNESS,HEAD ASSY,C,ASP
SURECOLOR SC-S306001574120537SCALE,CR,ASP
SURECOLOR SC-S306002139052538FAN ASSY.,ABSORPTION
SURECOLOR SC-S306001574122539HEATER,PAPER GUIDE,FRONT,ASP
SURECOLOR SC-S306001559726540SEAL,IMS
SURECOLOR SC-S306002139305541CABLE,THERMISTOR
SURECOLOR SC-S306001574125542MOTOR ASSY.,PF,ASP
SURECOLOR SC-S306002133325543BOARD ASSY.,ENCODER,PF
SURECOLOR SC-S306002142296544HARNESS,PF,ENCORDER
SURECOLOR SC-S306001574101545PUSH RIVET,P6060W ASSY,ASP
SURECOLOR SC-S306002142297546HARNESS,SENSOR,PE
SURECOLOR SC-S306002139095547MOTOR ASSY.,CR
SURECOLOR SC-S306002130110548MOTOR ASSY.,ASF,SUB
SURECOLOR SC-S306002139286549CABLE,MOTOR,APG
SURECOLOR SC-S306001574109550FAN SET.DC,ASP
SURECOLOR SC-S306001532885551JOINT,CAP,B
SURECOLOR SC-S306001559635552COVER,CR
SURECOLOR SC-S306001559650553SPACER,CR,B
SURECOLOR SC-S306001559681554SHEET,GUIDE RAIL,TUBE,LOWER
SURECOLOR SC-S306001559690555TIMING BELT,PF
SURECOLOR SC-S306001559725556Replace: 1587902
SURECOLOR SC-S306001562843557LABEL,CAUTION,P-COVER,RIGHT
SURECOLOR SC-S306001562845558LABEL,CAUTION,P-COVER,LEFT
SURECOLOR SC-S306002139279559CABLE,RELAY,FRONT,COVER,LEFT
SURECOLOR SC-S306002139282560CABLE,RELAY,MAINTENANCE COVER,LEFT
SURECOLOR SC-S306002142276561HARNESS,PANEL
SURECOLOR SC-S306002142331562HARNESS
SURECOLOR SC-S306002142278563HARNESS,CRCM1
SURECOLOR SC-S306002139289564CABLE,SENSOR,CR
SURECOLOR SC-S306002142295565HARNESS,CR
SURECOLOR SC-S306002139297566CABLE,RELAY,MOTOR,PF
SURECOLOR SC-S306002139302567CABLE,SENSOR,MANUAL RELEASE
SURECOLOR SC-S306002139303568CABLE,RELAY,FAN
SURECOLOR SC-S306002139304569CABLE,RELAY,FAN,B
SURECOLOR SC-S306002139306570CABLE,RELAY,HEATER
SURECOLOR SC-S306002139307571CABLE,RELAY,PLATEN,HEATER
SURECOLOR SC-S306002139308572CABLE,RELAY,HEATER,B
SURECOLOR SC-S306002139309573CABLE,RELAY,THERMISTOR
SURECOLOR SC-S306002139310574CABLE,RELAY,THERMISTOR,B
SURECOLOR SC-S306002139311575CABLE,RELAY,THERMISTOR,C
SURECOLOR SC-S306002138606576HARNESS
SURECOLOR SC-S306002138607577HARNESS
SURECOLOR SC-S306002138609578HARNESS
SURECOLOR SC-S306002138610579HARNESS
SURECOLOR SC-S306002138611580HARNESS
SURECOLOR SC-S306002138612581HARNESS
SURECOLOR SC-S306002138613582HARNESS
SURECOLOR SC-S306001559733583TAPE,HEATER WIRE,FASTEN
SURECOLOR SC-S306001575096NON FIGCLEANING STICK,(B)ASP
SURECOLOR SC-S306001575099NON FIGCLEANING STICK.,ASP
SURECOLOR SC-S306001574337NON FIGGREASE,G-81 SDOTT.COM
SURECOLOR SC-S306001580373NON FIGINK CART.BOXED,BK,PIG'T,1460,T688,700,AS
SURECOLOR SC-S306001580374NON FIGINK CART.BOXED,C,PIG'T,1460,T688,700,AS
SURECOLOR SC-S306001580375NON FIGINK CART.BOXED,M,PIG'T,1460,T688,700,AS
SURECOLOR SC-S306001580377NON FIGINK CART.BOXED,Y,PIG'T,1460,T688,700,AS
SURECOLOR SC-S306004121577NON FIGUSER'S GUIDE
