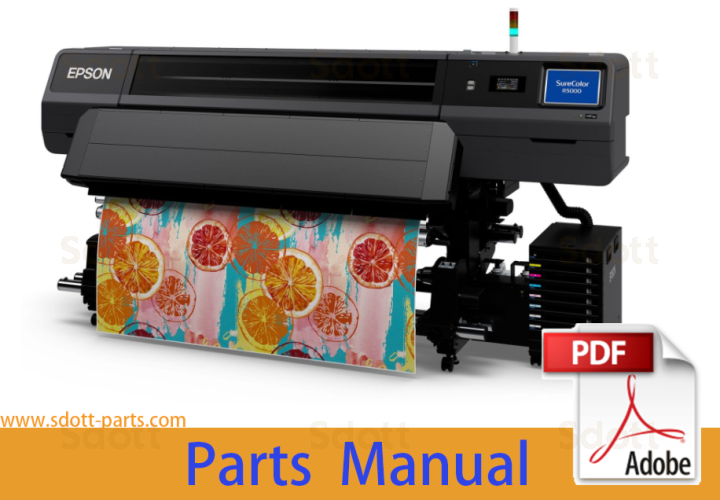

EPSON SureColor R5000 R5010 R5030 R5050 R5070 Parts Manual
In stock
SKU
EP-R5000-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor R5000 R5010 R5030 R5050 R5070 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 23.5 MB |
| Pages | 13 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor R5000 R5010 R5030 R5050 R5070 Series |
****** The following content is not included in the PDF manual ******
| SURECOLOR SC-R5000 | 1849165 | 3 | CASTER,GX60PS |
| SURECOLOR SC-R5000 | 1849166 | 4 | CASTER,GX60P |
| SURECOLOR SC-R5000 | 2207882 | 5 | HARNESS,JUMPER,CABLE,Euro |
| SURECOLOR SC-R5000 | 2208981 | 6 | HARNESS,USB,RIPS2 |
| SURECOLOR SC-R5000 | 1851234 | 8 | STAND LEFT ASSY ESL ,ASP |
| SURECOLOR SC-R5000 | 1851235 | 9 | STAND RIGHT ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1654820 | 10 | ADJUSTER,D-B3 10X75FR |
| SURECOLOR SC-R5000 | 1851223 | 101 | COVER INLET ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1861426 | 102 | COVER TOP RIGHT ASSY,A,ESL,ASP |
| SURECOLOR SC-R5000 | 1851232 | 103 | PRINTER COVER ASSY ESL, ASP |
| SURECOLOR SC-R5000 | 1851227 | 104 | DAMPER,MAINTENANCE,RIGHT,ASSY, ESL,ASP |
| SURECOLOR SC-R5000 | 1851228 | 105 | DAMPER,MAINTENANCE,LEFT,ASSY,ESL,ASP |
| SURECOLOR SC-R5000 | 1850702 | 106 | COVER LEFT LOWER ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1851233 | 107 | COVER TOP LEFT ASSY ESL, ASP |
| SURECOLOR SC-R5000 | 1851229 | 108 | DAMPER,PRINTER COVER,ASSY,ESL,ASP |
| SURECOLOR SC-R5000 | 1814168 | 109 | COVER,CORNER,LEFT,LOWER |
| SURECOLOR SC-R5000 | 1731959 | 11 | STAY STAND SUB ASSY,ASP |
| SURECOLOR SC-R5000 | 1814171 | 110 | COVER,CORNER,LEFT,UPPER |
| SURECOLOR SC-R5000 | 1814154 | 111 | COVER,CORNER,RIGHT,LOWER |
| SURECOLOR SC-R5000 | 1814150 | 112 | COVER,CORNER,RIGHT,UPPER |
| SURECOLOR SC-R5000 | 1814185 | 113 | KNOB,RELEASE |
| SURECOLOR SC-R5000 | 1808365 | 115 | LABEL,CAUTION,HOT,B |
| SURECOLOR SC-R5000 | 1832658 | 118 | LABEL,CAUTION,HOT |
| SURECOLOR SC-R5000 | 1851236 | 119 | COVER RIGHT LOWER ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1719501 | 12 | STAY,STAND,FRONT |
| SURECOLOR SC-R5000 | 1851239 | 120 | MICRO DOOR SWITCH ASSY ESL, ASP |
| SURECOLOR SC-R5000 | 1837970 | 121 | LABEL,MODEL NAME,R5000 |
| SURECOLOR SC-R5000 | 1622968 | 126 | LABEL,CAUTION,FINGER |
| SURECOLOR SC-R5000 | 2207233 | 201 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207686 | 202 | HARNESS,PSL1,MAIN,H10 |
| SURECOLOR SC-R5000 | 2207687 | 203 | HARNESS,PSL1,MAIN,H11 |
| SURECOLOR SC-R5000 | 2207681 | 204 | HARNESS,SUB-AC,PSL1,H2 |
| SURECOLOR SC-R5000 | 2200022 | 205 | FAN, COOLING,HDD |
| SURECOLOR SC-R5000 | 2208397 | 206 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-R5000 | 2207683 | 207 | HARNESS,SUB-FL1,PSL2,H7 |
| SURECOLOR SC-R5000 | 2207699 | 208 | HARNESS,RELAY,SUB-Z,H12 |
| SURECOLOR SC-R5000 | 2207700 | 209 | HARNESS,RELAY,SUB-Z,H13 |
| SURECOLOR SC-R5000 | 2207231 | 210 | BOARD ASSY.,MAIN |
| SURECOLOR SC-R5000 | 2207247 | 211 | BOARD ASSY.,DRV |
| SURECOLOR SC-R5000 | 2175354 | 233 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 1680677 | 501 | SCALE,PF ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1858698 | 502 | DUCT,SUPPLY,TUBE,ASSY,CH28,ESL,ASP |
| SURECOLOR SC-R5000 | 1850691 | 503 | DUCT,ONCR,ASSY,CH28,ESL,ASP |
| SURECOLOR SC-R5000 | 2207166 | 504 | THERMISTOR,PAPER GUIDE |
| SURECOLOR SC-R5000 | 1861823 | 505 | PUMP CAP,ASSY,CH28,B ESL,ASP |
| SURECOLOR SC-R5000 | 1863061 | 506 | PLATEN ASSY.A, ESL, ASP |
| SURECOLOR SC-R5000 | 2205252 | 507 | MOTOR ASSY.,CR |
| SURECOLOR SC-R5000 | 1850703 | 508 | SENSOR PE ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1850693 | 509 | KEEP CAP,ASSY,CH28, ESL,ASP |
| SURECOLOR SC-R5000 | 2143464 | 510 | PHOTO INTERRUPTER |
| SURECOLOR SC-R5000 | 1850694 | 511 | KEEP CAP,HEAD,ASSY,CH28, ESL,ASP |
| SURECOLOR SC-R5000 | 1850695 | 512 | CONNECT UNIT,MAIN SIDE,CH28, ESL,ASP |
| SURECOLOR SC-R5000 | 2109393 | 513 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-R5000 | 1850696 | 514 | PRESSURE PUMP,UNIT,CH28, ESL,ASP |
| SURECOLOR SC-R5000 | 1850697 | 515 | FLASHING BOX,UNIT,CH28, ESL,ASP |
| SURECOLOR SC-R5000 | 1850698 | 516 | CLOTH WIPER CARRIAGE,UNIT,CH28,ESL,ASP |
| SURECOLOR SC-R5000 | 1876959 | 516 | CLOTH WIPER CARRIAGE,UNIT,CH28,ESL,ASP |
| SURECOLOR SC-R5000 | 1861351 | 517 | INK EJECT SELECTOR,UNIT,CH28,B ESL,ASP |
| SURECOLOR SC-R5000 | 1850700 | 518 | WATER SELECTOR,UNIT,CH28,ESL,ASP |
| SURECOLOR SC-R5000 | 1851226 | 519 | PANEL ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1868405 | 520 | CR ASSY ESL,B,ASP |
| SURECOLOR SC-R5000 | 1824806 | 521 | TIMING BELT,CR |
| SURECOLOR SC-R5000 | 2205253 | 522 | FFC,IMS |
| SURECOLOR SC-R5000 | 2205254 | 523 | FFC,PW |
| SURECOLOR SC-R5000 | 2205255 | 524 | FFC,CR,ENCODER |
| SURECOLOR SC-R5000 | 2205256 | 525 | CABLE,DETECTOR,PG |
| SURECOLOR SC-R5000 | 2205257 | 526 | CABLE,DETECTOR,COVER,CR |
| SURECOLOR SC-R5000 | 2205258 | 527 | FFC,NP TEMPERATURE SENSOR |
| SURECOLOR SC-R5000 | 2206390 | 528 | CABLE,DETECT,DISPLACEMENT,SENSOR |
| SURECOLOR SC-R5000 | 2207235 | 529 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207237 | 530 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207239 | 531 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207690 | 532 | HARNESS,SUB,SUB-U,H19 |
| SURECOLOR SC-R5000 | 1851222 | 533 | APG MOTOR ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 2207739 | 534 | HARNESS,RELAY,SUB-X7 FAN,H184 |
| SURECOLOR SC-R5000 | 1850704 | 535 | TRAY LEAKAGE FRONT ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 2207689 | 536 | HARNESS,PNL,Speaker,H14 |
| SURECOLOR SC-R5000 | 1850705 | 537 | TRAY LEAKAGE SIDE ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 2139052 | 538 | FAN ASSY.,ABSORPTION |
| SURECOLOR SC-R5000 | 1851224 | 539 | COVER HEATER TOP REAR ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1850706 | 540 | DETECTOR RIGHT ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 2139305 | 541 | CABLE,THERMISTOR |
| SURECOLOR SC-R5000 | 2211419 | 542 | MOTOR ASSY.,PF,B |
| SURECOLOR SC-R5000 | 2170578 | 543 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-R5000 | 1850707 | 544 | MOUNTING PLATE SENSOR ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1850708 | 545 | POWER BOX HOME ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1851237 | 546 | DRY FAN ASSY,6pcs Set,ESL, ASP |
| SURECOLOR SC-R5000 | 2207703 | 547 | HARNESS,REALY,THERMISTOR,H200 |
| SURECOLOR SC-R5000 | 2182572 | 548 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-R5000 | 1851238 | 549 | LED ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 2207740 | 550 | HARNESS,MAIN,PNL,FFC,F1 |
| SURECOLOR SC-R5000 | 1851231 | 551 | HOLDER SUPPLY ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 2205268 | 552 | CABLE,DETECTOR,MANUAL RELEASE |
| SURECOLOR SC-R5000 | 2205272 | 553 | CABLE,MOTOR,NIP |
| SURECOLOR SC-R5000 | 1851240 | 554 | UNDER SUB X FULL BOX ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1664858 | 555 | TIMING BELT,PF |
| SURECOLOR SC-R5000 | 2206630 | 556 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2205273 | 557 | HARNESS,DETECTOR,PE |
| SURECOLOR SC-R5000 | 2207763 | 560 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207684 | 562 | HARNESS,RELAY,SUB-AC,H311 |
| SURECOLOR SC-R5000 | 2207720 | 563 | HARNESS,RELAY,SUB-X,H312 |
| SURECOLOR SC-R5000 | 2207715 | 564 | HARNESS,SUB-FL2,SUB-X2,H309 |
| SURECOLOR SC-R5000 | 2207717 | 565 | HARNESS,RELAY,PLATEN HEATER HS,H304 |
| SURECOLOR SC-R5000 | 2207719 | 566 | HARNESS,RELAY,SUB-X2 FAN,H169 |
| SURECOLOR SC-R5000 | 2207716 | 567 | HARNESS,RELAY,SUB-X1,H314 |
| SURECOLOR SC-R5000 | 2207680 | 568 | HARNESS,SUB-AC,INLET,H1 |
| SURECOLOR SC-R5000 | 2207682 | 569 | HARNESS,SUB-FL1,INLET,H6 |
| SURECOLOR SC-R5000 | 2207685 | 570 | HARNESS,SUB-AC,OUTLET,H5 |
| SURECOLOR SC-R5000 | 2207251 | 571 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207802 | 572 | HARNESS ASSY.,LEAK |
| SURECOLOR SC-R5000 | 2207707 | 573 | HARNESS,REALY,STIFFEN FAN,H337 |
| SURECOLOR SC-R5000 | 2207704 | 574 | HARNESS,REALY,STIFFEN THERMISTOR,H318 |
| SURECOLOR SC-R5000 | 1850709 | 575 | POWER BOX FULL ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 2205275 | 577 | HARNESS,INTERMIT,DRYINGFAN,L |
| SURECOLOR SC-R5000 | 2205274 | 578 | HARNESS,INTERMIT,DRYINGFAN,S |
| SURECOLOR SC-R5000 | 2205276 | 579 | HARNESS,INTERMIT,HUMIDITY-SENSOR |
| SURECOLOR SC-R5000 | 2207693 | 580 | HARNESS,SUB-C,SUB-R,H43 |
| SURECOLOR SC-R5000 | 1851242 | 581 | UNDER SUB X HOME BOX ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 2205266 | 582 | HARNESS,MOTOR,APG |
| SURECOLOR SC-R5000 | 1709542 | 584 | JOINT,INK EJ,FLASHING BOX |
| SURECOLOR SC-R5000 | 1854834 | 585 | TUBE,INK EJECT,OP, ASP |
| SURECOLOR SC-R5000 | 1860791 | 586 | TORSION SPRING,CLAMP,4.4 |
| SURECOLOR SC-R5000 | 2207706 | 589 | HARNESS,REALY,STIFFEN FAN,H119 |
| SURECOLOR SC-R5000 | 2207722 | 592 | HARNESS,RELAY,SUB-FL2,H332 |
| SURECOLOR SC-R5000 | 2207726 | 593 | HARNESS,RELAY,SUB-X3,H330 |
| SURECOLOR SC-R5000 | 2207727 | 594 | HARNESS,RELAY,PLATEN HEATER FC,H336 |
| SURECOLOR SC-R5000 | 2207729 | 595 | HARNESS,RELAY,SUB-X4 FAN,H324 |
| SURECOLOR SC-R5000 | 2207765 | 596 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 1814022 | 597 | SCALE,CR |
| SURECOLOR SC-R5000 | 1813980 | 598 | COVER,CR |
| SURECOLOR SC-R5000 | 2207724 | 599 | HARNESS,RELAY,SUB-X3 FAN,H322 |
| SURECOLOR SC-R5000 | 2205270 | 600 | HARNESS,ENCORDER,PF |
| SURECOLOR SC-R5000 | 2176012 | 601 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| SURECOLOR SC-R5000 | 2207718 | 602 | HARNESS,RELAY,PLATEN HEATER HS,H301 |
| SURECOLOR SC-R5000 | 2207723 | 603 | HARNESS,RELAY,PLATEN HEATER HC,H302 |
| SURECOLOR SC-R5000 | 2207752 | 604 | HARNESS,DRV-M,SUB-K,FFC,F28 |
| SURECOLOR SC-R5000 | 2207728 | 605 | HARNESS,RELAY,PLATEN HEATER FC,H303 |
| SURECOLOR SC-R5000 | 2207730 | 606 | HARNESS,RELAY,PLATEN HEATER FS,H305 |
| SURECOLOR SC-R5000 | 2205265 | 607 | HARNESS,DETECTOR,HP,CR |
| SURECOLOR SC-R5000 | 2204863 | 609 | INDICATOR LIGHT, ASSY |
| SURECOLOR SC-R5000 | 1814033 | 610 | SHEET,GUIDE RAIL,TUBE,FRONT |
| SURECOLOR SC-R5000 | 1814034 | 611 | SHEET,GUIDE RAIL,TUBE,REAR |
| SURECOLOR SC-R5000 | 2207768 | 612 | BOARD ASSY.,DRV |
| SURECOLOR SC-R5000 | 2199868 | 613 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207741 | 615 | HARNESS,MAIN,DRV-H,FFC,F3 |
| SURECOLOR SC-R5000 | 2203867 | 616 | FAN,COOLING,06025SS-24Q-AL-DE |
| SURECOLOR SC-R5000 | 2203868 | 617 | FAN,COOLING,08025SS-24Q-AL-D5 |
| SURECOLOR SC-R5000 | 2207742 | 618 | HARNESS,MAIN,DRV-H,FFC,F4 |
| SURECOLOR SC-R5000 | 2207743 | 619 | HARNESS,MAIN,DRV-H,FFC,F5 |
| SURECOLOR SC-R5000 | 2207744 | 620 | HARNESS,MAIN,DRV-H,FFC,F6 |
| SURECOLOR SC-R5000 | 2207747 | 621 | HARNESS,MAIN,SUB-Y,FFC,F15 |
| SURECOLOR SC-R5000 | 2207678 | 622 | HARNESS,POWER,ASSY |
| SURECOLOR SC-R5000 | 2207676 | 623 | HARNESS,SIGNAL,ASSY, DRV-M |
| SURECOLOR SC-R5000 | 2207696 | 624 | HARNESS SIGNAL ASSY NIP |
| SURECOLOR SC-R5000 | 2207677 | 625 | HARNESS,SIGNAL,ASSY,SUB-Z |
| SURECOLOR SC-R5000 | 2207679 | 626 | HARNESS,AC,ASSY |
| SURECOLOR SC-R5000 | 2207674 | 627 | HARNESS,MOTOR,ASSY |
| SURECOLOR SC-R5000 | 2170927 | 628 | CABLE,SENSOR,TENSION |
| SURECOLOR SC-R5000 | 2207675 | 629 | HARNESS,ENCODER,ASSY |
| SURECOLOR SC-R5000 | 2207673 | 630 | HARNESS,SIGNAL,ASSY,SUB-Y |
| SURECOLOR SC-R5000 | 2150441 | 631 | MOTOR ASSY.,WIPER |
| SURECOLOR SC-R5000 | 2207735 | 632 | HARNESS,RELAY,SUB-X6 FAN,H179 |
| SURECOLOR SC-R5000 | 2175356 | 633 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207736 | 634 | HARNESS,SUB-X6,SUB-X7,H180 |
| SURECOLOR SC-R5000 | 2207732 | 635 | HARNESS,SUB-X5,SUB-X6,H320 |
| SURECOLOR SC-R5000 | 2207731 | 636 | HARNESS,RELAY,SUB-X5 FAN,H326 |
| SURECOLOR SC-R5000 | 2206671 | 637 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207725 | 638 | HARNESS,RELAY,SUB-X4,SUB-X5,H333 |
| SURECOLOR SC-R5000 | 2207721 | 639 | HARNESS,RELAY,SUB-FL2,H313 |
| SURECOLOR SC-R5000 | 2207712 | 640 | HARNESS,RELAY,PRE HEATER,H189 |
| SURECOLOR SC-R5000 | 2207714 | 641 | HARNESS,RELAY,SUB-X2,SUB-X3,H166 |
| SURECOLOR SC-R5000 | 2209000 | 642 | BOARD ASSY.,SUB |
| SURECOLOR SC-R5000 | 2207713 | 643 | HARNESS,RELAY,SUB-X1 FAN,H160 |
| SURECOLOR SC-R5000 | 2207702 | 644 | HARNESS,SUB-Z,SUB-X,H117 |
| SURECOLOR SC-R5000 | 2207710 | 645 | HARNESS,REALY,REEL,H136 |
| SURECOLOR SC-R5000 | 2207709 | 646 | HARNESS,SUB-Z,SUB-F ROLL,H135 |
| SURECOLOR SC-R5000 | 2207701 | 647 | HARNESS,RELAY,PSL2,H328 |
| SURECOLOR SC-R5000 | 2207745 | 648 | HARNESS,MAIN,SUB-Z,FFC,F13 |
| SURECOLOR SC-R5000 | 1670304 | 649 | ROLLER,DRIVEN,B |
| SURECOLOR SC-R5000 | 2207746 | 650 | HARNESS,MAIN,SUB-Z,FFC,F14 |
| SURECOLOR SC-R5000 | 2207691 | 651 | HARNESS,MAIN,DRV-M,H15 |
| SURECOLOR SC-R5000 | 2207748 | 652 | HARNESS,MAIN,DRV-M,FFC,F24,F26 |
| SURECOLOR SC-R5000 | 2207749 | 653 | HARNESS,MAIN,DRV-M,FFC,F25,F27 |
| SURECOLOR SC-R5000 | 2206314 | 654 | HARNESS,MAINTENANCE,SENSOR,LEFT |
| SURECOLOR SC-R5000 | 2206313 | 655 | HARNESS,MAINTENANCE,SENSOR,RIGHT |
| SURECOLOR SC-R5000 | 2207695 | 656 | HARNESS,RELAY,INTERLOCK,H,H198 |
| SURECOLOR SC-R5000 | 2207692 | 658 | HARNESS,DRV-M,SUB-C,H42 |
| SURECOLOR SC-R5000 | 1813991 | 660 | COVER,P.C.B.,LAF2 |
| SURECOLOR SC-R5000 | 2205259 | 661 | HEAD,FFC |
| SURECOLOR SC-R5000 | 2205260 | 662 | HEAD,FFC,B |
| SURECOLOR SC-R5000 | 2205261 | 663 | HEAD,FFC,C |
| SURECOLOR SC-R5000 | 2205262 | 664 | HEAD,FFC,D |
| SURECOLOR SC-R5000 | 2205263 | 665 | P.C.B.,FFC |
| SURECOLOR SC-R5000 | 2205264 | 666 | P.C.B.,FFC,B |
| SURECOLOR SC-R5000 | 2209684 | 667 | HARNESS,RELAY,WASTE LIQUID, SENS, H93 |
| SURECOLOR SC-R5000 | 2209548 | 668 | HARNESS,INTERMIT,AFTER ROUTE |
| SURECOLOR SC-R5000 | 2084550 | 670 | BOARD ASSY.,INK MARK |
| SURECOLOR SC-R5000 | 1795092 | 671 | BOARD ASSY.,ENCODER,CR |
| SURECOLOR SC-R5000 | 2207801 | 672 | DISPLACEMENT SENSOR,KE401-M120-R1 |
| SURECOLOR SC-R5000 | 2205802 | 673 | SOLENOID VALVE,V06A-778 |
| SURECOLOR SC-R5000 | 1836933 | 674 | CLOTH CATCHER ASSY ESL,ASP |
| SURECOLOR SC-R5000 | 1866507 | NON FIG | HORN,U |
| SURECOLOR SC-R5000 | 1476228 | NON FIG | JETRAS JP-D300S |
| SURECOLOR SC-R5000 | 1748666 | NON FIG | LABEL,CAUTION,EMERGENCY MESSAGE,H |
| SURECOLOR SC-R5000 | 1859269 | NON FIG | LFP INK LC T48F500 (1.5L) (CDC) |
| SURECOLOR SC-R5000 | 1859270 | NON FIG | LFP INK LM T48F600 (1.5L) (CDC) |
| SURECOLOR SC-R5000 | 1859267 | NON FIG | LFP INK M T48F300 (1.5L) (CDC) |
| SURECOLOR SC-R5000 | 1859272 | NON FIG | LFP INK ML T48F800 (1.5L) (CDC) |
| SURECOLOR SC-R5000 | 1859271 | NON FIG | LFP INK OP T48F700 (1.5L) (CDC) |
| SURECOLOR SC-R5000 | 1859265 | NON FIG | LFP INK RS BK T48F100 (1.5L) (CDC) |
| SURECOLOR SC-R5000 | 1859266 | NON FIG | LFP INK RS C T48F200 (1.5L) (CDC) |
| SURECOLOR SC-R5000 | 1859268 | NON FIG | LFP INK Y T48F400 (1.5L) (CDC) |
| SURECOLOR SC-R5000 | 1640645 | NON FIG | SONIC TENSION METER U508 |
| SURECOLOR SC-P9500 | 1775777 | 717 | COVER,WARNING LIGHT |
| SURECOLOR SC-P9500 | 1821522 | 720 | FLANGE,UNIT,L2 SUB,ESL,ASP |
| SURECOLOR SC-P9500 | 1821523 | 723 | STACKER UNIT 44,CH13,ESL,ASP |
| SURECOLOR SC-P9500 | 1821525 | 724 | EJ,DRIVEN,MOTOR,UNIT SUB,ESL,ASP |
| SURECOLOR SC-P9500 | 2199599 | 725 | HARNESS,COVER,IH,RIGHT |
| SURECOLOR SC-P9500 | 2199600 | 726 | HARNESS,COVER,IH,LEFT |
| SURECOLOR SC-P9500 | 2185996 | 727 | BOARD ASSY.,PANEL |
| SURECOLOR SC-P9500 | 2199973 | 728 | SPEAKER,HARNESS,ASSEMBLY |
| SURECOLOR SC-P9500 | 1794444 | 729 | SENSOR ASSY,COVER,IH |
| SURECOLOR SC-P9500 | 1771413 | NON FIG | CLEANING CARTRIDGE 20 |
| SURECOLOR SC-P9500 | 1662469 | NON FIG | CLEANING CARTRIDGE,200 |
| SURECOLOR SC-P9500 | 1507278 | NON FIG | CLEANING PG ADJUSTMENT JIG |
| SURECOLOR SC-P9500 | 1662470 | NON FIG | DRAIN CARTRIDGE |
| SURECOLOR SC-P9500 | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) |
| SURECOLOR SC-P9500 | 1033657 | NON FIG | GREASE G-45 |
| SURECOLOR SC-P9500 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| SURECOLOR SC-P9500 | 1409257 | NON FIG | GREASE G-74 |
| SURECOLOR SC-P9500 | 1516265 | NON FIG | GREASE,G-84 |
| SURECOLOR SC-P9500 | 1476228 | NON FIG | JETRAS JP-D300S |
| SURECOLOR SC-P9500 | 1827064 | NON FIG | JIGU,PAPER EJECT,ADJUST |
| SURECOLOR SC-P9500 | 1521154 | NON FIG | OIL,O-17 |
| SURECOLOR SC-P9500 | 1424364 | NON FIG | P-THICK SENSOR POSITION JIG |
| SURECOLOR SC-P9500 | 1282355 | NON FIG | PAPER THICKNESS POSITION TOOL |
| SURECOLOR SC-P9500 | 1543007 | NON FIG | PG HEIGHT ADJUSTMENT JIG 1.55 |
| SURECOLOR SC-P9500 | 1507506 | NON FIG | PG HEIGHT ADJUSTMENT JIG 1.65 |
| SURECOLOR SC-P9500 | 1507277 | NON FIG | PG HEIGHT ADJUSTMENT JIG 1.75 |
| SURECOLOR SC-P9500 | 1640645 | NON FIG | SONIC TENSION METER U508 |
Validate your login
