EPSON SureColor P700 P703 P704 P706 Parts Manual
In stock
SKU
EP-P700-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor P700 P703 P704 P706 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 9.94M |
| Pages | 4 |
| Version | Rev.01 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON Surecolor P700 P703 P704 P706 |
EPSON SureColor P700 P703 P704 P706 Parts Manual
****** The following content is not included in the PDF manual, please use it online ******

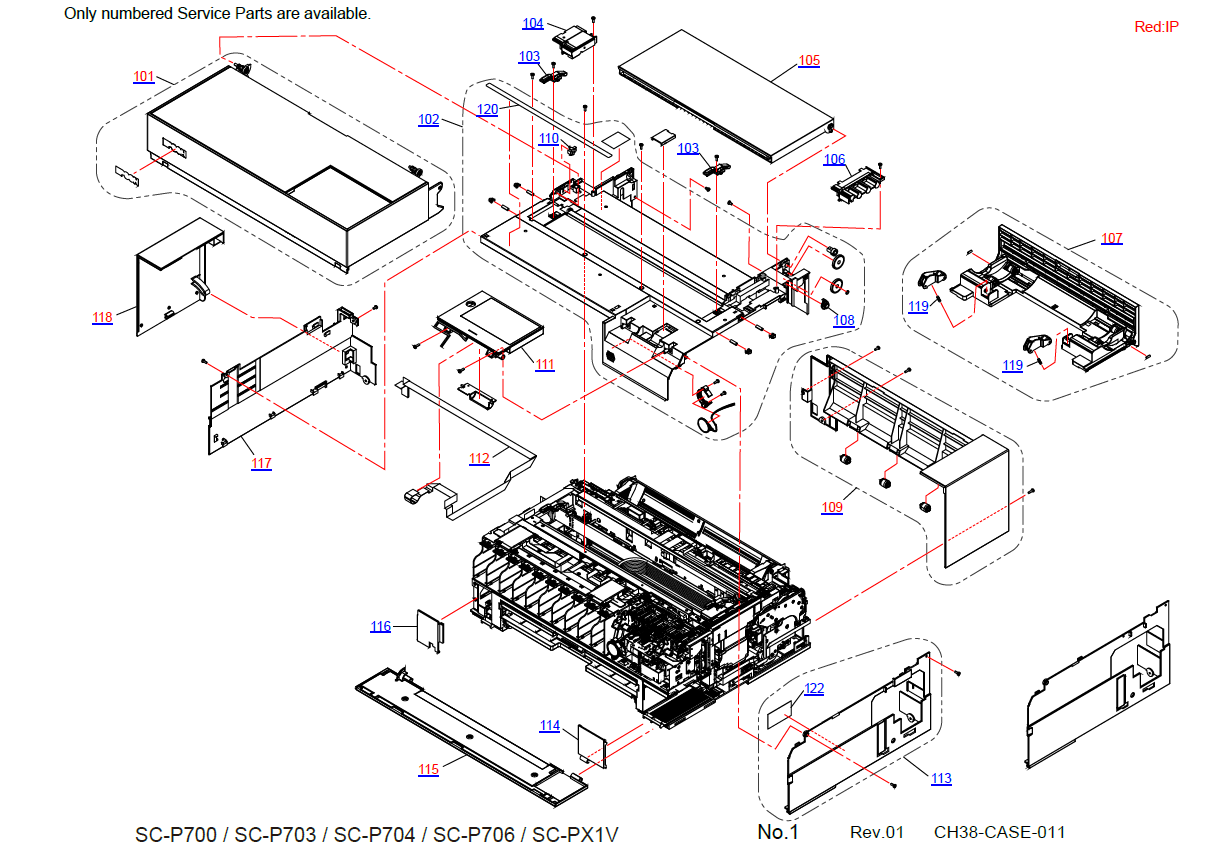

| SURECOLOR SC-P700 | 1835777 | 101 | COVER,PRINTER,ASSY,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1851883 | 102 | HOUSING UPPER UNIT,B,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1806804 | 103 | BAND,COVER,PRINTER |
| SURECOLOR SC-P700 | 1837669 | 104 | HOLDER,DAMPER,LEFT,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1835332 | 105 | PAPER SUPPORT ASSY,IEI,CH38 |
| SURECOLOR SC-P700 | 1835772 | 105 | PAPER SUPPORT,REAR,ASSY,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1837668 | 106 | HOLDER,DAMPER.RIGHT,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1835776 | 107 | ROLL UNIT,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1694151 | 108 | DAMPER,00ZB |
| SURECOLOR SC-P700 | 1835775 | 109 | COVER,REAR,ASSY,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 2150699 | 110 | LEAF SENSOR,P599 |
| SURECOLOR SC-P700 | 1835779 | 111 | PANEL UNIT,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 2204127 | 112 | HARNESS |
| SURECOLOR SC-P700 | 1838902 | 113 | HOUSING,SIDE,RIGHT,ASSY,CH38,ASP |
| SURECOLOR SC-P700 | 1806790 | 114 | COVER,MTB |
| SURECOLOR SC-P700 | 1835774 | 115 | COVER,STACKER,ASSY,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1806800 | 116 | HOUSING,SIDE,FRONT |
| SURECOLOR SC-P700 | 1807125 | 117 | HOUSING,SIDE,LEFT |
| SURECOLOR SC-P700 | 1806787 | 118 | COVER,REAR,LEFT |
| SURECOLOR SC-P700 | 1807085 | 119 | EXTENSION SPRING,0.34 |
| SURECOLOR SC-P700 | 1820467 | 120 | LABEL,INK,POSITION |
| SURECOLOR SC-P700 | 1836833 | 122 | PORUSPAD,HOUSING,SIDE,RIGHT |
| SURECOLOR SC-P700 | 1835778 | 200 | MAIN BOARD ASSY,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1835783 | 300 | POWER SUPPLY ASSY,C,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1837672 | 350 | HOLDER,HIGH VOLTAGE,P.C.B,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 2194158 | 351 | WIRELESS LAN USB MODULE |
| SURECOLOR SC-P700 | 2185664 | 352 | CR CONTACT MODULE |
| SURECOLOR SC-P700 | 2147998 | 353 | BOARD ASSY.,SUB |
| SURECOLOR SC-P700 | 2204303 | 354 | CABLE,IS,SUB |
| SURECOLOR SC-P700 | 1835785 | 501 | ASF & HOPPER UNIT,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1862181 | 501 | ASF & HOPPER UNIT,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1866121 | 501 | ASF & HOPPER UNIT,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1871098 | 501 | ASF & HOPPER UNIT,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1837659 | 502 | HOLDER,ROTARY ENCODER,AP,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1837843 | 503 | HOUSING LOWER UNIT,IEI, CH38,ASP |
| SURECOLOR SC-P700 | 2020393 | 504 | DETECTOR,LEAF,B2 |
| SURECOLOR SC-P700 | 2176802 | 506 | BOARD ASSY.,SNS |
| SURECOLOR SC-P700 | 1807769 | 507 | POROUS PAD,IS,LOWER,B |
| SURECOLOR SC-P700 | 1837682 | 508 | HOLDER,POROUS PAD,P.G,L,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1835784 | 509 | STACKER,ASSY,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1806818 | 510 | STACKER,SUB,FRONT |
| SURECOLOR SC-P700 | 2204979 | 511 | MOTOR,ASSY.,CR |
| SURECOLOR SC-P700 | 1837661 | 512 | SHAFT,RELEASE,ASSY,IEI.ASP |
| SURECOLOR SC-P700 | 1837660 | 513 | HOLDER LEVER PE,ASSY,IEI,ASP |
| SURECOLOR SC-P700 | 1806798 | 514 | FOOT |
| SURECOLOR SC-P700 | 1807103 | 515 | EXTENSION SPRING,0.82 |
| SURECOLOR SC-P700 | 1837671 | 516 | TRAY,FRONT,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1837675 | 517 | HOLDER,STAR WHEEL,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 2204978 | 518 | MOTOR,ASSY.,PF |
| SURECOLOR SC-P700 | 1837666 | 519 | ROLLER,ASSY.,EJ,REAR,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1806819 | 520 | ELECTRODE PLATE,PAPER GUIDE,FRONT |
| SURECOLOR SC-P700 | 1863081 | 520 | ELECTRODE PLATE,PAPER GUIDE,FRONT |
| SURECOLOR SC-P700 | 1807071 | 521 | POROUS PAD,PAPER GUIDE,FRONT,UPPER |
| SURECOLOR SC-P700 | 1856726 | 521 | POROUS PAD,PAPER GUIDE,FRONT,UPPER |
| SURECOLOR SC-P700 | 1837665 | 522 | ROLLER,ASSY.,EJ,FRONT,IEI.,ASP |
| SURECOLOR SC-P700 | 1837664 | 523 | ROLLER,PF,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1806754 | 524 | TIMING BELT,PF |
| SURECOLOR SC-P700 | 2203692 | 525 | BOARD ASSY.,SUB |
| SURECOLOR SC-P700 | 1806751 | 526 | SCALE,PF |
| SURECOLOR SC-P700 | 1837662 | 527 | PAPER GUIDE,UPPER,SUPPORT,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1837670 | 528 | TRAY,ASSIST,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 2204141 | 529 | HARNESS |
| SURECOLOR SC-P700 | 1859520 | 530 | CARRIAGE ASSY,B,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 2143464 | 531 | PHOTO INTERRUPTER |
| SURECOLOR SC-P700 | 2203700 | 532 | BOARD ASSY.,SENSOR |
| SURECOLOR SC-P700 | 1806960 | 533 | BELT,CR |
| SURECOLOR SC-P700 | 2197925 | 534 | CONECTOR,CSIC |
| SURECOLOR SC-P700 | 1841411 | 535 | INK SYSTEM,IEI,CH38,B:ASP |
| SURECOLOR SC-P700 | 1837673 | 536 | APG UNIT,IEI, CH38,ASP |
| SURECOLOR SC-P700 | 1856724 | 536 | APG UNIT,IEI, CH38,ASP |
| SURECOLOR SC-P700 | 1837677 | 537 | FRAME MOTOR IS ASSY,IEI,ASP |
| SURECOLOR SC-P700 | 1837667 | 538 | PULLEY,DRIVEN,B,ASSY.,IEI,ASP |
| SURECOLOR SC-P700 | 1866149 | 538 | PULLEY,DRIVEN,B,ASSY.,IEI,ASP |
| SURECOLOR SC-P700 | 1837663 | 540 | PAPER GUIDE,UPPER,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1806770 | 541 | TORSION SPRING,1.88 |
| SURECOLOR SC-P700 | 1831542 | 542 | EXTENSION SPRING,0.78 |
| SURECOLOR SC-P700 | 1809955 | 543 | EXTENSION SPRING,0.96 |
| SURECOLOR SC-P700 | 1837679 | 544 | HOLDER,INK,DETECTION,ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1807735 | 545 | PROTECTION SHEET,POROUS PAD,D |
| SURECOLOR SC-P700 | 1807729 | 546 | POROUS PAD,INK,DETECTION,D |
| SURECOLOR SC-P700 | 2204320 | 547 | CABLE,FFC,INK EJECT |
| SURECOLOR SC-P700 | 2204316 | 548 | CABLE,CRCM |
| SURECOLOR SC-P700 | 2204317 | 549 | CABLE,CRCM,B |
| SURECOLOR SC-P700 | 1849187 | 564 | FILTER,COOLING FAN |
| SURECOLOR SC-P700 | 1849144 | 565 | SHEET,BLOCK,DUST |
| SURECOLOR SC-P700 | FA61001 | 700 | DISC-PRINT HEAD,HOK (FA61001) |
| SURECOLOR SC-P700 | FA61002 | 700 | DISC-PRINT HEAD,HOK (FA61001) |
| SURECOLOR SC-P700 | 1835773 | 701 | CABLE,HEAD,ASSY,IEI,CH38,ASP |
| SURECOLOR SC-P700 | 2184028 | 702 | COOLING,FAN |
| SURECOLOR SC-P700 | 1837674 | 703 | DECOMP ASSY,IEI, CH38,ASP |
| SURECOLOR SC-P700 | 1847115 | 704 | INK SUPPLY ASSY,NON EHC,B, IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1861658 | 704 | INK SUPPLY ASSY,NON EHC,B, IEI,CH38,ASP |
| SURECOLOR SC-P700 | 1806975 | 705 | SCALE,CR |
| SURECOLOR SC-P700 | 1535532 | 706 | TORSION SPRING,0.39 |
| SURECOLOR SC-P700 | 1807109 | 707 | TRAY,BD |
| SURECOLOR SC-P700 | 1861623 | 707 | TRAY,BD |
| SURECOLOR SC-P700 | 1806730 | 708 | COVER,P.C.B,LED |
| SURECOLOR SC-P700 | 1827907 | 709 | LED LIGHT ASSY,IEI |
| SURECOLOR SC-P700 | 1806968 | 711 | CLAMP,FFC,TUBE |
| SURECOLOR SC-P700 | 1837680 | 712 | GUIDE,TUBE,CR ASSY,IEI.,ASP |
| SURECOLOR SC-P700 | 1855693 | 712 | GUIDE,TUBE,CR ASSY,IEI.,ASP |
