EPSON SureColor P6000 P6050 P6070 Parts Manual
In stock
SKU
EP-P6000-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor P6000 P6050 P6070 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.8M |
| Pages | 7 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor P6000 P6050 P6070 Series |
****** The following content is not included in the PDF manual, please use it online ******

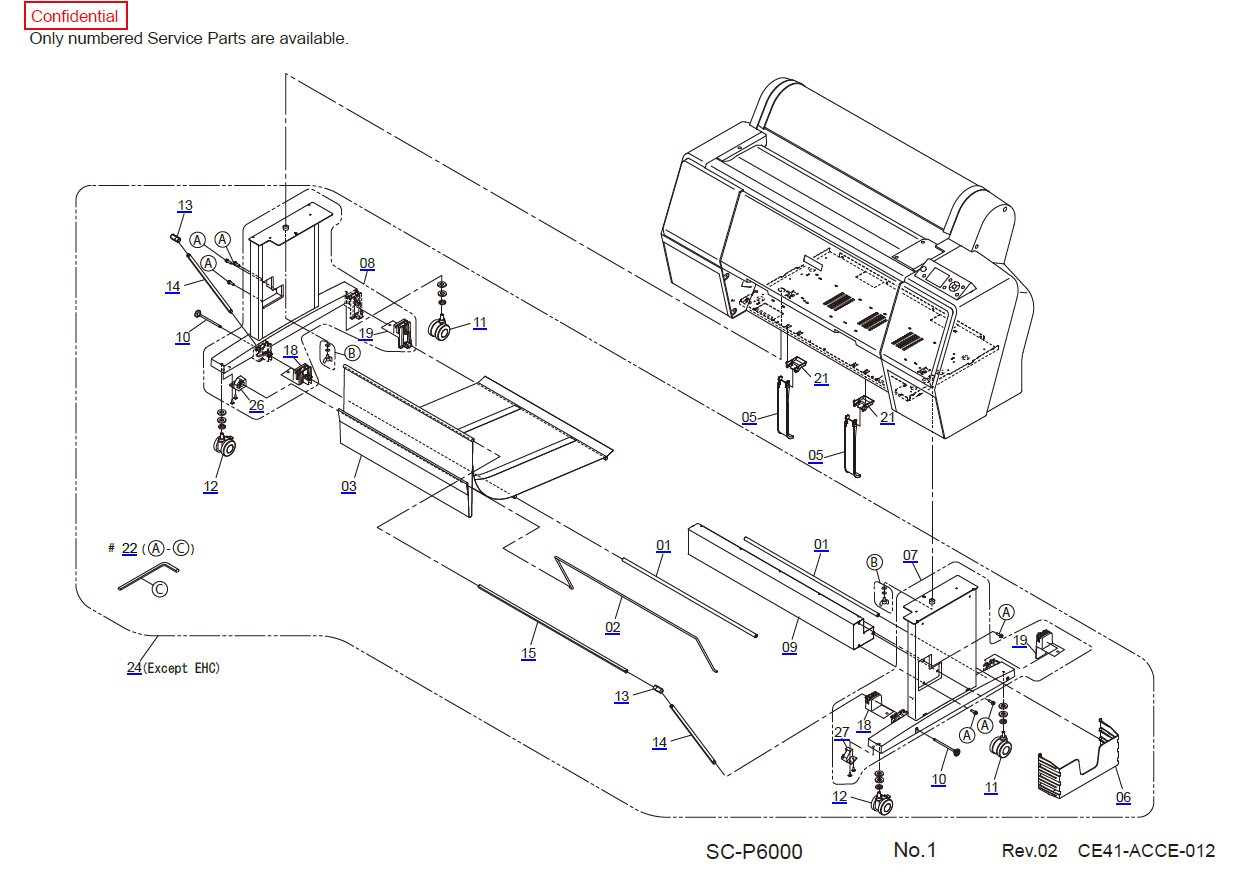

| Model | Article | Reference | Description |
| SURECOLOR SC-P6000 | 1507323 | 1 | PIPE,BASKET,CENTER,24,ASP |
| SURECOLOR SC-P6000 | 1507324 | 2 | ARM,BASKET,24,ASP |
| SURECOLOR SC-P6000 | 1507321 | 3 | BASKET ASSY.,24,ASP |
| SURECOLOR SC-P6000 | 1507815 | 5 | PAPER GUIDE BOTTOM,ASP |
| SURECOLOR SC-P6000 | 1507307 | 6 | BOX,MANUAL,ASP |
| SURECOLOR SC-P6000 | 1520204 | 7 | STAND RIGHT UNIT,B,ASP |
| SURECOLOR SC-P6000 | 1695473 | 7 | STAND RIGHT UNIT,B,ASP |
| SURECOLOR SC-P6000 | 1520205 | 8 | STAND LEFT UNIT,B,ASP |
| SURECOLOR SC-P6000 | 1695474 | 8 | STAND LEFT UNIT,B,ASP |
| SURECOLOR SC-P6000 | 1686967 | 9 | STAY STAND ASSY.,24,ASP |
| SURECOLOR SC-P6000 | 1504195 | 10 | SHAFT,BASKET,ASSY,ASP |
| SURECOLOR SC-P6000 | 1504176 | 100 | SHAFT,COVER,IC,LEFT,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1504177 | 101 | SHAFT,COVER,IC,RIGHT,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1479991 | 102 | STOPPER,COVER,FRONT |
| SURECOLOR SC-P6000 | 1479983 | 103 | GROUNDING PLATE,ROLL |
| SURECOLOR SC-P6000 | 1504186 | 104 | COVER,FRONT,RIGHT,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1504187 | 105 | COVER,FRONT,LEFT,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1674420 | 107 | COVER ROLL ASSY.,24,C,ASP |
| SURECOLOR SC-P6000 | 1674397 | 108 | COVER,IC,RIGHT,UNIT,LD,ESL,ASP |
| SURECOLOR SC-P6000 | 1674399 | 109 | COVER,IC,LEFT,UNIT,LD,ESL,ASP |
| SURECOLOR SC-P6000 | 1499705 | 11 | CASTER,P-60-HT SDOTT>COM |
| SURECOLOR SC-P6000 | 1496118 | 110 | LABEL,ROLL PAPER SET,PAPER GUIDE LOWER |
| SURECOLOR SC-P6000 | 1507319 | 111 | COVER,FRONT,24,ASP |
| SURECOLOR SC-P6000 | 1476652 | 112 | LOGO PLATE,86.5X21.6 |
| SURECOLOR SC-P6000 | 1480012 | 113 | CATCH,STRIKER |
| SURECOLOR SC-P6000 | 1480009 | 114 | STRIKER,SENSOR |
| SURECOLOR SC-P6000 | 1507312 | 115 | COVER,FRONT,RIGHT,ASP |
| SURECOLOR SC-P6000 | 1507313 | 116 | COVER,FRONT,LEFT,ASP |
| SURECOLOR SC-P6000 | 1507311 | 117 | COVER,REAR,LEFT,ASP |
| SURECOLOR SC-P6000 | 1479986 | 118 | COVER,SIDE,ROLL,LEFT |
| SURECOLOR SC-P6000 | 1479985 | 119 | COVER,SIDE,ROLL,RIGHT |
| SURECOLOR SC-P6000 | 1499706 | 12 | CASTER,P-60-HTS |
| SURECOLOR SC-P6000 | 1479988 | 120 | COVER,TOP,BASE,SUPPORT,RIGHT |
| SURECOLOR SC-P6000 | 1507305 | 121 | COVER,ROLL,SUPPORT,RIGHT,ASP |
| SURECOLOR SC-P6000 | 1479982 | 122 | COVER,ROLL,SUPPORT,LEFT |
| SURECOLOR SC-P6000 | 1507308 | 13 | JOINT,PIPE,BASKET,FRONT,ASP |
| SURECOLOR SC-P6000 | 1480035 | 135 | COVER,MAINTENANCE,BOX |
| SURECOLOR SC-P6000 | 1633779 | 137 | LABEL,ULTRA CHROME INK,HD |
| SURECOLOR SC-P6000 | 1656212 | 138 | LABEL,MODEL NAME,J |
| SURECOLOR SC-P6000 | 1480107 | 139 | HANDLE |
| SURECOLOR SC-P6000 | 1507309 | 14 | PIPE,BASKET,FRONT,SIDE,ASP |
| SURECOLOR SC-P6000 | 1516909 | 140 | COVER,TOP,BASE,24,ASP |
| SURECOLOR SC-P6000 | 1682129 | 141 | LABEL,PRECISIONCORE,B |
| SURECOLOR SC-P6000 | 1656736 | 142 | COVER,LAN |
| SURECOLOR SC-P6000 | 1656733 | 143 | SHEET,DECORATION PLATE,24 |
| SURECOLOR SC-P6000 | 1507322 | 15 | PIPE,BASKET,UPPER,24,ASP |
| SURECOLOR SC-P6000 | 1481598 | 18 | HOLDER,PIPE,BASKET,FRONT |
| SURECOLOR SC-P6000 | 1481599 | 19 | HOLDER,PIPE,BASKET,REAR |
| SURECOLOR SC-P6000 | 5120516 | 20 | PAD,CR,B |
| SURECOLOR SC-P6000 | 2173642 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-P6000 | 2168575 | 201 | BOARD ASSY.,SUB |
| SURECOLOR SC-P6000 | 2168576 | 202 | BOARD ASSY.,SUB |
| SURECOLOR SC-P6000 | 1589427 | 203 | AID ASSY.,B,ASP |
| SURECOLOR SC-P6000 | 2168574 | 204 | BOARD ASSY.,SUB |
| SURECOLOR SC-P6000 | 1480306 | 21 | MOUNTING PLATE,PAPER GUIDE,BOTTOM |
| SURECOLOR SC-P6000 | 1514763 | 22 | SCREW ASSY.,ASP |
| SURECOLOR SC-P6000 | 1686968 | 24 | STAND,UNIT,24,ESL,ASP |
| SURECOLOR SC-P6000 | 1695469 | 24 | STAND,UNIT,24,ESL,ASP |
| SURECOLOR SC-P6000 | 1481615 | 26 | HOLDER,ARM,BASKET,LEFT |
| SURECOLOR SC-P6000 | 1481597 | 27 | HOLDER,ARM,BASKET,RIGHT |
| SURECOLOR SC-P6000 | 2168583 | 300 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-P6000 | 2119916 | 301 | HARNESS |
| SURECOLOR SC-P6000 | 2120026 | 302 | FAN ASSY. |
| SURECOLOR SC-P6000 | 2155242 | 303 | COOLING FAN,HDD |
| SURECOLOR SC-P6000 | 1513123 | 501 | GUIDE ROLL PAPER,L,UNIT,B,ESL,ASP |
| SURECOLOR SC-P6000 | 1695024 | 501 | GUIDE ROLL PAPER,L,UNIT,B,ESL,ASP |
| SURECOLOR SC-P6000 | 1507818 | 502 | MOUNTING PLATE COVER ROLL PAPER LEFT,ASP |
| SURECOLOR SC-P6000 | 1504202 | 503 | REWIND,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1695028 | 503 | REWIND,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1480327 | 504 | RAIL,GUIDE,ROLL PAPER |
| SURECOLOR SC-P6000 | 1674405 | 505 | SENSOR,PE.,UNIT,LL,24,ESL,ASP |
| SURECOLOR SC-P6000 | 2143464 | 506 | PHOTO INTERRUPTER |
| SURECOLOR SC-P6000 | 1541863 | 507 | CABLE,DETECTOR,HP,CR,ASP |
| SURECOLOR SC-P6000 | 1504175 | 508 | DETECTOR,PAPER THICKNESS,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1674400 | 509 | PANEL,UNIT,LL,ESL,ASP |
| SURECOLOR SC-P6000 | 2142271 | 510 | HARNESS,PANEL |
| SURECOLOR SC-P6000 | 1504198 | 511 | GUIDE,ROLL,PAPER,RIGHT,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1587842 | 512 | PULLEY,DRIVEN,UNIT,24,B,ESL,ASP |
| SURECOLOR SC-P6000 | 1550669 | 513 | SCALE,CR,24,C,ASP |
| SURECOLOR SC-P6000 | 1518708 | 514 | MOTOR ASSY.,CR.,ASP |
| SURECOLOR SC-P6000 | 1701871 | 515 | Ersetzt durch: 1708858 |
| SURECOLOR SC-P6000 | 1708858 | 515 | HOLDER,ASSY.,IC,RIGHT,LD,ESL.A,ASP |
| SURECOLOR SC-P6000 | 1701872 | 516 | HOLDER,ASSY.,IC,LEFT,LD,ESL.A,ASP |
| SURECOLOR SC-P6000 | 1708859 | 516 | HOLDER,ASSY.,IC,LEFT,LD,ESL.A,ASP |
| SURECOLOR SC-P6000 | 1504180 | 517 | PLUNGER,ASSY,ASP |
| SURECOLOR SC-P6000 | 2169170 | 518 | FFC,SUB-D,HOME |
| SURECOLOR SC-P6000 | 2169175 | 519 | FFC,SUB-D,FULL,24 |
| SURECOLOR SC-P6000 | 1674412 | 520 | CR,UNIT,LF,ESL,ASP |
| SURECOLOR SC-P6000 | 1695319 | 520 | CR,UNIT,LF,ESL,ASP |
| SURECOLOR SC-P6000 | 2171913 | 521 | BOARD ASSY.,INK MARK,B |
| SURECOLOR SC-P6000 | 1480170 | 522 | COVER,CR,MAIN |
| SURECOLOR SC-P6000 | F191151 | 523 | PRINT HEAD,IA0220-12,ASP |
| SURECOLOR SC-P6000 | 2142248 | 524 | HARNESS,HEAD,A |
| SURECOLOR SC-P6000 | 1521061 | 525 | HARNESS,HEAD,B,B,ASSY.,ASP |
| SURECOLOR SC-P6000 | 1674406 | 526 | SELECTOR,UNIT,LL,ESL,ASP |
| SURECOLOR SC-P6000 | 1504184 | 528 | SENSOR,COVER,FRONT,RIGHT,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1504251 | 529 | SENSOR,COVER,FRONT,LEFT,UNIT,24,ESL,ASP |
| SURECOLOR SC-P6000 | 1531123 | 530 | CLAMP,TUBE |
| SURECOLOR SC-P6000 | 1507820 | 531 | HOLDER TUBE,ASP |
| SURECOLOR SC-P6000 | 2142267 | 532 | HARNESS,DRV,RIGHT,UPPER |
| SURECOLOR SC-P6000 | 2142275 | 533 | HARNESS,CR |
| SURECOLOR SC-P6000 | 2142269 | 534 | HARNESS,DRV,RIGHT,LOWER |
| SURECOLOR SC-P6000 | 1504182 | 535 | TUBE ASSY.,SUPPLY,INK,B,ASP |
| SURECOLOR SC-P6000 | 1504250 | 536 | TUBE ASSY.,SPPLY,INK,A,24,ASP |
| SURECOLOR SC-P6000 | 1504191 | 537 | HOLDER,WHEEL,EJ,LOWER,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1504192 | 538 | COVER,CUTTER,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1520272 | 539 | CATCH,B |
| SURECOLOR SC-P6000 | 1504188 | 540 | PAPER,EJECTION,ROLLER,PE,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1546627 | 541 | FRAME,RAIL,CUTTER,UNIT,B,24,ESL,ASP |
| SURECOLOR SC-P6000 | 1498876 | 543 | GUIDE,COVER,ROLL PAPER,SUPPORT |
| SURECOLOR SC-P6000 | 1485681 | 544 | CLUMP,TUBE,DUCT |
| SURECOLOR SC-P6000 | 1480298 | 545 | CLIP,DUCT,INK EJECT,LARGE |
| SURECOLOR SC-P6000 | 1480299 | 546 | CLIP,DUCT,INK EJECT,SMALL |
| SURECOLOR SC-P6000 | 1467289 | 547 | POROUS PAD,PLATEN |
| SURECOLOR SC-P6000 | 1546294 | 548 | CABLE,FAN,RIGHT.S,ASP |
| SURECOLOR SC-P6000 | 1546296 | 549 | CABLE,FAN,MIDDLE.S,ASP |
| SURECOLOR SC-P6000 | 1541864 | 550 | HARNESS,MAINTENCANCE TANK,RIGHT,ASP |
| SURECOLOR SC-P6000 | 1504215 | 551 | PUMP ASSY.,PRESSURIZING,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1507310 | 552 | TUBE,PRESSURIZING,RIGHT,ASP |
| SURECOLOR SC-P6000 | 1507519 | 553 | TUBE,PRESSURIZING,LEFT,24,ASP |
| SURECOLOR SC-P6000 | 1220013 | 554 | LEAF SPRING,LOCK |
| SURECOLOR SC-P6000 | 1674403 | 555 | EJECT,GUIDE,UNIT,LL,ASP,ESL |
| SURECOLOR SC-P6000 | 1674407 | 556 | POROUS PAD ASSY.,INK EJECT,SC9MB,ASP |
| SURECOLOR SC-P6000 | 1505036 | 557 | MOTOR ASSY., RELEASE, ASP |
| SURECOLOR SC-P6000 | 1546299 | 558 | CABLE,MOTOR,RELEASE,24.S,ASP |
| SURECOLOR SC-P6000 | 2135422 | 559 | HARNESS |
| SURECOLOR SC-P6000 | 1504210 | 560 | APG,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1695036 | 560 | APG,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1541862 | 561 | CABLE,MOTOR,APG,ASP |
| SURECOLOR SC-P6000 | 2169167 | 562 | HARNESS,RELAY,SUB,B,UPPER |
| SURECOLOR SC-P6000 | 2169168 | 563 | HARNESS,RELAY,SUB,B,LOWER |
| SURECOLOR SC-P6000 | 2135418 | 564 | HARNESS |
| SURECOLOR SC-P6000 | 2169174 | 565 | HARNESS,RELAY,SUB,C,24 |
| SURECOLOR SC-P6000 | 2142249 | 566 | HARNESS,RELAY,AID |
| SURECOLOR SC-P6000 | 1674402 | 567 | PUMP,CAP,ASSY.,LF,ESL,ASP |
| SURECOLOR SC-P6000 | 1701325 | 567 | PUMP,CAP,ASSY.,LF,ESL,ASP |
| SURECOLOR SC-P6000 | 1715919 | 567 | PUMP,CAP,ASSY.,LF,ESL,ASP |
| SURECOLOR SC-P6000 | 1616679 | 568 | WIPER,ASSY A,ASP |
| SURECOLOR SC-P6000 | 2135419 | 569 | HARNESS |
| SURECOLOR SC-P6000 | 1546303 | 570 | CABLE,SENSOR,RELEASE.S,ASP |
| SURECOLOR SC-P6000 | 1507317 | 574 | COMBINATION GEAR,26,12.8,ASP |
| SURECOLOR SC-P6000 | 1507819 | 576 | PROTECTION PLATE FFC,ASP |
| SURECOLOR SC-P6000 | 1507817 | 578 | PULLEY PF,ASP |
| SURECOLOR SC-P6000 | 1518709 | 579 | MOTOR ASSY.,PF.,ASP |
| SURECOLOR SC-P6000 | 2133325 | 581 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-P6000 | 1521070 | 582 | HARNESS,ENCODER,PF,C.,ASP |
| SURECOLOR SC-P6000 | 1504181 | 583 | SCALE,PF,UNIT,ESL,ASP |
| SURECOLOR SC-P6000 | 1657495 | 584 | TIMING BELT,PF |
| SURECOLOR SC-P6000 | 1414002 | 585 | FLAT CLAMP,FCR-35 |
| SURECOLOR SC-P6000 | 1234048 | 586 | FLAT CLAMP,FCR-15 V0 |
| SURECOLOR SC-P6000 | 1234050 | 587 | FLAT CLAMP,FCR-45 V0 |
| SURECOLOR SC-P6000 | 1455139 | 589 | EDGE SADDLE,EDS-1208U |
| SURECOLOR SC-P6000 | 1283663 | 590 | E-RING,3,F/UC-3C |
| SURECOLOR SC-P6000 | 1081715 | 591 | PALALLEL PIN,1.5 |
| SURECOLOR SC-P6000 | 1480173 | 592 | HOLDER,SPRING,APG |
| SURECOLOR SC-P6000 | 2109393 | 593 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-P6000 | 1480177 | 595 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-P6000 | 1518317 | 596 | SEAL RUBBER,JOINT,ASP |
| SURECOLOR SC-P6000 | 1520273 | 597 | CATCH,SUPPORT |
| SURECOLOR SC-P6000 | 1480203 | 598 | MIDDLE FULCRUM,ROLLER,PF,UPPER |
| SURECOLOR SC-P6000 | 1581672 | 599 | HINGE ASSY.,SIDE |
| SURECOLOR SC-P6000 | 1504252 | 601 | HOLDER,WHEEL,EJ,LOWER,24,ASSY,ASP |
| SURECOLOR SC-P6000 | 1611382 | 603 | OIL PAD,MAIN SHAFT,CR,ASSY A.,ASP |
| SURECOLOR SC-P6000 | 1528412 | 605 | FRAME,PAPER GUIDE,UPPER,24,ASP |
| SURECOLOR SC-P6000 | 1481479 | 606 | COVER,CSIC,RIGHT SDOTT.COM |
| SURECOLOR SC-P6000 | 1674414 | 608 | HOLDER,CSIC,LEFT,ASSY.,ASP |
| SURECOLOR SC-P6000 | 1674416 | 609 | HOLDER,CSIC,RIGHT,ASSY.,ASP |
| SURECOLOR SC-P6000 | 1480340 | 610 | ATTACHMENT,GUIDE,ROLL PAPER,LEFT |
| SURECOLOR SC-P6000 | 1551039 | 620 | SPACER,LEVER,ADJUST,PG |
| SURECOLOR SC-P6000 | 2128017 | 621 | HARNESS,ENCODER,CR,C |
| SURECOLOR SC-P6000 | 1480135 | 630 | SUPPORT,HOLDER,PULLEY |
| SURECOLOR SC-P6000 | 1537878 | 705 | GUIDE PLATE ASSY.,TUBE |
| SURECOLOR SC-P6000 | 1480217 | 706 | DETECTION PLATE,PAPER THICKNESS |
| SURECOLOR SC-P6000 | 1674417 | 711 | OIL PAD ASSY.,ASP |
| SURECOLOR SC-P6000 | 2169172 | 712 | FFC,SENSOR,PW |
| SURECOLOR SC-P6000 | 2169173 | 713 | FFC,SENSOR,PE |
| SURECOLOR SC-P6000 | 2128016 | 714 | HARNESS,IMS,C |
| SURECOLOR SC-P6000 | 1662469 | NON FIG | CLEANING CARTRIDGE,200 |
| SURECOLOR SC-P6000 | 1507278 | NON FIG | CLEANING PG ADJUSTMENT JIG |
| SURECOLOR SC-P6000 | 1662470 | NON FIG | DRAIN CARTRIDGE |
| SURECOLOR SC-P6000 | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) |
| SURECOLOR SC-P6000 | 1033657 | NON FIG | GREASE G-45 |
| SURECOLOR SC-P6000 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| SURECOLOR SC-P6000 | 1409257 | NON FIG | GREASE G-74 |
| SURECOLOR SC-P6000 | 1516265 | NON FIG | GREASE,G-84 |
| SURECOLOR SC-P6000 | 1678302 | NON FIG | INK CART.BOXED,C,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678311 | NON FIG | INK CART.BOXED,GR,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678305 | NON FIG | INK CART.BOXED,LC,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678307 | NON FIG | INK CART.BOXED,LK,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678309 | NON FIG | INK CART.BOXED,LLK,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678308 | NON FIG | INK CART.BOXED,MK,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678310 | NON FIG | INK CART.BOXED,OR,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678301 | NON FIG | INK CART.BOXED,PK,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678312 | NON FIG | INK CART.BOXED,V,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678306 | NON FIG | INK CART.BOXED,VLM,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678303 | NON FIG | INK CART.BOXED,VM,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1678304 | NON FIG | INK CART.BOXED,Y,PIG'T,775C1,150,AS |
| SURECOLOR SC-P6000 | 1476228 | NON FIG | JETRAS JP-D300S |
| SURECOLOR SC-P6000 | 1521154 | NON FIG | OIL,O-17 SDOTT>COM |
| SURECOLOR SC-P6000 | 1424364 | NON FIG | P-THICK SENSOR POSITION JIG |
| SURECOLOR SC-P6000 | 1282355 | NON FIG | PAPER THICKNESS POSITION TOOL |
| SURECOLOR SC-P6000 | 1507506 | NON FIG | PG HEIGHT ADJUSTMENT JIG 1.65 |
| SURECOLOR SC-P6000 | 1507277 | NON FIG | PG HEIGHT ADJUSTMENT JIG 1.75 |
| SURECOLOR SC-P6000 | 1640645 | NON FIG | SONIC TENSION METER U508 |
Validate your login
