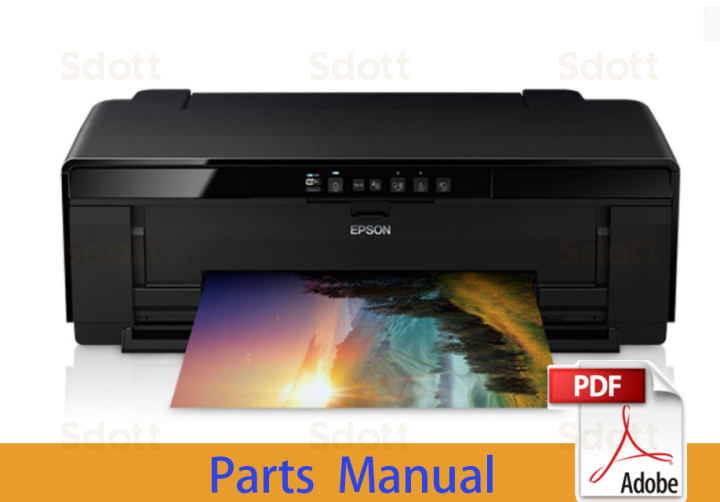

EPSON SureColor P400 P405 P406 P407 Parts Manual
In stock
SKU
EP-P400-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor P400 P405 P406 P407 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.2M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor P400 P405 P406 P407 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Model | Article | Reference | Description |
| SURECOLOR SC-P400 | 1544769 | 10 | FRAME ROLL PAPER LEFT ASSY.,IEI.,CB35 |
| SURECOLOR SC-P400 | 1663224 | 100 | HOUSING UPPER SUB ASSY.,D,IEI. |
| SURECOLOR SC-P400 | 1663218 | 101 | PANEL SUB ASSY,CE85,:IEI |
| SURECOLOR SC-P400 | 1663073 | 102 | DECORATION PLATE,LEFT SUB ASSY |
| SURECOLOR SC-P400 | 1660853 | 103 | HOUSING,LOWER |
| SURECOLOR SC-P400 | 1663219 | 105 | DECORATION PLATE,RIGHT SUB ASSY |
| SURECOLOR SC-P400 | 1550331 | 106 | PAPER SUPPORT SUB ASSY.,IEI |
| SURECOLOR SC-P400 | 1541755 | 107 | HOUSING,REAR |
| SURECOLOR SC-P400 | 1544768 | 11 | FRAME ROLL PAPER RIGHT ASSY.,IEI.,CB35 |
| SURECOLOR SC-P400 | 1541773 | 112 | DECORATION PLATE,FRONT,RIGHT |
| SURECOLOR SC-P400 | 1660858 | 113 | DECORATION PLATE,FRONT,LEFT |
| SURECOLOR SC-P400 | 1663235 | 115 | HOUSING,UPPER,SUPPORT SUB.,IEI |
| SURECOLOR SC-P400 | 2163467 | 116 | HIGH VOLTAGE MODULE |
| SURECOLOR SC-P400 | 2136940 | 117 | HARNESS,ELECTRODE |
| SURECOLOR SC-P400 | 1293641 | 118 | TUBE,INK EJECT,LEFT,F |
| SURECOLOR SC-P400 | 1293642 | 119 | TUBE,INK EJECT,RIGHT,F |
| SURECOLOR SC-P400 | 1549015 | 12 | TRAY,CDR |
| SURECOLOR SC-P400 | 1466312 | 120 | HOLDER,TUBE,INK EJECT,B |
| SURECOLOR SC-P400 | 2134891 | 123 | HARNESS |
| SURECOLOR SC-P400 | 2134501 | 123 | HARNESS |
| SURECOLOR SC-P400 | 1550357 | 124 | PAPER SUPPORT USFAP ASSY,B.,IEI |
| SURECOLOR SC-P400 | 1663217 | 126 | STACKER UNIT,CE85,:IEI. |
| SURECOLOR SC-P400 | 1236444 | 13 | SHEET,CD,DUMMY |
| SURECOLOR SC-P400 | 1529123 | 18 | LABEL,CAUTION,CUT PAPER GUIDE,D |
| SURECOLOR SC-P400 | 2170134 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-P400 | 2171673 | 202 | WIRELESS LAN USB MODULE |
| SURECOLOR SC-P400 | 2138307 | 300 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-P400 | 2145870 | 350 | BOARD ASSY.,PANEL |
| SURECOLOR SC-P400 | 2134504 | 360 | HARNESS |
| SURECOLOR SC-P400 | 2150400 | 400 | POWER CABLE |
| SURECOLOR SC-P400 | 2173837 | 500 | PRINTER MECHANISM,CE85,IEI:ASP |
| SURECOLOR SC-P400 | 1665792 | 502 | CARRIAGE SUB ASSY,IEI.,CE85 |
| SURECOLOR SC-P400 | 1663228 | 503 | HOLDER CSIC UNIT.,IEI. |
| SURECOLOR SC-P400 | 1292771 | 504 | HOLDER,DETECTOR,PW |
| SURECOLOR SC-P400 | 2109393 | 505 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-P400 | 2117265 | 506 | BOARD ASSY.,ENCODER,CR |
| SURECOLOR SC-P400 | 1262695 | 508 | HOLDER,BOARD ASSY.,ENCORDER,PF |
| SURECOLOR SC-P400 | 2138728 | 509 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-P400 | 1544760 | 510 | COVER IC ASSY.,IEI.,CB35 |
| SURECOLOR SC-P400 | 1292785 | 511 | SHAFT,CR,GUIDE |
| SURECOLOR SC-P400 | 1557662 | 512 | SCALE,CR,C |
| SURECOLOR SC-P400 | 1233669 | 513 | TORSION SPRING,24.7 |
| SURECOLOR SC-P400 | 2137379 | 514 | MOTOR,ASSY,CR |
| SURECOLOR SC-P400 | 2090524 | 515 | CABLE,HEAD,B |
| SURECOLOR SC-P400 | 2090523 | 516 | CABLE,HEAD |
| SURECOLOR SC-P400 | 2020393 | 517 | DETECTOR,LEAF,B2 |
| SURECOLOR SC-P400 | 2143429 | 518 | HARNESS,DETECTOR,CD-R |
| SURECOLOR SC-P400 | 1544748 | 519 | AUTO PG UT.,IEI.,CB35 |
| SURECOLOR SC-P400 | 1705906 | 519 | AUTO PG UT.,IEI.,CB35 |
| SURECOLOR SC-P400 | 1544756 | 520 | TRAY,PASTE BOARD,BASE ASSY.,IEI.,CB35 |
| SURECOLOR SC-P400 | 1616852 | 521 | INK SYSTEM ASSY.,IEI.B,CB35 |
| SURECOLOR SC-P400 | 1543994 | 522 | PAPER GUIDE UPPER SUB ASSY.,IEI.,CB35 |
| SURECOLOR SC-P400 | 1292591 | 523 | TORSION SPRING,PAPER GUIDE,UPPER |
| SURECOLOR SC-P400 | 2133292 | 524 | MOTOR,ASSY,PF,C |
| SURECOLOR SC-P400 | 1544744 | 526 | ROLLER PF SUB ASSY.,IEI.,CB35 |
| SURECOLOR SC-P400 | 1598648 | 527 | PAPER GUIDE FRONT & LOWER SUB ASSY.,ASP |
| SURECOLOR SC-P400 | 1530857 | 528 | HOLDER RELEASE SUB ASSY,IEI |
| SURECOLOR SC-P400 | 1530584 | 529 | PAPER DETECTOR SUB ASSY,IEI |
| SURECOLOR SC-P400 | 1529333 | 530 | LEVER RELEASE CD-R SUB ASSY |
| SURECOLOR SC-P400 | 1569061 | 532 | POROUS PAD, PAPER GUIDE FRONT,ASP,IEI |
| SURECOLOR SC-P400 | 1619843 | 533 | POROUS PAD, PAPER GUIDE, LEFT,ASP |
| SURECOLOR SC-P400 | 1513177 | 534 | POROUS PAD,PAPER GUIDE,INK EJECT,UPPER,B |
| SURECOLOR SC-P400 | 2090534 | 535 | HARNESS,ENCORDER,PF |
| SURECOLOR SC-P400 | 2090522 | 536 | HARNESS,BOARD ASSY.,RELAY |
| SURECOLOR SC-P400 | 1617572 | 537 | CLEANER,HEAD,D ASP,IEI |
| SURECOLOR SC-P400 | 2090528 | 538 | CABLE,DETECTOR,8 |
| SURECOLOR SC-P400 | 1530573 | 539 | FRAGE RELEASE SUB ASSY,IEI |
| SURECOLOR SC-P400 | 1513178 | 541 | POROUS PAD,PAPER GUIDE,INK EJECT,LEFT,B |
| SURECOLOR SC-P400 | 1513179 | 542 | POROUS PAD,PAPER GUIDE,INK EJECT,RIGHT,B |
| SURECOLOR SC-P400 | 1466365 | 543 | POROUS PAD,GUIDE,INK EJECT,LEFT |
| SURECOLOR SC-P400 | 1466362 | 544 | POROUS PAD,GUIDE,INK EJECT |
| SURECOLOR SC-P400 | 1660864 | 545 | GUIDE,IC,OVERSEA |
| SURECOLOR SC-P400 | 1513176 | 547 | TRAY,POROUS PAD,PAPER GUIDE,FRONT,B |
| SURECOLOR SC-P400 | 1466342 | 548 | HINGE,COVER,CARTRIDGE |
| SURECOLOR SC-P400 | 1262736 | 553 | CAM,RELEASE,LOCK,PAPER EJECT |
| SURECOLOR SC-P400 | 1466343 | 554 | HOLDER,CABLE |
| SURECOLOR SC-P400 | FA24000 | 700 | PRINT HEAD,IF464V |
| SURECOLOR SC-P400 | 1521980 | 702 | FOOT,B |
| SURECOLOR SC-P400 | 1663220 | 703 | ASF UNIT,CE85,:IEI |
| SURECOLOR SC-P400 | 1481196 | 704 | POROUS PAD,INK EJECT,LEFT,LOWER |
| SURECOLOR SC-P400 | 1481197 | 705 | POROUS PAD,INK EJECT,LEFT,UPPER |
| SURECOLOR SC-P400 | 1481198 | 706 | POROUS PAD,INK EJECT,RIGHT,LOWER |
| SURECOLOR SC-P400 | 1481199 | 707 | POROUS PAD,INK EJECT,RIGHT,UPPER |
| SURECOLOR SC-P400 | 1492494 | 708 | POROUS PAD,INK EJECT,IS,LEFT,B |
| SURECOLOR SC-P400 | 1492495 | 709 | POROUS PAD,INK EJECT,IS,LOWER,FB,B |
| SURECOLOR SC-P400 | 1492496 | 710 | POROUS PAD,INK EJECT,IS,LOWER,LEFT,B |
| SURECOLOR SC-P400 | 1492497 | 711 | POROUS PAD,INK EJECT,TUBE,FA,B |
| SURECOLOR SC-P400 | 1492498 | 712 | POROUS PAD,INK EJECT,TUBE,FB,B |
| SURECOLOR SC-P400 | 1483949 | 713 | POROUS PAD,INK EJECT,THIS SIDE |
| SURECOLOR SC-P400 | 2167247 | 714 | MOTOR ASSY.,ASF |
| SURECOLOR SC-P400 | 1563212 | 715 | PAPER GUIDE,MANUAL,B |
| SURECOLOR SC-P400 | 1593273 | 716 | POROUS PAD,INK EJECT,R |
| SURECOLOR SC-P400 | 1218027 | 717 | POROUS PAD,CABLE,HEAD |
| SURECOLOR SC-P400 | 1470313 | 718 | LABEL,INK POSITION,B |
| SURECOLOR SC-P400 | 1436642 | 719 | CLAMP,TUBE |
| SURECOLOR SC-P400 | 1284091 | 730 | C.B.S-TITE(P4)SCREW,3X8,F/ZN-3C |
| SURECOLOR SC-P400 | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) |
| SURECOLOR SC-P400 | 1033657 | NON FIG | GREASE G-45 SDOTT.COM |
| SURECOLOR SC-P400 | 1480655 | NON FIG | GREASE G-71(BLUE) SDOTT.COM |
| SURECOLOR SC-P400 | 1266905 | NON FIG | I/P,903BGP,500,PRINTING |
| SURECOLOR SC-P400 | 1304993 | NON FIG | PF ROLLER POSITION ADJUSTMENT TOOL |
| SURECOLOR SC-P400 | 1276333 | NON FIG | PG ADJUSTMENT PLATE |
| SURECOLOR SC-P400 | 1640645 | NON FIG | SONIC TENSION METER U508 |
| SURECOLOR SC-P400 | 1304994 | NON FIG | SURFACE PLATES |
