EPSON SureColor P10000 P10050 P10070 Parts Manual
In stock
SKU
EP-P10000-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor P10000 P10050 P10070 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 7.8M |
| Pages | 7 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor P10000 P10050 P10070 Series |
****** The following content is not included in the PDF manual, please use it online ******

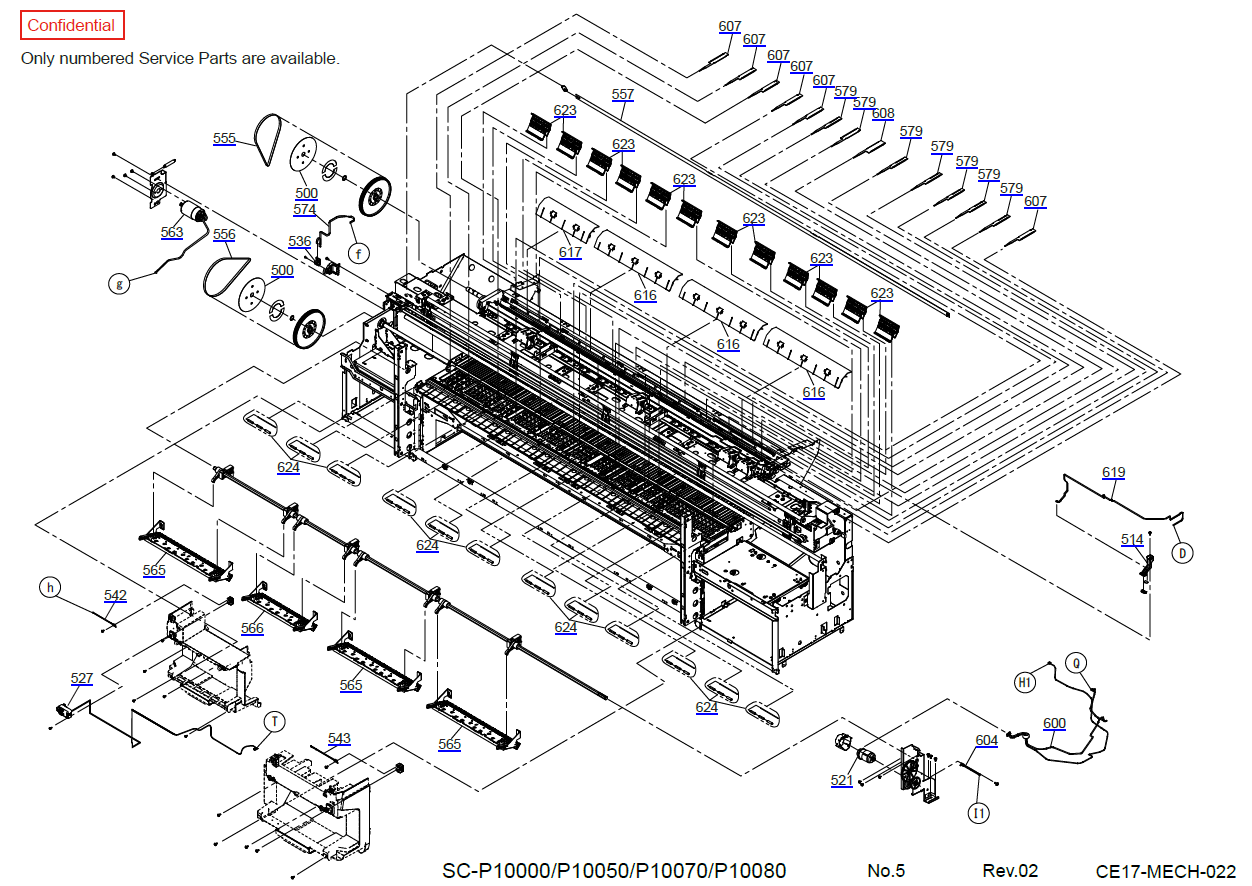

| Model | Article | Reference | Description |
| SURECOLOR SC-P10000 | 1691361 | 1 | STAND,RIGHT,ASSY.,44,ASP |
| SURECOLOR SC-P10000 | 1691362 | 2 | STAND,LEFT,ASSY.,44,ASP |
| SURECOLOR SC-P10000 | 1691352 | 3 | STAND,STAY,ASSY.,44,ASP |
| SURECOLOR SC-P10000 | 1686221 | 5 | SCREW ASSY.,ASP SDOTT |
| SURECOLOR SC-P10000 | 1695796 | 100 | COVER,PANEL,LOWER |
| SURECOLOR SC-P10000 | 1695323 | 101 | COVER FRONT CE17 ASSY.,ASP |
| SURECOLOR SC-P10000 | 1656430 | 102 | COVER,FRONT,LOWER,B |
| SURECOLOR SC-P10000 | 1656431 | 103 | COVER,FRONT,LOWER,C |
| SURECOLOR SC-P10000 | 1656429 | 104 | COVER,FRONT,LOWER |
| SURECOLOR SC-P10000 | 1686229 | 105 | PAPER GUIDE BOARD FRONT R ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1713898 | 105 | PAPER GUIDE BOARD FRONT R ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1686234 | 106 | COVER,IH,LEFT ASSY.,ASP |
| SURECOLOR SC-P10000 | 1686233 | 107 | HOLDER,IH,RIGHT ASSY.,ASP |
| SURECOLOR SC-P10000 | 1656395 | 108 | COVER,TOP,LEFT |
| SURECOLOR SC-P10000 | 1552193 | 109 | COVER,SIDE,LEFT,LOWER |
| SURECOLOR SC-P10000 | 1703180 | 117 | COVER PRINTER CE17 ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1695797 | 119 | COVER,TOP,RIGHT |
| SURECOLOR SC-P10000 | 1656399 | 120 | CAP,CR,ADJUST |
| SURECOLOR SC-P10000 | 1656408 | 121 | COVER,ROLL,WINDOW |
| SURECOLOR SC-P10000 | 1672536 | 122 | COVER,SIDE,RIGHT,LOWER ASP |
| SURECOLOR SC-P10000 | 1656590 | 124 | COVER ROLL ASSY.,44 |
| SURECOLOR SC-P10000 | 1656444 | 125 | HOUSING,BASE,RIGHT |
| SURECOLOR SC-P10000 | 1656445 | 127 | HOUSING,BASE,LEFT |
| SURECOLOR SC-P10000 | 1699540 | 128 | COVER,TOP,SUPPORT,LEFT |
| SURECOLOR SC-P10000 | 1656398 | 129 | COVER,TOP,SUPPORT,RIGHT |
| SURECOLOR SC-P10000 | 1656446 | 130 | COVER,TANK,INK EJECT |
| SURECOLOR SC-P10000 | 1656390 | 132 | COVER,REAR,RIGHT |
| SURECOLOR SC-P10000 | 1656389 | 133 | COVER,REAR,LEFT |
| SURECOLOR SC-P10000 | 1683597 | 134 | LABEL,MODEL NAME |
| SURECOLOR SC-P10000 | 1686232 | 136 | COVER,IH,RIGHT ASSY.,ASP |
| SURECOLOR SC-P10000 | 1699842 | 137 | HOLDER,IH,LEFT ASSY A.,ASP |
| SURECOLOR SC-P10000 | 1656406 | 138 | COVER,ROLL,SUPPORT,RIGHT |
| SURECOLOR SC-P10000 | 1656407 | 139 | COVER,ROLL,SUPPORT,LEFT |
| SURECOLOR SC-P10000 | 1682129 | 141 | LABEL,PRECISIONCORE,B |
| SURECOLOR SC-P10000 | 1666178 | 143 | LABEL,ULTRA CHROME INK,PRO |
| SURECOLOR SC-P10000 | 1695321 | 147 | COVER FRONT CE20 ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1701668 | 148 | COVER,FRONT,LEFT,ASSY B,ASP |
| SURECOLOR SC-P10000 | 1656403 | 151 | COVER,SIDE,ROLL,LEFT |
| SURECOLOR SC-P10000 | 1703163 | 152 | COVER,SIDE,ROLL,RIGHT,ASSY,ASP |
| SURECOLOR SC-P10000 | 2171571 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-P10000 | 2164720 | 201 | DC FAN MOTOR |
| SURECOLOR SC-P10000 | 2171574 | 202 | BOARD ASSY.,SUB |
| SURECOLOR SC-P10000 | 2164663 | 203 | HARNESS,P/S,CB78 LOWER |
| SURECOLOR SC-P10000 | 2164681 | 204 | HARNESS,P/S,INLET |
| SURECOLOR SC-P10000 | 2164713 | 205 | HARNESS,P/S,CB78 UPPER |
| SURECOLOR SC-P10000 | 2164714 | 206 | HARNESS,SUB-C,CB78 LOWER |
| SURECOLOR SC-P10000 | 2164716 | 207 | HARNESS,SUB-C,CONTROL |
| SURECOLOR SC-P10000 | 2164715 | 208 | HARNESS,SUB-C,CB78 UPPER |
| SURECOLOR SC-P10000 | 2164669 | 209 | HARNESS,RELAY,SENSOR |
| SURECOLOR SC-P10000 | 2174036 | 210 | BOARD ASSY.,PANEL |
| SURECOLOR SC-P10000 | 1656348 | 28 | STAND,TOP,LEFT |
| SURECOLOR SC-P10000 | 1560663 | 29 | CASTER,P60HG |
| SURECOLOR SC-P10000 | 1714641 | 29 | CASTER,P60HG |
| SURECOLOR SC-P10000 | 1714642 | 29 | CASTER,P60HG |
| SURECOLOR SC-P10000 | 1560664 | 30 | CASTER,P60HGS |
| SURECOLOR SC-P10000 | 2168583 | 300 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-P10000 | 1656347 | 36 | STAND,TOP,RIGHT |
| SURECOLOR SC-P10000 | 1656084 | 500 | SCALE,PF |
| SURECOLOR SC-P10000 | 1686216 | 501 | IH L ASSY.,ASP |
| SURECOLOR SC-P10000 | 1701551 | 501 | IH L ASSY.,ASP |
| SURECOLOR SC-P10000 | 1518317 | 502 | SEAL RUBBER,JOINT,ASP |

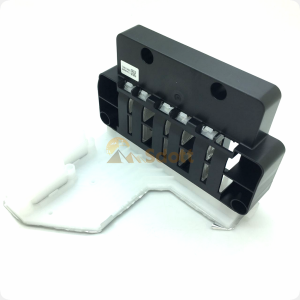

| SURECOLOR SC-P10000 | 1686215 | 503 | ONCR ASSY.,ASP |
| SURECOLOR SC-P10000 | 1686220 | 504 | WIPER ASSY.,ASP |
| SURECOLOR SC-P10000 | 1686219 | 505 | CLEANER WIPER ASSY.,ASP |

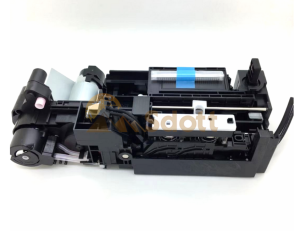

| SURECOLOR SC-P10000 | 1686241 | 506 | PUMP CAP ASSY.,ASP |
| SURECOLOR SC-P10000 | 1708728 | 506 | PUMP CAP ASSY.,ASP |
| SURECOLOR SC-P10000 | 1701550 | 507 | IH R ASSY A.,ASP |
| SURECOLOR SC-P10000 | 1704299 | 507 | IH R ASSY A.,ASP |
| SURECOLOR SC-P10000 | 1691355 | 508 | CR ASSY.,ASP |
| SURECOLOR SC-P10000 | 1710359 | 508 | CR ASSY.,ASP |
| SURECOLOR SC-P10000 | 1480133 | 509 | PULLEY,DRIVEN |
| SURECOLOR SC-P10000 | 1702080 | 510 | BOARD ASSY.,ENCODER,CR,ASP |
| SURECOLOR SC-P10000 | 2143464 | 511 | PHOTO INTERRUPTER |
| SURECOLOR SC-P10000 | 1656561 | 512 | TIMING BELT,CR,44 |
| SURECOLOR SC-P10000 | 1686240 | 513 | BOARD ASSY,INK MARK ASSY.,ASP |
| SURECOLOR SC-P10000 | 2109393 | 514 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-P10000 | 1559675 | 515 | OIL PAD |
| SURECOLOR SC-P10000 | 2164659 | 516 | HARNESS,ENCODER,CR |
| SURECOLOR SC-P10000 | 1579784 | 517 | OIL PAD |
| SURECOLOR SC-P10000 | 1686218 | 518 | KEEP CAP ASSY.,ASP |
| SURECOLOR SC-P10000 | 2171572 | 519 | BOARD ASSY.,SUB |
| SURECOLOR SC-P10000 | 1686237 | 520 | FRAME APG ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 2130110 | 521 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-P10000 | 1686211 | 523 | LEVER SENSOR CE20 ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1691357 | 524 | CUTTER CE17 ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1691354 | 525 | TUBE CE17 ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1686210 | 526 | PANEL ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1686236 | 527 | HOLDER,SENSOR ASSY.,ASP |
| SURECOLOR SC-P10000 | 2139742 | 529 | CONNECTOR,CSIC |
| SURECOLOR SC-P10000 | 2169825 | 530 | BOARD ASSY.,SUB |
| SURECOLOR SC-P10000 | 2170576 | 532 | MOTOR,ASSY.,CR |
| SURECOLOR SC-P10000 | 2142800 | 535 | MOTOR ASSY.,PF |
| SURECOLOR SC-P10000 | 2133325 | 536 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-P10000 | 2139052 | 538 | FAN ASSY.,ABSORPTION |
| SURECOLOR SC-P10000 | 2120015 | 540 | MOTOR ASSY.,REWIND |
| SURECOLOR SC-P10000 | 2169345 | 542 | SENSOR ASSY.,COVER,IH,RIGHT |
| SURECOLOR SC-P10000 | 2169346 | 543 | SENSOR ASSY.,COVER,IH,LEFT |
| SURECOLOR SC-P10000 | 2164686 | 546 | HARNESS,HEAD A,FFC44 |
| SURECOLOR SC-P10000 | 2164687 | 547 | HARNESS,HEAD B,FFC44 |
| SURECOLOR SC-P10000 | 2164688 | 548 | HARNESS,HEAD C,FFC44 |
| SURECOLOR SC-P10000 | 2164689 | 549 | HARNESS,HEAD D,FFC44 |
| SURECOLOR SC-P10000 | 2164703 | 550 | HARNESS,SUB,FFC44 |
| SURECOLOR SC-P10000 | 1656565 | 552 | SHEET,GUIDE,PLATE,TUBE,UPPER,44 |
| SURECOLOR SC-P10000 | 1656566 | 553 | SHEET,GUIDE,PLATE,TUBE, MIDDLE,44 |
| SURECOLOR SC-P10000 | 1656567 | 554 | SHEET,GUIDE PLATE,TUBE,LOWER,44 |
| SURECOLOR SC-P10000 | 1559690 | 555 | TIMING BELT,PF |
| SURECOLOR SC-P10000 | 1656083 | 556 | TIMING BELT,PF |
| SURECOLOR SC-P10000 | 1656568 | 557 | SCALE,CR,44 |
| SURECOLOR SC-P10000 | 1691358 | 558 | MAINTENANCE FCC CE17 ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | FA23001 | 560 | PRINT HEAD,ID807V,ASP |
| SURECOLOR SC-P10000 | 1688512 | 561 | COVER,ROLL,SUPPORT,B |
| SURECOLOR SC-P10000 | 1656076 | 562 | CENTER SUPPORT,ROLLER,PF |
| SURECOLOR SC-P10000 | 2169294 | 563 | MOTOR ASSY.,PF |
| SURECOLOR SC-P10000 | 2171573 | 564 | BOARD ASSY.,SUB |
| SURECOLOR SC-P10000 | 1686242 | 565 | BASE,ROLLER,EJ,ASSY.,ASP |
| SURECOLOR SC-P10000 | 1686243 | 566 | BASE,ROLLER,EJ,B,ASSY.,ASP |
| SURECOLOR SC-P10000 | 2164677 | 567 | HARNESS,SENSOR,PG |
| SURECOLOR SC-P10000 | 2164670 | 568 | HARNESS,SENSOR,CARRIAGE |
| SURECOLOR SC-P10000 | 2169344 | 569 | SENSOR ASSY.,MAINTENANCE TANK |
| SURECOLOR SC-P10000 | 2164673 | 570 | HARNESS,SENSOR,ATC LOCK |
| SURECOLOR SC-P10000 | 2164672 | 571 | HARNESS,SENSOR,PAPER ROLL |
| SURECOLOR SC-P10000 | 2164658 | 572 | HARNESS,RELAY,PANEL |
| SURECOLOR SC-P10000 | 2164660 | 574 | HARNESS,ENCODER,PF |
| SURECOLOR SC-P10000 | 1568043 | 575 | LEVER,ATC,ROLL |
| SURECOLOR SC-P10000 | 2164664 | 576 | HARNESS,RELAY,CRCM HOME |
| SURECOLOR SC-P10000 | 2164665 | 577 | HARNESS,RELAY,INK SYSTEM1 |
| SURECOLOR SC-P10000 | 2164666 | 578 | HARNESS,RELAY,INK SYSTEM2 |
| SURECOLOR SC-P10000 | 1692505 | 579 | POROUS PAD,PAPER GUIDE,FRONT,ASP |
| SURECOLOR SC-P10000 | 2164667 | 580 | HARNESS,RELAY,MOTOR |
| SURECOLOR SC-P10000 | 2164671 | 581 | HARNESS,SENSOR,PAPER THICKNESS |
| SURECOLOR SC-P10000 | 2164674 | 582 | HARNESS,SENSOR,IMS |
| SURECOLOR SC-P10000 | 2164675 | 583 | HARNESS,SENSOR,PW |
| SURECOLOR SC-P10000 | 2164678 | 585 | HARNESS,RELAY,ADSORPTION FAN HOME |
| SURECOLOR SC-P10000 | 2164679 | 586 | HARNESS,RELAY,ADSORPTION FAN FULL |
| SURECOLOR SC-P10000 | 2164682 | 587 | HARNESS,SUB-B RELAY,FFC44 |
| SURECOLOR SC-P10000 | 2164683 | 588 | HARNESS,SUB-B RELAY,MOTOR44 |
| SURECOLOR SC-P10000 | 2164696 | 589 | HARNESS,SENSOR,CENTER NIP |
| SURECOLOR SC-P10000 | 2164697 | 590 | HARNESS,MOTOR,CENTER ROLLER NIP |
| SURECOLOR SC-P10000 | 2164700 | 591 | HARNESS,RELAY,MAIN-B |
| SURECOLOR SC-P10000 | 2164707 | 592 | HARNESS,RELAY,CRCM FULL44 |
| SURECOLOR SC-P10000 | 2164711 | 593 | HARNESS,ENCODER,CEN ROLL DRV |
| SURECOLOR SC-P10000 | 2164712 | 594 | HARNESS,SENSOR,BOARD PAPER GUIDE |
| SURECOLOR SC-P10000 | 2164717 | 595 | HARNESS,SENSOR,SLACK DETECTION HOME |
| SURECOLOR SC-P10000 | 2164718 | 596 | HARNESS,SENSOR,SLACK DETECTION24 |
| SURECOLOR SC-P10000 | 2164719 | 597 | HARNESS,SENSOR,SLACK DETECTION44 |
| SURECOLOR SC-P10000 | 2167695 | 598 | HARNESS,RELAY,CR MOTOR |
| SURECOLOR SC-P10000 | 2170010 | 600 | HARNESS,MOTOR,EJECT ROLLER |
| SURECOLOR SC-P10000 | 2141277 | 601 | CONNECTOR,2P |
| SURECOLOR SC-P10000 | 2169842 | 602 | CABLE,RELAY,DP |
| SURECOLOR SC-P10000 | 2169843 | 603 | CABLE,RELAY,DP,B |
| SURECOLOR SC-P10000 | 2170517 | 604 | HERNESS,DETECTOR,RELEASE |
| SURECOLOR SC-P10000 | 1679866 | 605 | SHEET,GUIDE PLATE,TUBE,UPPER,44,B |
| SURECOLOR SC-P10000 | 1688511 | 606 | BRUSH,CUTTER |
| SURECOLOR SC-P10000 | 1705327 | 606 | BRUSH,CUTTER |
| SURECOLOR SC-P10000 | 1692506 | 607 | POROUS PAD,PAPER GUIDE,FRONT,B,ASP |
| SURECOLOR SC-P10000 | 1692507 | 608 | POROUS PAD,PAPER GUIDE,FRONT,C,ASP |
| SURECOLOR SC-P10000 | 2155242 | 609 | COOLING FAN,HDD |
| SURECOLOR SC-P10000 | 1656454 | 610 | SPACER |
| SURECOLOR SC-P10000 | 1686214 | 611 | COMPAS ASSY.,ASP |
| SURECOLOR SC-P10000 | 2164699 | 614 | HARNESS,MOTOR,RELEASE |
| SURECOLOR SC-P10000 | 2164662 | 615 | HARNESS,SENSOR,DRIVEN RELEASE |
| SURECOLOR SC-P10000 | 1686213 | 616 | PAPER GUIDE ROLL UPPER A ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1686212 | 617 | PAPER GUIDE ROLL UPPER B ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 2164668 | 618 | HARNESS,MOTOR,APG/ATC |
| SURECOLOR SC-P10000 | 2164676 | 619 | HARNESS,SENSOR,PE |
| SURECOLOR SC-P10000 | 2155241 | 620 | COOLING FAN,BOX |
| SURECOLOR SC-P10000 | 1690943 | 621 | ROLL PAPER HOLDER ASSY.,ESL,ASP |
| SURECOLOR SC-P10000 | 1690944 | 622 | COVER,IH,HOOK,ASSY.,ASP |
| SURECOLOR SC-P10000 | 1690945 | 623 | PAPER GUIDE,UPPER,MIDDLE.,ASSY,ASP |
| SURECOLOR SC-P10000 | 1601087 | 624 | ROLLER ASSY.,DRIVEN,ST ASP SDOTT.COM |
| SURECOLOR SC-P10000 | 1655997 | 631 | COVER,CR |
| SURECOLOR SC-P10000 | 2142331 | 632 | HARNESS |
| SURECOLOR SC-P10000 | 2142795 | 633 | HARNESS,DETECTOR,CUTTER |
| SURECOLOR SC-P10000 | 1691360 | 634 | PIPE ASSY.,BASKET,44,ASP |
| SURECOLOR SC-P10000 | 1656371 | 635 | HELICAL COMBINATION GEAR,19.153,12.1 |
| SURECOLOR SC-P10000 | 1656435 | 640 | COVER,IH,BEARING |
| SURECOLOR SC-P10000 | 1568049 | 660 | SHAFT,DRIVE,ATC,ROLL,B |
| SURECOLOR SC-P10000 | 1703888 | NON FIG | ACCESSARY KIT,STAND LEFT,ASP |
| SURECOLOR SC-P10000 | 1703886 | NON FIG | ACCESSARY KIT,STAND RIGHT,ASP |
| SURECOLOR SC-P10000 | 1582821 | NON FIG | CLEANING CARTRIDGE |
| SURECOLOR SC-P10000 | 1705413 | NON FIG | COVER,PAPER GUIDE,REAR |
| SURECOLOR SC-P10000 | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) |
| SURECOLOR SC-P10000 | 1033657 | NON FIG | GREASE G-45 |
| SURECOLOR SC-P10000 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| SURECOLOR SC-P10000 | 1574337 | NON FIG | GREASE,G-81 |
| SURECOLOR SC-P10000 | 1516265 | NON FIG | GREASE,G-84 |
| SURECOLOR SC-P10000 | 1694254 | NON FIG | INK CART.BOXED,C,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1694261 | NON FIG | INK CART.BOXED,DGY,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1694264 | NON FIG | INK CART.BOXED,GY,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1694258 | NON FIG | INK CART.BOXED,LC,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1694265 | NON FIG | INK CART.BOXED,LGY,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1694262 | NON FIG | INK CART.BOXED,MK,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1694252 | NON FIG | INK CART.BOXED,PK,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1694259 | NON FIG | INK CART.BOXED,VLM,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1694255 | NON FIG | INK CART.BOXED,VM,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1694256 | NON FIG | INK CART.BOXED,Y,PIG'T,4910,T900,350AS |
| SURECOLOR SC-P10000 | 1476228 | NON FIG | JETRAS JP-D300S |
| SURECOLOR SC-P10000 | 1697861 | NON FIG | LABEL,COVER,ROLL |
| SURECOLOR SC-P10000 | 1540751 | NON FIG | LABEL,PANTONE |
| SURECOLOR SC-P10000 | 1521154 | NON FIG | OIL,O-17 SDOTT.COM |
| SURECOLOR SC-P10000 | 1424364 | NON FIG | P-THICK SENSOR POSITION JIG |
| SURECOLOR SC-P10000 | 1282355 | NON FIG | PAPER THICKNESS POSITION TOOL |
| SURECOLOR SC-P10000 | 1640645 | NON FIG | SONIC TENSION METER U508 |
Related Products
Check items to add to the cart or
Validate your login
