EPSON SureColor F9200 F9270 Parts Manual
In stock
SKU
EP-F9200-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor F9200 F9270 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 14.3M |
| Pages | 9 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F9200 F9270 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Model | Article | Reference | Description |
| SURECOLOR SC-F9200 | 1672990 | 1 | SCREW ASSY,CE30 ASP |
| SURECOLOR SC-F9200 | 1654816 | 2 | ADJUSTER ASSY.,STAND |
| SURECOLOR SC-F9200 | 1654818 | 3 | CASER,6043STNO |
| SURECOLOR SC-F9200 | 1654819 | 4 | CASER,6043STYS |
| SURECOLOR SC-F9200 | 1623340 | 5 | STAND,TOP,RIGHT,B ASSY ESL ASP |
| SURECOLOR SC-F9200 | 1623342 | 6 | STAND,TOP,LEFT,B ASSY ESL ASP |
| SURECOLOR SC-F9200 | 1672991 | 8 | STAND,LEFT ASSY CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1672992 | 9 | STAND,RIGHT ASSY CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1654820 | 10 | ADJUSTER,D-B3 10X75FR |
| SURECOLOR SC-F9200 | 1672985 | 100 | COVER,TOP,LEFT,ASSY,CE30 ASP |
| SURECOLOR SC-F9200 | 1670606 | 101 | COVER,SIDE,RIGHT,UPPER,C |
| SURECOLOR SC-F9200 | 1672986 | 102 | COVER,TOP,RIGHT,ASSY CE30,ASP |
| SURECOLOR SC-F9200 | 1672987 | 103 | COVER,FRONT,RIGHT,64,ASSY,CE30 ASP |
| SURECOLOR SC-F9200 | 1672988 | 104 | COVER,MAINTENANCE,RIGHT,ASSY,CE30 ASP |
| SURECOLOR SC-F9200 | 1679306 | 105 | COVER,MAINTENANCE,LEFT,ASSY.A,CE30 ASP |
| SURECOLOR SC-F9200 | 1577201 | 106 | COVER,SIDE,RIGHT,LOWER,B |
| SURECOLOR SC-F9200 | 1577203 | 107 | COVER,SIDE,LEFT,LOWER,B |
| SURECOLOR SC-F9200 | 1672979 | 108 | COVER FRONT LEFT ASSY.,CE30 ASP |
| SURECOLOR SC-F9200 | 1670605 | 109 | COVER,TOP,PANEL,C |
| SURECOLOR SC-F9200 | 1559802 | 11 | STAY,STAND,SUB,64 |
| SURECOLOR SC-F9200 | 1670607 | 110 | COVER,SIDE,LEFT,UPPER,C |
| SURECOLOR SC-F9200 | 1670612 | 112 | COVER,MAINTENANCE,B |
| SURECOLOR SC-F9200 | 1670614 | 113 | COVER,MAINTENANCE,HEAD,B |
| SURECOLOR SC-F9200 | 1559808 | 114 | COVER,PRINTER,SUPPORT,64 |
| SURECOLOR SC-F9200 | 1577202 | 115 | HOUSING,BASE,SUPPORT,RIGHT,B |
| SURECOLOR SC-F9200 | 1577204 | 116 | HOUSING,BASE,SUPPORT,LEFT,B |
| SURECOLOR SC-F9200 | 1670616 | 117 | CAP,COVER,TUBE,C |
| SURECOLOR SC-F9200 | 1552177 | 119 | KNOB,LEVER SDOTT |
| SURECOLOR SC-F9200 | 1589757 | 12 | STAY,STAND,64,ASP |
| SURECOLOR SC-F9200 | 1660909 | 120 | LABEL,MODEL NAME |
| SURECOLOR SC-F9200 | 1591688 | 121 | LABEL,PERIODIC MAINTENANCE |
| SURECOLOR SC-F9200 | 1670620 | 125 | CAP,CR,ADJUST,C |
| SURECOLOR SC-F9200 | 1682129 | 128 | LABEL,PRECISIONCORE,B |
| SURECOLOR SC-F9200 | 1670610 | 131 | COVER,PRINTER,PROTECT,RIGHT,B |
| SURECOLOR SC-F9200 | 1670611 | 132 | COVER,PRINTER,PROTECT,LEFT,B |
| SURECOLOR SC-F9200 | 1590533 | 14 | WEIGHT,TENSIONBAR,B |
| SURECOLOR SC-F9200 | 1672994 | 15 | ACCESSORY KIT CE30,ASP |
| SURECOLOR SC-F9200 | 1674887 | 17 | SCREW KIT ASSY CE30 ASP |
| SURECOLOR SC-F9200 | 1637028 | 18 | SHEET ADJUST ASSY ESL ASP |
| SURECOLOR SC-F9200 | 1617899 | 19 | LABEL,CAUTION,EMERGENCY MESSAGE,E |
| SURECOLOR SC-F9200 | 1673001 | 20 | ADJUST PLATE,SPACER,PF ASSY,ASP |
| SURECOLOR SC-F9200 | 2172518 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F9200 | 2138619 | 201 | HARNESS |
| SURECOLOR SC-F9200 | 2130945 | 202 | HARNESS |
| SURECOLOR SC-F9200 | 2130944 | 203 | HARNESS |
| SURECOLOR SC-F9200 | 2142891 | 204 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F9200 | 2149216 | 205 | BOARD ASSY.,SUB |
| SURECOLOR SC-F9200 | 2138603 | 206 | HARNESS |
| SURECOLOR SC-F9200 | 2138604 | 207 | HARNESS |
| SURECOLOR SC-F9200 | 2138605 | 208 | HARNESS |
| SURECOLOR SC-F9200 | 2172469 | 210 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F9200 | 2138596 | 211 | HARNESS |
| SURECOLOR SC-F9200 | 2138598 | 212 | HARNESS |
| SURECOLOR SC-F9200 | 2138614 | 213 | HARNESS |
| SURECOLOR SC-F9200 | 2138618 | 214 | HARNESS |
| SURECOLOR SC-F9200 | 2138620 | 215 | HARNESS |
| SURECOLOR SC-F9200 | 2138622 | 216 | HARNESS |
| SURECOLOR SC-F9200 | 2152837 | 217 | BOARD ASSY.,SUB |
| SURECOLOR SC-F9200 | 2142879 | 218 | BOARD ASSY.,SUB |
| SURECOLOR SC-F9200 | 2139319 | 219 | FAN SET. DC (PROPELLER TYPE) |
| SURECOLOR SC-F9200 | 2142892 | 220 | BOARD ASSY.,PANEL |
| SURECOLOR SC-F9200 | 2175506 | 220 | BOARD ASSY.,PANEL |
| SURECOLOR SC-F9200 | 2143596 | 222 | HARNESS |
| SURECOLOR SC-F9200 | 2145945 | 223 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F9200 | 2143594 | 224 | HARNESS |
| SURECOLOR SC-F9200 | 2169990 | 227 | FAN SET. DC(PROPELLER TYPE) |
| SURECOLOR SC-F9200 | 1601087 | 500 | ROLLER ASSY.,DRIVEN,ST ASP |
| SURECOLOR SC-F9200 | 1574089 | 501 | SCALE,PF ASSY,ASP |
| SURECOLOR SC-F9200 | 1574090 | 502 | PRINTER,COVER,OPEN ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1574111 | 503 | FULL,MAINTENANCE OPEN ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1574091 | 504 | INK LOCK,P COVER, HOME,ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1574112 | 505 | INK LOCK,MAINTENANCE, HOME,ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1672978 | 506 | CARRIAGE ASSY CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1480133 | 507 | PULLEY,DRIVEN |
| SURECOLOR SC-F9200 | 1480177 | 508 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F9200 | 1559657 | 509 | BELT,CR |
| SURECOLOR SC-F9200 | 2143464 | 510 | PHOTO INTERRUPTER |
| SURECOLOR SC-F9200 | FA25002 | 511 | PRINT HEAD,IE343J,ASP |
| SURECOLOR SC-F9200 | 2171913 | 512 | BOARD ASSY.,INK MARK,B |
| SURECOLOR SC-F9200 | 2109393 | 513 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-F9200 | 2158133 | 514 | HARNESS,CR,ENCODER |
| SURECOLOR SC-F9200 | 2142289 | 515 | HARNESS,IMS |
| SURECOLOR SC-F9200 | 2158134 | 516 | HARNESS,PW |
| SURECOLOR SC-F9200 | 2139290 | 517 | CABLE,SENSOR,PG |
| SURECOLOR SC-F9200 | 2147857 | 518 | BOARD ASSY.,SUB |
| SURECOLOR SC-F9200 | 1574110 | 519 | OIL PAD,ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1574092 | 520 | APG,ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1693344 | 520 | APG,ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1672993 | 523 | COVER,HEATER,TOP,FRONT,B ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1562881 | 524 | LABEL,SET,AFTER HEATER |
| SURECOLOR SC-F9200 | 1574095 | 525 | PANEL ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1712207 | 525 | PANEL ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1691909 | 528 | HOLDER IC .A,ASSY,R,CE30 ESL.,ASP |
| SURECOLOR SC-F9200 | 1575095 | 529 | SEAL RUBBER,JOINT.,ASP |
| SURECOLOR SC-F9200 | 1574117 | 530 | WIPER.,ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1613445 | 531 | POROUS PAD,WIPER,CLEANER B,ASP |
| SURECOLOR SC-F9200 | 1697093 | 532 | PUMP CAP ASSY,L, A CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1710112 | 532 | PUMP CAP ASSY,L, A CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1691907 | 533 | TUBE INK SUPPLY.A,ASSY.,CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1691908 | 534 | DUCT CR.A, ASSY,CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1710065 | 534 | DUCT CR.A, ASSY,CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1574106 | 535 | HARNESS,HEAD ASSY,ASP |
| SURECOLOR SC-F9200 | 1574107 | 536 | HARNESS,HEAD ASSY,C,ASP |
| SURECOLOR SC-F9200 | 1574120 | 537 | SCALE,CR,ASP |
| SURECOLOR SC-F9200 | 2169088 | 538 | FAN ASSY.,ABSORPTION |
| SURECOLOR SC-F9200 | 2169091 | 542 | MOTOR ASSY.,PF |
| SURECOLOR SC-F9200 | 2133325 | 543 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F9200 | 2158131 | 544 | HARNESS,PF,ENCORDER |
| SURECOLOR SC-F9200 | 1589601 | 545 | PUSH RIVET,P6060W ASSY.B,ASP |
| SURECOLOR SC-F9200 | 2158132 | 546 | HARNESS,SENSOR,PE |
| SURECOLOR SC-F9200 | 2170576 | 547 | MOTOR,ASSY.,CR |
| SURECOLOR SC-F9200 | 2130110 | 548 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-F9200 | 2139286 | 549 | CABLE,MOTOR,APG |
| SURECOLOR SC-F9200 | 1673000 | 550 | FAN SET.DC,ASSY ASP |
| SURECOLOR SC-F9200 | 1559635 | 552 | COVER,CR |
| SURECOLOR SC-F9200 | 1559650 | 553 | SPACER,CR,B |
| SURECOLOR SC-F9200 | 1559681 | 554 | SHEET,GUIDE RAIL,TUBE,LOWER |
| SURECOLOR SC-F9200 | 1559690 | 555 | TIMING BELT,PF |
| SURECOLOR SC-F9200 | 1651022 | 556 | PAPER PRESSING PLATE ASSY,ASP ESL |
| SURECOLOR SC-F9200 | 1562843 | 557 | LABEL,CAUTION,P-COVER,RIGHT |
| SURECOLOR SC-F9200 | 1562845 | 558 | LABEL,CAUTION,P-COVER,LEFT |
| SURECOLOR SC-F9200 | 2139279 | 559 | CABLE,RELAY,FRONT,COVER,LEFT |
| SURECOLOR SC-F9200 | 2174478 | 560 | CABLE,RELAY,MAINTENANCE COVER,LEFT |
| SURECOLOR SC-F9200 | 2158128 | 561 | HARNESS,PANEL |
| SURECOLOR SC-F9200 | 2158148 | 562 | HARNESS |
| SURECOLOR SC-F9200 | 2158129 | 563 | HARNESS,CRCM1 |
| SURECOLOR SC-F9200 | 2139289 | 564 | CABLE,SENSOR,CR |
| SURECOLOR SC-F9200 | 2158139 | 565 | HARNESS,CR |
| SURECOLOR SC-F9200 | 2139297 | 566 | CABLE,RELAY,MOTOR,PF |
| SURECOLOR SC-F9200 | 2139302 | 567 | CABLE,SENSOR,MANUAL RELEASE |
| SURECOLOR SC-F9200 | 2139303 | 568 | CABLE,RELAY,FAN |
| SURECOLOR SC-F9200 | 2139304 | 569 | CABLE,RELAY,FAN,B |
| SURECOLOR SC-F9200 | 2139308 | 572 | CABLE,RELAY,HEATER,B |
| SURECOLOR SC-F9200 | 2139311 | 575 | CABLE,RELAY,THERMISTOR,C |
| SURECOLOR SC-F9200 | 2143597 | 576 | HARNESS |
| SURECOLOR SC-F9200 | 2143599 | 577 | HARNESS |
| SURECOLOR SC-F9200 | 2143600 | 578 | HARNESS |
| SURECOLOR SC-F9200 | 2143601 | 579 | HARNESS |
| SURECOLOR SC-F9200 | 2143602 | 580 | HARNESS |
| SURECOLOR SC-F9200 | 2143603 | 581 | HARNESS |
| SURECOLOR SC-F9200 | 2143604 | 582 | HARNESS |
| SURECOLOR SC-F9200 | 1691906 | 584 | HOLDER IC .A,ASSY,L,CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1585151 | 586 | HARNESS,HEAD,ASSY.,S ESL ASP |
| SURECOLOR SC-F9200 | 1585152 | 587 | HARNESS,HEAD,ASSY.,S-C ESL ASP |
| SURECOLOR SC-F9200 | 2158130 | 593 | HARNESS,CRCM2 |
| SURECOLOR SC-F9200 | 1581618 | 595 | SHEET,PROTECT,INK |
| SURECOLOR SC-F9200 | 1612934 | 597 | FASTEN PLATE,TUBE ASSY,B, ASP |
| SURECOLOR SC-F9200 | 1602678 | 598 | SHEET,PROTECT,INK,B |
| SURECOLOR SC-F9200 | 1586080 | 599 | STRENGTHEN,HEAD,CR,B |
| SURECOLOR SC-F9200 | 1551633 | 600 | CENTER SUPPORT,ROLLER,PF |
| SURECOLOR SC-F9200 | 1604495 | 601 | STRENGTHEN,HEAD,CR, C |
| SURECOLOR SC-F9200 | 1283938 | 602 | C.B.P-TITE SCREW,3X12,F/ZN-3C |
| SURECOLOR SC-F9200 | 1672984 | 603 | FRAME,HEATER,LEFT,FRONT ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1672983 | 604 | FRAME,HEATER,RIGHT,FRONT ASSY ESL,ASP |
| SURECOLOR SC-F9200 | 1635436 | 608 | FRAME,HEATER,ADJUST,LEFT ASSY ASP |
| SURECOLOR SC-F9200 | 1635435 | 609 | FRAME,HEATER,ADJUST,RIGHT ASSY ASP |
| SURECOLOR SC-F9200 | 1685414 | 615 | SUB SHAFT,SLIDER ASSY ,ASP |
| SURECOLOR SC-F9200 | 1082364 | 616 | SPRING PIN(B130103516) |
| SURECOLOR SC-F9200 | 2169089 | 617 | FAN ASSY.,CR SDOTT-PARTS |
| SURECOLOR SC-F9200 | 2158149 | 618 | HARNESS |
| SURECOLOR SC-F9200 | 1669242 | 619 | PULLEY,ROLLER,PF ASSY ESL,ASP |

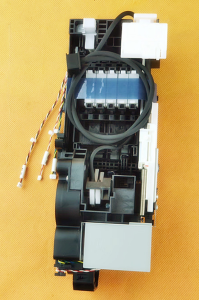

| SURECOLOR SC-F9200 | 1672999 | 620 | PUMP CAP ASSY,R,CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 1713242 | 620 | PUMP CAP ASSY,R,CE30 ESL,ASP |
| SURECOLOR SC-F9200 | 2169334 | 621 | HARNESS,RELAY,PF MOTOR COOLING FAN |
| SURECOLOR SC-F9200 | 2169335 | 622 | HARNESS,RELAY,CR MOTOR COOLING FAN |
| SURECOLOR SC-F9200 | 2169336 | 623 | HARNESS,RELAY,CR MOTOR |
| SURECOLOR SC-F9200 | 1559706 | 624 | CAM,RELEASE |
| SURECOLOR SC-F9200 | 1651404 | NON FIG | CLEANING CARTRIDGE 14 |
| SURECOLOR SC-F9200 | 1574337 | NON FIG | GREASE,G-81 |
| SURECOLOR SC-F9200 | 1516265 | NON FIG | GREASE,G-84 |
| SURECOLOR SC-F9200 | 1667192 | NON FIG | INK CART.BOXED,BK,DYE,642C1,T811,AS |
| SURECOLOR SC-F9200 | 1667193 | NON FIG | INK CART.BOXED,C,DYE,642C1,T811,AS |
| SURECOLOR SC-F9200 | 1698176 | NON FIG | INK CART.BOXED,C,DYE,642C1,T811,AS |
| SURECOLOR SC-F9200 | 1698175 | NON FIG | INK CART.BOXED,HDK,DYE,642C1,T811,AS |
| SURECOLOR SC-F9200 | 1667194 | NON FIG | INK CART.BOXED,M,DYE,642C1,T811,AS |
| SURECOLOR SC-F9200 | 1698178 | NON FIG | INK CART.BOXED,M,DYE,642C1,T811,AS |
| SURECOLOR SC-F9200 | 1667195 | NON FIG | INK CART.BOXED,Y,DYE,642C1,T811,AS |
| SURECOLOR SC-F9200 | 1698179 | NON FIG | INK CART.BOXED,Y,DYE,642C1,T811,AS |
| SURECOLOR SC-F9200 | 1673002 | NON FIG | LUBRICATION KIT CE30 ASP |
| SURECOLOR SC-F9200 | 1521154 | NON FIG | OIL,O-17 SDOtt.COM |
| SURECOLOR SC-F9200 | 1640645 | NON FIG | SONIC TENSION METER U508 |
Related Products
Check items to add to the cart or
Validate your login
