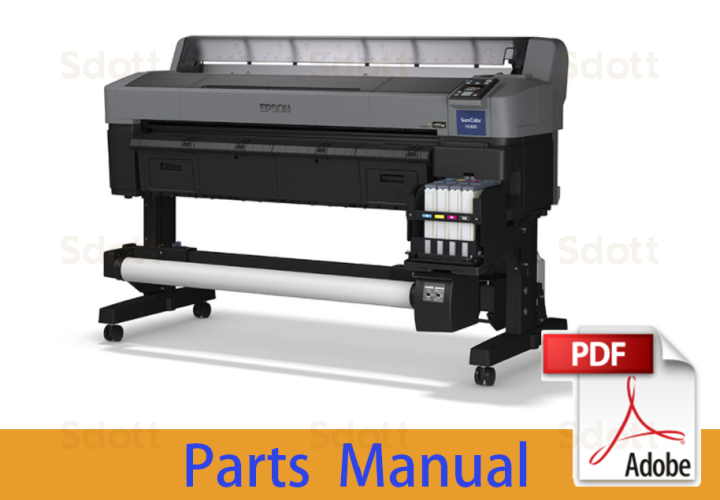

main product photo

EPSON SureColor F6300 F6330 F6340 F6350 F6360 F6370 F6380 Parts Manual

In stock
SKU
EP-F6300-PM
$1.10
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format service manual
  • Allow high-definition printing

Share it:

Links
$1.10
More Information
Manual Name EPSON SureColor F6300 F6330 F6340 F6350 F6360 F6370 F6380 Parts Manual
Format PDF
PDF Archive 16.5M
Pages 9
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor F6300 F6330 F6340 F6350 F6360 F6370 F6380 Series

EPSON SureColor F6300 F6330 F6340 F6350 F6360 F6370 F6380 spare parts ON SALE









****** The following content is not included in the original PDF manual, please use it online ******

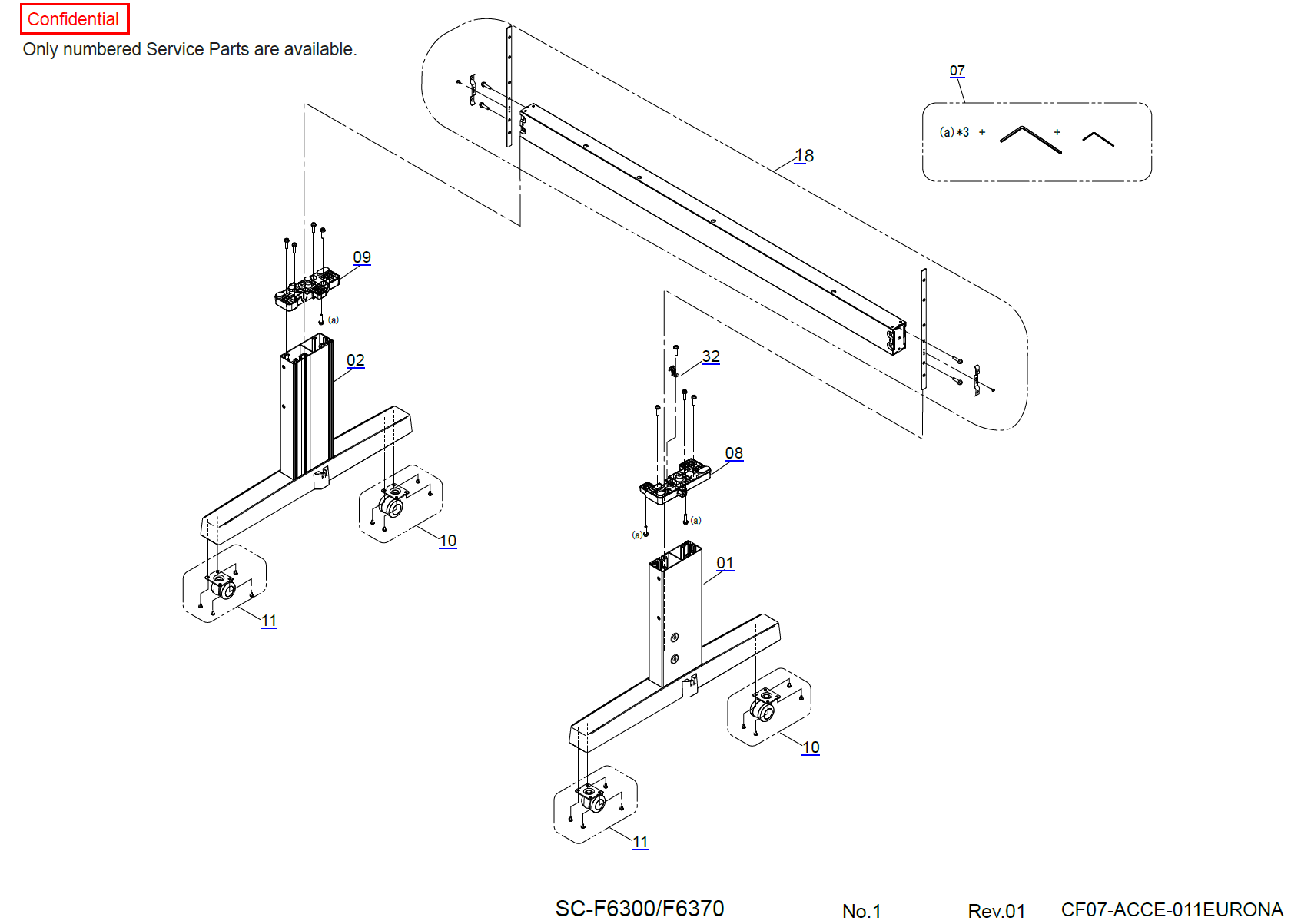

SURECOLOR SC-F630017996151STAND,RIGHT.ASSY.,CH66,ESL,ASP
SURECOLOR SC-F630017996162STAND,LEFT.ASSY.CH66,ESL,ASP
SURECOLOR SC-F630017996187SCREW ASSY,ASP
SURECOLOR SC-F630015607638STAND,TOP,RIGHT
SURECOLOR SC-F630016205119STAND,TOP,LEFT
SURECOLOR SC-F6300171464110CASTER,KIT,P60HG,ASP
SURECOLOR SC-F63001769540100HOUSING,PANEL,LOWER
SURECOLOR SC-F63001799612101COVER,FRONT,C,CF07 ASSY,ASP
SURECOLOR SC-F63001799613102COVER,INNER,LEFT,44,C,CF07 ASSY,ASP
SURECOLOR SC-F63001799614103COVER,INNER,RIGHT,44,C,CF07 ASSY,ASP
SURECOLOR SC-F63001799604104PAPER GUIDE LOWER CH66,ASSY.,ESL,ASP
SURECOLOR SC-F63001799605105PAPER GUIDE LOWER,B,CH66,ASSY.,ESL,ASP
SURECOLOR SC-F63001799617106COVER,IH,C,ASSY,ASP
SURECOLOR SC-F63001719403107HOLDER,IH,E
SURECOLOR SC-F63001770933108COVER,SIDE,LEFT,UPPER,D
SURECOLOR SC-F63001770929109COVER,SIDE,ROLL,LEFT,C
SURECOLOR SC-F6300171464211CASTER,KIT,P60HGS,ASP
SURECOLOR SC-F63001770939110COVER,FRONT,SUB,LEFT,44,C
SURECOLOR SC-F63001770938111COVER,FRONT,SUB,RIGHT,44,C
SURECOLOR SC-F63001770937112COVER,TOP,LEFT,C
SURECOLOR SC-F63001770934113COVER,FRONT,RIGHT,C
SURECOLOR SC-F63001771007114COVER,INNER,C
SURECOLOR SC-F63001606893115COVER,TOP,BASE,44
SURECOLOR SC-F63001620536116COVER,PRINTER,SUB,LEFT,44
SURECOLOR SC-F63001563169117COVER,PRINTER,SUB,RIGHT,44
SURECOLOR SC-F63001706384118COVER,PRINTER,B
SURECOLOR SC-F63001769537119HOUSING,SIDE,RIGHT
SURECOLOR SC-F63001770923120CAP,CR,ADJUST,D
SURECOLOR SC-F63001770925122COVER,SIDE,ROLL,RIGHT,C
SURECOLOR SC-F63001573788123CAP,COVER,REAR
SURECOLOR SC-F63001563164124COVER,ROLL,44
SURECOLOR SC-F63001671116125COVER,BASE,RIGHT,B
SURECOLOR SC-F63001671120126COVER,FRONT,LEFT,LOWER,B
SURECOLOR SC-F63001671121127COVER,BASE,LEFT,B
SURECOLOR SC-F63001770931128COVER,TOP,LEFT,C
SURECOLOR SC-F63001770927129COVER,TOP,SUPPORT,RIGHT,C
SURECOLOR SC-F63001770947130COVER,TANK,INK EJECT,B
SURECOLOR SC-F63001577201132COVER,SIDE,RIGHT,LOWER,B
SURECOLOR SC-F63001577203133COVER,SIDE,LEFT,LOWER,B
SURECOLOR SC-F63001796380134LABEL,MODEL NAME,F6300
SURECOLOR SC-F63001671136135HOLDER,IH,SUPPORT,B
SURECOLOR SC-F63001682129136LABEL,PRECISIONCORE,B
SURECOLOR SC-F63001748665137LABEL,CAUTION,EMERGENCY MESSAGE,G
SURECOLOR SC-F63001588487138LABEL,ULTRA CHROME INK,DS
SURECOLOR SC-F63001799619139COVER,MAINTENANCE ASSY,ASP
SURECOLOR SC-F6300179960618STAY,STAND,44,ASSY.,CH66,ESL,ASP
SURECOLOR SC-F6300176955220FIXING PLATE,TRAY,REAR

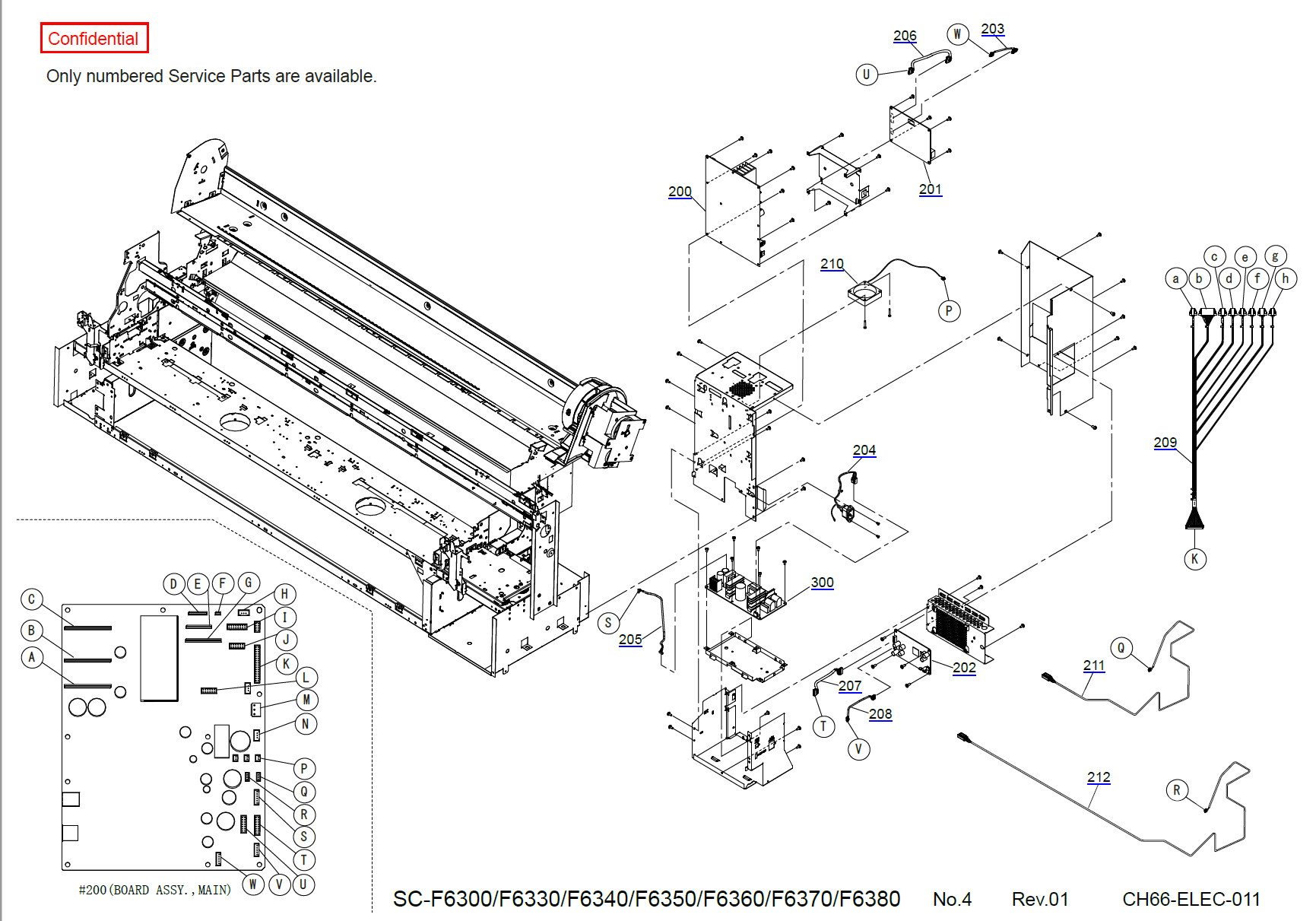

SURECOLOR SC-F63002198029200BOARD ASSY.,MAIN
SURECOLOR SC-F63002158460201BOARD ASSY.,MAIN
SURECOLOR SC-F63002198177202BOARD ASSY.,MAIN
SURECOLOR SC-F63002130944203HARNESS
SURECOLOR SC-F63002182014204HARNESS
SURECOLOR SC-F63002142119205HARNESS
SURECOLOR SC-F63002142121206HARNESS
SURECOLOR SC-F63002142123207HARNESS
SURECOLOR SC-F63002142124208HARNESS
SURECOLOR SC-F63002142148209HARNESS
SURECOLOR SC-F6300180235321INK SUPPLY TANK,SUB,44650
SURECOLOR SC-F63002142161210DC FAN SET
SURECOLOR SC-F63002142157211HARNESS
SURECOLOR SC-F63002142158212HARNESS
SURECOLOR SC-F6300180235422INK SUPPLY TANK,HDK,SUB,44650
SURECOLOR SC-F6300179301223SLIDER,SUB,2,642C0
SURECOLOR SC-F63002188983300BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-F6300161865332GROUNDING PLATE,STAND,MR
SURECOLOR SC-F6300179962035FRAME INK EJECT ASSY,CH66,ASP
SURECOLOR SC-F6300179960842CISS,TRAY,SUPPORT,Assy.,CH66,ESL,ASP
SURECOLOR SC-F6300179960744CISS,TRAY,ASSY.,CH66,ESL,ASP

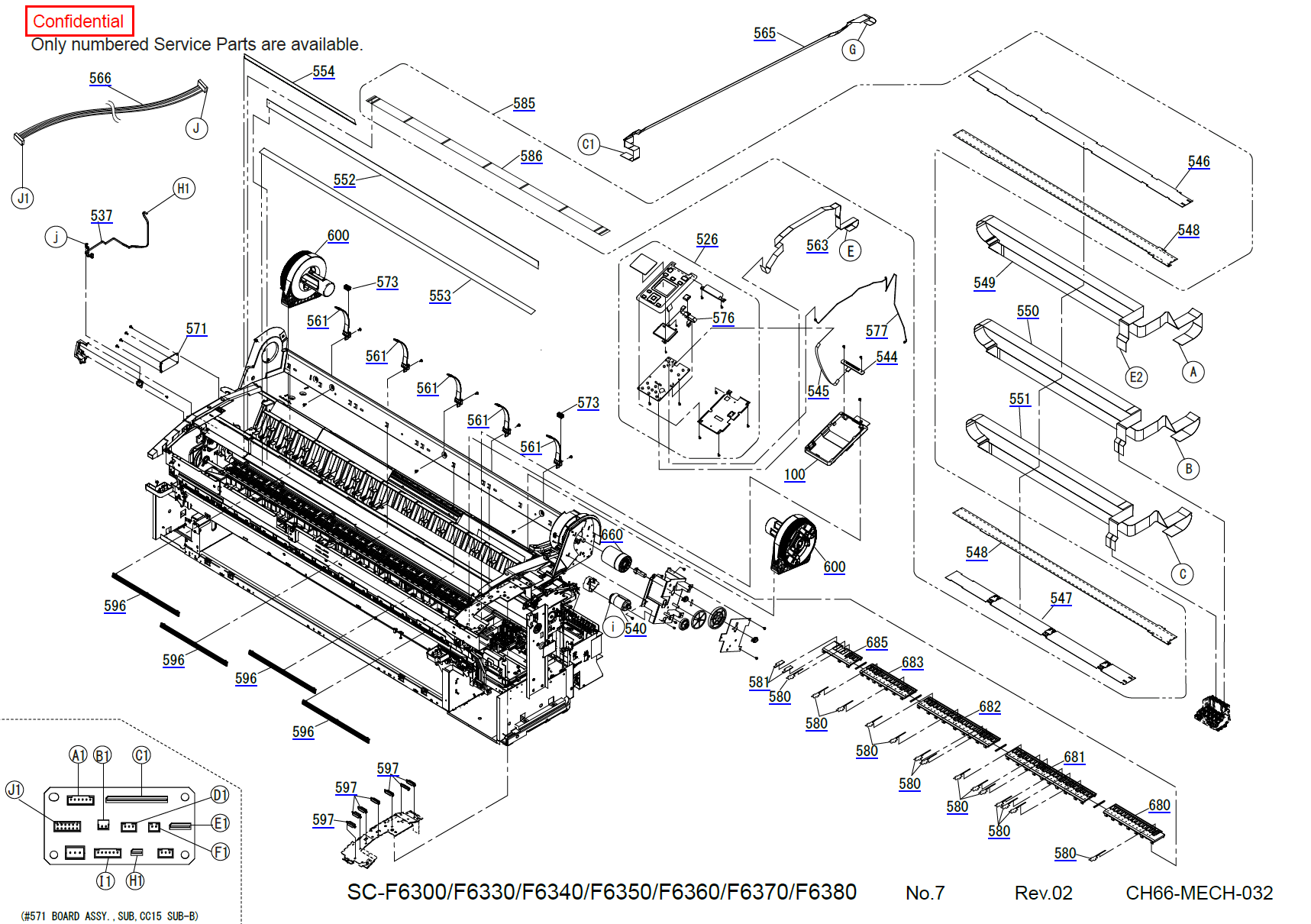

SURECOLOR SC-F63001588059500SCALE,PF,UNIT,ESL,ASP
SURECOLOR SC-F63001828635501Replace: 1863497 SP
SURECOLOR SC-F63001863497501HOLDER ASSY,CH66,A:ASP
SURECOLOR SC-F63001518317502SEAL RUBBER,JOINT,ASP
SURECOLOR SC-F63001687446503DUCT ASSY.,CR,ASP
SURECOLOR SC-F63001574117504WIPER.,ASSY ESL,ASP
SURECOLOR SC-F63001613445505POROUS PAD,WIPER,CLEANER B,ASP
SURECOLOR SC-F63001832831506Replace: 1859640
SURECOLOR SC-F63001859640506PUMP CAP ASSY,A CH66,ASP
SURECOLOR SC-F63001665431507FAN ASSY.,ABSORPTION,ST ASSY.,ESL,ASP
SURECOLOR SC-F63001710076508CR,44,ASSY A.,EM ESL,ASP
SURECOLOR SC-F63001858085508CR,44,ASSY A.,EM ESL,ASP
SURECOLOR SC-F63001480133509PULLEY,DRIVEN
SURECOLOR SC-F63001480177510BOARD ASSY.,ENCODER
SURECOLOR SC-F63002208696510BOARD ASSY.,ENCODER
SURECOLOR SC-F63002143464511PHOTO INTERRUPTER
SURECOLOR SC-F63001560744512TIMING BELT,CR,44
SURECOLOR SC-F63002183501513BOARD ASSY.,INK MARK,C
SURECOLOR SC-F63002109393514BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-F63002142139515HARNESS
SURECOLOR SC-F63002142140516HARNESS
SURECOLOR SC-F63002154215517HARNESS
SURECOLOR SC-F63002142142518HARNESS
SURECOLOR SC-F63002144073519BOARD ASSY.,SUB
SURECOLOR SC-F63001693291520MOTOR,APG,ASSY EM.,ESL,ASP
SURECOLOR SC-F63002182572521MOTOR ASSY.,ASF,SUB
SURECOLOR SC-F63002142149522HARNESS
SURECOLOR SC-F63001675588523INTER LOCK,ASSY A CF07.,ESL,ASP
SURECOLOR SC-F63001720008524CUTTER,44,ASSY A MR.,ESL,ASP
SURECOLOR SC-F63001588067525TUBE,CR,44,ASSY.,ESL,ASP
SURECOLOR SC-F63001756670526PANEL,CF07 ASSY D.,ESL,ASP
SURECOLOR SC-F63001588063528OIL PAD ASSY ,ASP
SURECOLOR SC-F63002142156531HARNESS
SURECOLOR SC-F63002142796532MOTOR ASSY.,CR
SURECOLOR SC-F63002142147533HARNESS
SURECOLOR SC-F63002142146534HARNESS
SURECOLOR SC-F63002142800535MOTOR ASSY.,PF
SURECOLOR SC-F63002133325536BOARD ASSY.,ENCODER,PF
SURECOLOR SC-F63002208679536BOARD ASSY.,ENCODER,PF
SURECOLOR SC-F63002210270536BOARD ASSY.,ENCODER,PF
SURECOLOR SC-F63002142144537HARNESS
SURECOLOR SC-F63002142155538HARNESS
SURECOLOR SC-F63002142153539HARNESS
SURECOLOR SC-F63002182573540MOTOR ASSY.,REWIND
SURECOLOR SC-F63002191100544BOARD ASSY.,PANEL 7128B, CF07_PNL-B ASP
SURECOLOR SC-F63002142331545HARNESS
SURECOLOR SC-F63001620479546SHEET,GUIDE,FFC,UPPER,44
SURECOLOR SC-F63001620480547SHEET,GUIDE,FFC,LOWER,44
SURECOLOR SC-F63001619991548SHIELD PLATE,FFC,44
SURECOLOR SC-F63002142134549HARNESS
SURECOLOR SC-F63002142136550HARNESS
SURECOLOR SC-F63002148220551HARNESS
SURECOLOR SC-F63001620481552SHEET,GUIDE PLATE,TUBU,UPPER,44
SURECOLOR SC-F63001625053553SHEET,GUIDE PLATE,TUBU,MIDDLE,44
SURECOLOR SC-F63001579797554SHEET,GUIDE PLATE,TUBU,LOWER,44
SURECOLOR SC-F63001560762555COVER,CR
SURECOLOR SC-F63001573729556TIMING BELT,PF
SURECOLOR SC-F63001588584557SCALE,CR,44,ASP
SURECOLOR SC-F6300FA12100560PRINT HEAD,ID7560-10
SURECOLOR SC-F63001568042561GUIDE,ROLL PAPER,SUPPORT
SURECOLOR SC-F63002142803562SENSOR ASSY.,C
SURECOLOR SC-F63002198178563HARNESS,PANEL,FFC
SURECOLOR SC-F63002198275564HARNESS,COVER,MAINTENANCE
SURECOLOR SC-F63002193750565HARNESS
SURECOLOR SC-F63002142132566HARNESS
SURECOLOR SC-F63002142143567HARNESS
SURECOLOR SC-F63002142151568HARNESS
SURECOLOR SC-F63002142152569HARNESS
SURECOLOR SC-F63002142154570HARNESS
SURECOLOR SC-F63002144083571BOARD ASSY.,SUB
SURECOLOR SC-F63001568045572COVER,LEVER,ATC,ROLL
SURECOLOR SC-F63001564787573PAD,MAINTENANCE COVER
SURECOLOR SC-F63001869152573PAD,MAINTENANCE COVER
SURECOLOR SC-F63001568044574LEVER,ATC,ROLL,SUB
SURECOLOR SC-F63001568043575LEVER,ATC,ROLL
SURECOLOR SC-F63002142334576HARNESS
SURECOLOR SC-F63002198179577HARNESS,PNL,RELAY,1
SURECOLOR SC-F63001717541580POROUS PAD,PAPER GUIDE,FRONT
SURECOLOR SC-F63001573739581POROUS PAD,PAPER GUIDE,FRONT,B
SURECOLOR SC-F63001559877583MIDDLE FULCRUM,ROLLER,PF
SURECOLOR SC-F63001865745583MIDDLE FULCRUM,ROLLER,PF
SURECOLOR SC-F63001640311585SHEET,ASSY,44,ASP
SURECOLOR SC-F63001619992586SHEET,FFC,SUPPORT,UNDER,44
SURECOLOR SC-F63001656332596RAIL,GUIDE,ROLL PAPER
SURECOLOR SC-F63001614411597FFC CLAMP,FC-30
SURECOLOR SC-F63001799625598COVER SIDER,U SENSOR ASSY.CH66,ESL,ASP
SURECOLOR SC-F63001799622599INNER CARTON BOX CISS,TRAY ASSY.ESL,ASP
SURECOLOR SC-F63001799609600ROLL,FLANGE,ASSY.,CH66,ESL,ASP
SURECOLOR SC-F63001568046618BASE,LEVER,ATC,ROLL
SURECOLOR SC-F63001656122621SHEET,FFC,CARRIAGE,SUB,B
SURECOLOR SC-F63001573753626TORSION SPRING,0.483
SURECOLOR SC-F63001568039627LEVER,DETECTOR,ROLL PAPER
SURECOLOR SC-F63001559985629PAPER GUIDE,SUB,B
SURECOLOR SC-F63001559984630PAPER GUIDE,SUB
SURECOLOR SC-F63001487528631EXTENSION SPRING,3.0,B
SURECOLOR SC-F63001668342638FERRITE CORE ASSY.,ESL,ASP
SURECOLOR SC-F63001679569650HOLDER,SENSOR,ASSY.,ASP
SURECOLOR SC-F63001619650658HELICAL COMBINATION GEAR,14.494,8.28
SURECOLOR SC-F63002142795659HARNESS,DETECTOR,CUTTER
SURECOLOR SC-F63001568049660SHAFT,DRIVE,ATC,ROLL,B
SURECOLOR SC-F63001601087661ROLLER ASSY.,DRIVEN,ST ASP
SURECOLOR SC-F63002170994670MICRO SWICH ASSY
SURECOLOR SC-F63001750841671PULLEY,DRIVEN ASSY ESL,ASP
SURECOLOR SC-F63001827564680PAPER GUIDE,FRONT,ASSY.,ESL,ASP
SURECOLOR SC-F63001827565681PAPER GUIDE,FRONT,B,ASSY.,ESL,ASP
SURECOLOR SC-F63001827566682PAPER GUIDE,FRONT,C,ASSY.,ESL,ASP
SURECOLOR SC-F63001827568683PAPER GUIDE,FRONT,D,ASSY.,ESL,ASP
SURECOLOR SC-F63001758364685PAPER GUIDE,FRONT,F
SURECOLOR SC-F63001666011711STOPPER,INK EJECT BOTTLE
SURECOLOR SC-F63001770504716LABEL,INK POSITION SDOTT-PARTS.COM
SURECOLOR SC-F63001770505717LABEL,INK POSITION,BK





EPSON SureColor F6300 F6330 F6340 F6350 F6360 F6370 F6380 spare parts ON SALE
