EPSON SureColor F6200 F6270 Parts Manual

In stock
SKU
EP-F6200-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

EPSON SureColor F6200 F6270 Parts Manual
$1.20
More Information
Manual Name EPSON SureColor F6200 F6270 Parts Manual
Format PDF
PDF Archive 7.89M
Pages 8
Brand EPSON
Parts Code B
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor F6200 F6270 Series

EPSON SureColor F6200 F6270 Parts Manual (Update Version.B)



****** The following content is not included in the PDF manual, please use it online ******

SURECOLOR SC-F620016369401STAND, RIGHT ASSY AD. ,ESL,ASP
SURECOLOR SC-F620016369412STAND, LEFT ASSY AD. ,ESL,ASP
SURECOLOR SC-F620016058087SCREW ASSY,ASP
SURECOLOR SC-F620015607638STAND,TOP,RIGHT
SURECOLOR SC-F620016205119STAND,TOP,LEFT
SURECOLOR SC-F6200171464110CASTER,KIT,P60HG,ASP
SURECOLOR SC-F62001673155100HOUSING,PANEL,LOWER,CF07 ASSY B,ASP
SURECOLOR SC-F62001673152101COVER,FRONT,CF07 ASSY,ASP
SURECOLOR SC-F62001673153102COVER,INNER,LEFT,44,CF07 ASSY,ASP
SURECOLOR SC-F62001673154103COVER,INNER,RIGHT,44,CF07 ASSY,ASP
SURECOLOR SC-F62001695675104PAPER GUIDE LOWER ASSY EM.,ESL,ASP
SURECOLOR SC-F62001695676105PAPER GUIDE LOWER,B,ASSY EM.,ESL,ASP
SURECOLOR SC-F62001707472106COVER,IH,C,CF07 ASSY,A,ASP
SURECOLOR SC-F62001719403107HOLDER,IH,E
SURECOLOR SC-F62001670607108COVER,SIDE,LEFT,UPPER,C
SURECOLOR SC-F62001671125109COVER,SIDE,ROLL,LEFT,B
SURECOLOR SC-F6200171464211CASTER,KIT,P60HGS,ASP
SURECOLOR SC-F62001671126110COVER,FRONT,SUB,LEFT,44,B
SURECOLOR SC-F62001671127111COVER,FRONT,SUB,RIGHT,44,B
SURECOLOR SC-F62001671123112COVER,FRONT,LEFT,B
SURECOLOR SC-F62001671124113COVER,FRONT,RIGHT,B
SURECOLOR SC-F62001671128114COVER,INNER,B
SURECOLOR SC-F62001606893115COVER,TOP,BASE,44
SURECOLOR SC-F62001620536116COVER,PRINTER,SUB,LEFT,44
SURECOLOR SC-F62001563169117COVER,PRINTER,SUB,RIGHT,44
SURECOLOR SC-F62001706384118COVER,PRINTER,B
SURECOLOR SC-F62001670606119COVER,SIDE,RIGHT,UPPER,C
SURECOLOR SC-F62001670620120CAP,CR,ADJUST,C
SURECOLOR SC-F62001671142121COVER,TOP,RIGHT,B
SURECOLOR SC-F62001671144122COVER,SIDE,ROLL,RIGHT,B
SURECOLOR SC-F62001573788123CAP,COVER,REAR
SURECOLOR SC-F62001563164124COVER,ROLL,44
SURECOLOR SC-F62001671116125COVER,BASE,RIGHT,B
SURECOLOR SC-F62001671120126COVER,FRONT,LEFT,LOWER,B
SURECOLOR SC-F62001671121127COVER,BASE,LEFT,B
SURECOLOR SC-F62001671143128COVER,TOP,LEFT,B
SURECOLOR SC-F62001671146129COVER,TOP,SUPPORT,RIGHT,B
SURECOLOR SC-F62001573784130COVER,TANK,INK EJECT
SURECOLOR SC-F62001577201132COVER,SIDE,RIGHT,LOWER,B
SURECOLOR SC-F62001577203133COVER,SIDE,LEFT,LOWER,B
SURECOLOR SC-F62001671504134LABEL,MODEL NAME,D
SURECOLOR SC-F62001671136135HOLDER,IH,SUPPORT,B
SURECOLOR SC-F62001682129136LABEL,PRECISIONCORE,B
SURECOLOR SC-F62001617899137LABEL,CAUTION,EMERGENCY MESSAGE,E
SURECOLOR SC-F62001748665137LABEL,CAUTION,EMERGENCY MESSAGE,E
SURECOLOR SC-F6200169142518STAY,STAND,44,ASSY B.,ESL,ASP
SURECOLOR SC-F6200169088819SC-F6 Series HDK UPGRADE KIT A.,ASP
SURECOLOR SC-F6200172004620WASTE INK BOTTLE UPGRADE KIT A CF07.,ASP
SURECOLOR SC-F62002172028200BOARD ASSY.,MAIN
SURECOLOR SC-F62002158460201BOARD ASSY.,MAIN
SURECOLOR SC-F62002173083202BOARD ASSY.,MAIN
SURECOLOR SC-F62002130944203HARNESS
SURECOLOR SC-F62002182014204HARNESS
SURECOLOR SC-F62002142119205HARNESS
SURECOLOR SC-F62002142121206HARNESS
SURECOLOR SC-F62002142123207HARNESS
SURECOLOR SC-F62002142124208HARNESS
SURECOLOR SC-F62002142148209HARNESS
SURECOLOR SC-F62002142161210DC FAN SET
SURECOLOR SC-F62002142157211HARNESS
SURECOLOR SC-F62002142158212HARNESS
SURECOLOR SC-F62002188981300BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-F6200161865332GROUNDING PLATE,STAND,MR
SURECOLOR SC-F62001588059500SCALE,PF,UNIT,ESL,ASP
SURECOLOR SC-F62001722075501HOLDER ASSY.,IC,CF07,ASP
SURECOLOR SC-F62001828620501HOLDER ASSY.,IC,CF07,ASP
SURECOLOR SC-F62001518317502SEAL RUBBER,JOINT,ASP
SURECOLOR SC-F62001687446503DUCT ASSY.,CR,ASP
SURECOLOR SC-F62001574117504WIPER.,ASSY ESL,ASP
SURECOLOR SC-F62001613445505POROUS PAD,WIPER,CLEANER B,ASP
SURECOLOR SC-F62001720045506PUMP,CAP,ASSY B,CF07,ASP
SURECOLOR SC-F62001832830506PUMP,CAP,ASSY B,CF07,ASP
SURECOLOR SC-F62001859641506PUMP,CAP,ASSY B,CF07,ASP
SURECOLOR SC-F62001862377506PUMP,CAP,ASSY B,CF07,ASP
SURECOLOR SC-F62001665431507FAN ASSY.,ABSORPTION,ST ASSY.,ESL,ASP
SURECOLOR SC-F62001710076508CR,44,ASSY A.,EM ESL,ASP
SURECOLOR SC-F62001858085508CR,44,ASSY A.,EM ESL,ASP
SURECOLOR SC-F62001480133509PULLEY,DRIVEN
SURECOLOR SC-F62001480177510BOARD ASSY.,ENCODER
SURECOLOR SC-F62002208696510BOARD ASSY.,ENCODER
SURECOLOR SC-F62002143464511PHOTO INTERRUPTER
SURECOLOR SC-F62001560744512TIMING BELT,CR,44
SURECOLOR SC-F62002183501513BOARD ASSY.,INK MARK,C
SURECOLOR SC-F62002109393514BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-F62002142139515HARNESS
SURECOLOR SC-F62002142140516HARNESS
SURECOLOR SC-F62002154215517HARNESS
SURECOLOR SC-F62002142142518HARNESS
SURECOLOR SC-F62002144073519BOARD ASSY.,SUB
SURECOLOR SC-F62001693291520MOTOR,APG,ASSY EM.,ESL,ASP
SURECOLOR SC-F62002182572521MOTOR ASSY.,ASF,SUB
SURECOLOR SC-F62002142149522HARNESS
SURECOLOR SC-F62001675588523Ersetzt durch: 1673158
SURECOLOR SC-F62001720008524CUTTER,44,ASSY A MR.,ESL,ASP
SURECOLOR SC-F62001588067525TUBE,CR,44,ASSY.,ESL,ASP
SURECOLOR SC-F62001717393526PANEL,CF07 ASSY C.,ESL,ASP
SURECOLOR SC-F62001588063528OIL PAD ASSY ,ASP
SURECOLOR SC-F62002139742529CONNECTOR,CSIC
SURECOLOR SC-F62002150679530BOARD ASSY.,SUB
SURECOLOR SC-F62002142156531HARNESS
SURECOLOR SC-F62002142796532MOTOR ASSY.,CR
SURECOLOR SC-F62002142147533HARNESS
SURECOLOR SC-F62002142146534HARNESS
SURECOLOR SC-F62002142800535MOTOR ASSY.,PF
SURECOLOR SC-F62002133325536BOARD ASSY.,ENCODER,PF
SURECOLOR SC-F62002208679536BOARD ASSY.,ENCODER,PF
SURECOLOR SC-F62002210270536BOARD ASSY.,ENCODER,PF
SURECOLOR SC-F62002142144537HARNESS
SURECOLOR SC-F62002142155538HARNESS
SURECOLOR SC-F62002142153539HARNESS
SURECOLOR SC-F62002182573540MOTOR ASSY.,REWIND
SURECOLOR SC-F62002193385540MOTOR ASSY.,REWIND
SURECOLOR SC-F62002140024542SENSOR ASSY.,B
SURECOLOR SC-F62002140022543SENSOR ASSY.
SURECOLOR SC-F62002175506544BOARD ASSY.,PANEL 6971D,ASP CC15/CC16/CC17/CD02/
SURECOLOR SC-F62002142331545HARNESS
SURECOLOR SC-F62001620479546SHEET,GUIDE,FFC,UPPER,44
SURECOLOR SC-F62001620480547SHEET,GUIDE,FFC,LOWER,44
SURECOLOR SC-F62001619991548SHIELD PLATE,FFC,44
SURECOLOR SC-F62002142134549HARNESS
SURECOLOR SC-F62002142136550HARNESS
SURECOLOR SC-F62002148220551HARNESS
SURECOLOR SC-F62001620481552SHEET,GUIDE PLATE,TUBU,UPPER,44
SURECOLOR SC-F62001625053553SHEET,GUIDE PLATE,TUBU,MIDDLE,44
SURECOLOR SC-F62001579797554SHEET,GUIDE PLATE,TUBU,LOWER,44
SURECOLOR SC-F62001560762555COVER,CR
SURECOLOR SC-F62001573729556TIMING BELT,PF
SURECOLOR SC-F62001588584557SCALE,CR,44,ASP
SURECOLOR SC-F62002143866558FFC,CSIC,CN5-FULL
SURECOLOR SC-F6200FA12100560PRINT HEAD,ID7560-10
SURECOLOR SC-F62001568042561GUIDE,ROLL PAPER,SUPPORT
SURECOLOR SC-F62002142803562SENSOR ASSY.,C
SURECOLOR SC-F62002142120563HARNESS
SURECOLOR SC-F62002142122564HARNESS
SURECOLOR SC-F62002142129565HARNESS
SURECOLOR SC-F62002193750565HARNESS
SURECOLOR SC-F62002142132566HARNESS
SURECOLOR SC-F62002142143567HARNESS
SURECOLOR SC-F62002142151568HARNESS
SURECOLOR SC-F62002142152569HARNESS
SURECOLOR SC-F62002142154570HARNESS
SURECOLOR SC-F62002144083571BOARD ASSY.,SUB
SURECOLOR SC-F62001568045572COVER,LEVER,ATC,ROLL
SURECOLOR SC-F62001564787573PAD,MAINTENANCE COVER
SURECOLOR SC-F62001568044574LEVER,ATC,ROLL,SUB
SURECOLOR SC-F62001568043575LEVER,ATC,ROLL
SURECOLOR SC-F62002142334576HARNESS
SURECOLOR SC-F62001717541580POROUS PAD,PAPER GUIDE,FRONT
SURECOLOR SC-F62001573739581POROUS PAD,PAPER GUIDE,FRONT,B
SURECOLOR SC-F62001559877583MIDDLE FULCRUM,ROLLER,PF
SURECOLOR SC-F62001865745583MIDDLE FULCRUM,ROLLER,PF
SURECOLOR SC-F62001640311585SHEET,ASSY,44,ASP
SURECOLOR SC-F62001619992586SHEET,FFC,SUPPORT,UNDER,44
SURECOLOR SC-F62001568046618BASE,LEVER,ATC,ROLL
SURECOLOR SC-F62001656122621SHEET,FFC,CARRIAGE,SUB,B
SURECOLOR SC-F62001573753626TORSION SPRING,0.483
SURECOLOR SC-F62001568039627LEVER,DETECTOR,ROLL PAPER
SURECOLOR SC-F62001559985629PAPER GUIDE,SUB,B
SURECOLOR SC-F62001559984630PAPER GUIDE,SUB
SURECOLOR SC-F62001487528631EXTENSION SPRING,3.0,B
SURECOLOR SC-F62001668342638FERRITE CORE ASSY.,ESL,ASP
SURECOLOR SC-F62001679569650HOLDER,SENSOR,ASSY.,ASP
SURECOLOR SC-F62001619650658HELICAL COMBINATION GEAR,14.494,8.28
SURECOLOR SC-F62002142795659HARNESS,DETECTOR,CUTTER
SURECOLOR SC-F62001568049660SHAFT,DRIVE,ATC,ROLL,B
SURECOLOR SC-F62001601087661ROLLER ASSY.,DRIVEN,ST ASP
SURECOLOR SC-F62001601509702SLIDER,SUB,642C0
SURECOLOR SC-F62001793012702SLIDER,SUB,642C0
SURECOLOR SC-F62001676926703INK SUPPLY TANK,SUB,642C0
SURECOLOR SC-F62001677851704SEAL,POUR SPOUT,642C0, ASP(1669967)
SURECOLOR SC-F62001685986705INK SUPPLY TANK,HDK,SUB,642C0
SURECOLOR SC-F62001764021705INK SUPPLY TANK,HDK,SUB,642C0
SURECOLOR SC-F62001729813707LABEL,INK POSITION,B
SURECOLOR SC-F62001651403708LABEL,INK POSITION,HDK
SURECOLOR SC-F62001593959709LABEL,SLIDER,4 COL,642C0
SURECOLOR SC-F62001656493710LABEL,SLIDER,HDK,642C0
SURECOLOR SC-F62001666011711STOPPER,INK EJECT BOTTLE
SURECOLOR SC-F62001677849714SEAL,POUR SPOUT,CUBE,HDK,642C0,ASP
SURECOLOR SC-F62001651404NON FIGCLEANING CARTRIDGE 14
SURECOLOR SC-F62001080614NON FIGGREASE G-26 (40GR)(B702600001)
SURECOLOR SC-F62001480655NON FIGGREASE G-71(BLUE)
SURECOLOR SC-F62001574337NON FIGGREASE,G-81
SURECOLOR SC-F62001516265NON FIGGREASE,G-84
SURECOLOR SC-F62001667192NON FIGINK CART.BOXED,BK,DYE,642C1,T811,AS
SURECOLOR SC-F62001698176NON FIGINK CART.BOXED,C,DYE,642C1,T811,AS
SURECOLOR SC-F62001698175NON FIGINK CART.BOXED,HDK,DYE,642C1,T811,AS
SURECOLOR SC-F62001698178NON FIGINK CART.BOXED,M,DYE,642C1,T811,AS
SURECOLOR SC-F62001698179NON FIGINK CART.BOXED,Y,DYE,642C1,T811,AS
SURECOLOR SC-F62001698173NON FIGINK PACK SET BOXED,HDK_M,DYE,AS
SURECOLOR SC-F62001617900NON FIGLABEL,CAUTION,EMERGENCY MESSAGE,F
SURECOLOR SC-F62001521154NON FIGOIL,O-17
SURECOLOR SC-F62001424364NON FIGP-THICK SENSOR POSITION JIG
SURECOLOR SC-F62001282355NON FIGPAPER THICKNESS POSITION TOOL
SURECOLOR SC-F62001640645NON FIGSONIC TENSION METER U508

Related Products
Check items to add to the cart or

  1. EPSON SC-F6000 F6200 F6300 / F6070 F6270 F6370 DUCT ASSY.,CR,ASP / Damper ASSY - 1687446 / 1604244

    EPSON SC-F6000 F6200 F6300 / F6070 F6270 F6370 DUCT ASSY.,CR,ASP / Damper ASSY - 1687446 / 1604244
    $115.00
    Compare

  2. EPSON F6000 F6070 F6200 F6270 F6300 F6370 / F7000 F7070 F7100 F7170 F7200 F7270 / B6000 B6070 B7000 B7070 Print Head - FA12100 / FA12082

    EPSON F6000 F6070 F6200 F6270 F6300 F6370 / F7000 F7070 F7100 F7170 F7200 F7270 / B6000 B6070 B7000 B7070 Print Head - FA12100 / FA12082
    $1,880.00
    Compare

  3. EPSON B6000 B6070 F6000 F6070 F6200 F6270 F6300 F6370 F6400 F6470 T5000 T5070 T5200 T5270 T7000 T7070 T7200 T7270 CR Motor - 2142796

    EPSON B6000 B6070 F6000 F6070 F6200 F6270 F6300 F6370 F6400 F6470 T5000 T5070 T5200 T5270 T7000 T7070 T7200 T7270 CR Motor - 2142796
    $113.00
    Compare

  4. EPSON SureColor F6200 F6000 F6070 B6000 B6070 Service Manual

    EPSON SureColor F6200 F6000 F6070 B6000 B6070 Service Manual
    $9.90
    Compare
Upsell Products

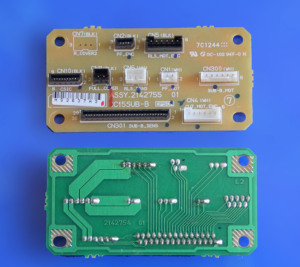

  1. EPSON B6000 F6000 F6200 F6300 / T3000 T5000 T7000 / T3200 T5200 T7200 SUB-B BOARD - 2144083

    EPSON B6000 F6000 F6200 F6300 / T3000 T5000 T7000 / T3200 T5200 T7200 SUB-B BOARD - 2144083
    $29.80
    Compare

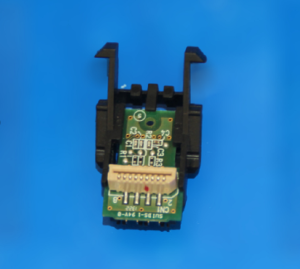

  2. EPSON B6000/F6000/F6200 T3000/T5000/T7000 T3200/T5200/T7200 CONNECTOR,CSIC - 2139742 + 2150679

    EPSON B6000/F6000/F6200 T3000/T5000/T7000 T3200/T5200/T7200 CONNECTOR,CSIC - 2139742 + 2150679
    $22.00
    Compare

  3. EPSON B6000 F6000 F6200 F6300 / T7000 T7200 T7200D CR BELT 44 - 1560744

    EPSON B6000 F6000 F6200 F6300 / T7000 T7200 T7200D CR BELT 44 - 1560744
    $62.00
    Compare

Default Category

    All CategoriesClose
    EPSON SureColor F6200 F6270 Parts Manual
