EPSON SureColor F6000 F6070 Parts Manual
In stock
SKU
EP-F6000-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor F6000 F6070 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 6.3M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F6000 F6070 Series |
****** The following content is not included in the PDF manual, please use it online ******

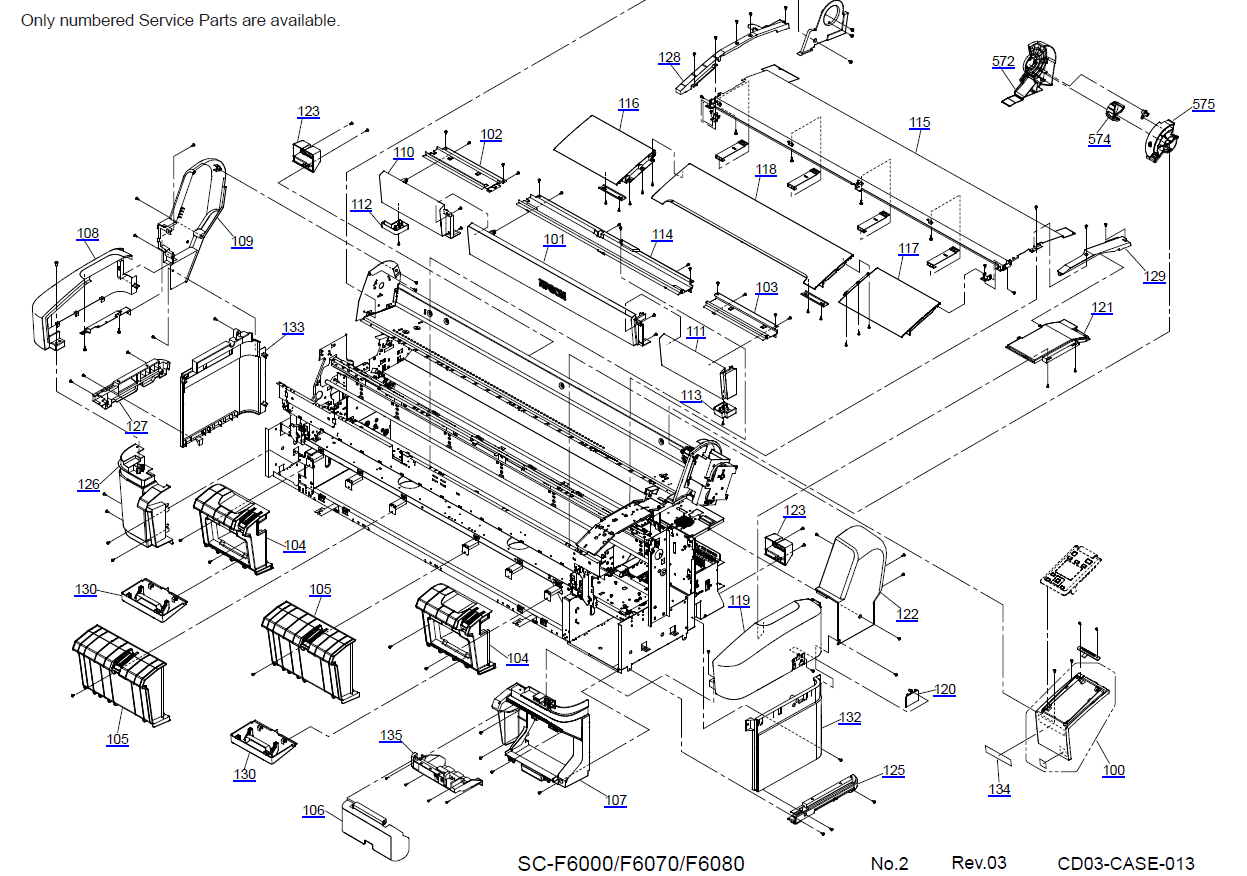

| Model | Article | Reference | Description |
| SURECOLOR SC-F6000 | 1588075 | 1 | STAND,RIGHT,FULL.ASSY.,ESL,ASP |
| SURECOLOR SC-F6000 | 1588076 | 2 | STAND,LEFT,FULL.ASSY.,ESL,ASP |
| SURECOLOR SC-F6000 | 1605808 | 7 | SCREW ASSY,ASP |
| SURECOLOR SC-F6000 | 1560763 | 8 | STAND,TOP,RIGHT |
| SURECOLOR SC-F6000 | 1560765 | 9 | STAND,TOP,LEFT |
| SURECOLOR SC-F6000 | 1573820 | 10 | CASTER,P-50G |
| SURECOLOR SC-F6000 | 1604239 | 100 | HOUSING,PANEL,LOWER,ASSY,ASP |
| SURECOLOR SC-F6000 | 1588066 | 101 | COVER,FRONT,ASSY,ASP |
| SURECOLOR SC-F6000 | 1603856 | 102 | COVER,INNER,LEFT,44,ASSY,B,.ASP |
| SURECOLOR SC-F6000 | 1603857 | 103 | COVER,INNER,RIGHT,44,ASSY,B.,ASP |
| SURECOLOR SC-F6000 | 1588045 | 104 | PAPER GUIDE LOWER ASSY.,ESL,ASP |
| SURECOLOR SC-F6000 | 1588047 | 105 | PAPER GUIDE LOWER,B,ASSY.,ESL,ASP |
| SURECOLOR SC-F6000 | 1598192 | 106 | COVER,IH,B SDOTT |
| SURECOLOR SC-F6000 | 1563150 | 107 | HOLDER,IH |
| SURECOLOR SC-F6000 | 1552192 | 108 | COVER,SIDE,LEFT,UPPER |
| SURECOLOR SC-F6000 | 1563166 | 109 | COVER,SIDE,ROLL,LEFT |
| SURECOLOR SC-F6000 | 1573821 | 11 | CASTER,P-50GS |
| SURECOLOR SC-F6000 | 1563170 | 110 | COVER,FRONT,SUB,LEFT,44 |
| SURECOLOR SC-F6000 | 1563172 | 111 | COVER,FRONT,SUB,RIGHT,44 |
| SURECOLOR SC-F6000 | 1563158 | 112 | COVER,FRONT,LEFT |
| SURECOLOR SC-F6000 | 1563159 | 113 | COVER,FRONT,RIGHT |
| SURECOLOR SC-F6000 | 1563173 | 114 | COVER,INNER |
| SURECOLOR SC-F6000 | 1606893 | 115 | COVER,TOP,BASE,44 |
| SURECOLOR SC-F6000 | 1563168 | 116 | COVER,PRINTER,SUB,LEFT,44 |
| SURECOLOR SC-F6000 | 1563169 | 117 | COVER,PRINTER,SUB,RIGHT,44 |
| SURECOLOR SC-F6000 | 1602024 | 118 | COVER,PRINTER |
| SURECOLOR SC-F6000 | 1552189 | 119 | COVER,SIDE,RIGHT,UPPER |
| SURECOLOR SC-F6000 | 1560601 | 120 | CAP,CR,ADJUST |
| SURECOLOR SC-F6000 | 1563161 | 121 | COVER,TOP,RIGHT |
| SURECOLOR SC-F6000 | 1563165 | 122 | COVER,SIDE,ROLL,RIGHT |
| SURECOLOR SC-F6000 | 1573788 | 123 | CAP,COVER,REAR |
| SURECOLOR SC-F6000 | 1563152 | 125 | COVER,BASE,RIGHT |
| SURECOLOR SC-F6000 | 1563153 | 126 | COVER,FRONT,LEFT,LOWER |
| SURECOLOR SC-F6000 | 1563154 | 127 | COVER,BASE,LEFT |
| SURECOLOR SC-F6000 | 1563162 | 128 | COVER,TOP,LEFT |
| SURECOLOR SC-F6000 | 1563163 | 129 | COVER,TOP,SUPPORT,RIGHT |
| SURECOLOR SC-F6000 | 1573784 | 130 | COVER,TANK,INK EJECT |
| SURECOLOR SC-F6000 | 1573791 | 132 | COVER,SIDE,RIGHT,LOWER |
| SURECOLOR SC-F6000 | 1573792 | 133 | COVER,SIDE,LEFT,LOWER |
| SURECOLOR SC-F6000 | 1591694 | 134 | LABEL,MODEL NAME |
| SURECOLOR SC-F6000 | 1598191 | 135 | HOLDER,IH,SUPPORT |
| SURECOLOR SC-F6000 | 2150882 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F6000 | 2158445 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F6000 | 2158460 | 201 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F6000 | 2144080 | 201 | Replace: 2158460 |
| SURECOLOR SC-F6000 | 2150883 | 202 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F6000 | 2130944 | 203 | HARNESS |
| SURECOLOR SC-F6000 | 2142118 | 204 | HARNESS |
| SURECOLOR SC-F6000 | 2142119 | 205 | HARNESS |
| SURECOLOR SC-F6000 | 2142121 | 206 | HARNESS |
| SURECOLOR SC-F6000 | 2142123 | 207 | HARNESS |
| SURECOLOR SC-F6000 | 2142124 | 208 | HARNESS |
| SURECOLOR SC-F6000 | 2142148 | 209 | HARNESS |
| SURECOLOR SC-F6000 | 2142161 | 210 | DC FAN SET |
| SURECOLOR SC-F6000 | 2142157 | 211 | HARNESS |
| SURECOLOR SC-F6000 | 2142158 | 212 | HARNESS |
| SURECOLOR SC-F6000 | 2142125 | 213 | HARNESS |
| SURECOLOR SC-F6000 | 2145945 | 300 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F6000 | 1588059 | 500 | SCALE,PF,UNIT,ESL,ASP |
| SURECOLOR SC-F6000 | 1604241 | 501 | HOLDER ASSY.,IC,ASP |
| SURECOLOR SC-F6000 | 1648927 | 501 | HOLDER ASSY.,IC,ASP |
| SURECOLOR SC-F6000 | 1518317 | 502 | SEAL RUBBER,JOINT,ASP |
| SURECOLOR SC-F6000 | 1604244 | 503 | DUCT ASSY.,CR,ASP |
| SURECOLOR SC-F6000 | 1574117 | 504 | WIPER.,ASSY ESL,ASP |
| SURECOLOR SC-F6000 | 1598963 | 505 | Replace: 1613445 |
| SURECOLOR SC-F6000 | 1613445 | 505 | POROUS PAD,WIPER,CLEANER,ASP |
| SURECOLOR SC-F6000 | 1604242 | 506 | PUMP CAP ASSY,ASP |
| SURECOLOR SC-F6000 | 1588039 | 507 | FAN ASSY.,ABSORPTION,ASSY.,ESL,ASP |
| SURECOLOR SC-F6000 | 1604243 | 508 | CR,44,ASSY.,ST ESL,ASP |
| SURECOLOR SC-F6000 | 1480133 | 509 | PULLEY,DRIVEN |
| SURECOLOR SC-F6000 | 1480177 | 510 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F6000 | 2143464 | 511 | PHOTO INTERRUPTER |
| SURECOLOR SC-F6000 | 1560744 | 512 | TIMING BELT,CR,44 |
| SURECOLOR SC-F6000 | 2084550 | 513 | BOARD ASSY.,INK MARK |
| SURECOLOR SC-F6000 | 2109393 | 514 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-F6000 | 2142139 | 515 | HARNESS |
| SURECOLOR SC-F6000 | 2142140 | 516 | HARNESS |
| SURECOLOR SC-F6000 | 2142141 | 517 | HARNESS |
| SURECOLOR SC-F6000 | 2142142 | 518 | HARNESS |
| SURECOLOR SC-F6000 | 2144073 | 519 | BOARD ASSY.,SUB |
| SURECOLOR SC-F6000 | 1588061 | 520 | MOTOR,APG,ASSY.,ESL,ASP |
| SURECOLOR SC-F6000 | 2130110 | 521 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-F6000 | 2142149 | 522 | HARNESS |
| SURECOLOR SC-F6000 | 1605864 | 523 | INTER KOCK,ASSY B.,ESL,ASP |
| SURECOLOR SC-F6000 | 1628277 | 524 | CUTTER,44,ASSY.,ESL,ASP |
| SURECOLOR SC-F6000 | 1588051 | 524 | Replace: 1628277 |
| SURECOLOR SC-F6000 | 1588067 | 525 | TUBE,CR,44,ASSY.,ESL,ASP |
| SURECOLOR SC-F6000 | 1588040 | 526 | PANEL,ASSY.,ESL,ASP |
| SURECOLOR SC-F6000 | 1588063 | 528 | OIL PAD ASSY ,ASP |
| SURECOLOR SC-F6000 | 2139742 | 529 | CONNECTOR,CSIC |
| SURECOLOR SC-F6000 | 2150679 | 530 | BOARD ASSY.,SUB |
| 6648B,ASP STANDARD | |||
| SURECOLOR SC-F6000 | 2142156 | 531 | HARNESS |
| SURECOLOR SC-F6000 | 2142796 | 532 | MOTOR ASSY.,CR |
| SURECOLOR SC-F6000 | 2142147 | 533 | HARNESS |
| SURECOLOR SC-F6000 | 2142146 | 534 | HARNESS |
| SURECOLOR SC-F6000 | 2142800 | 535 | MOTOR ASSY.,PF |
| SURECOLOR SC-F6000 | 2133325 | 536 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F6000 | 2142144 | 537 | HARNESS |
| SURECOLOR SC-F6000 | 2142155 | 538 | HARNESS |
| SURECOLOR SC-F6000 | 2142153 | 539 | HARNESS |
| SURECOLOR SC-F6000 | 2120015 | 540 | MOTOR ASSY.,REWIND |
| SURECOLOR SC-F6000 | 2140024 | 542 | SENSOR ASSY.,B |
| SURECOLOR SC-F6000 | 2140022 | 543 | SENSOR ASSY. |
| SURECOLOR SC-F6000 | 2142892 | 544 | BOARD ASSY.,PANEL |
| SURECOLOR SC-F6000 | 2142331 | 545 | HARNESS |
| SURECOLOR SC-F6000 | 1573711 | 546 | SHEET,GUIDE,FFC,UPPER,44 |
| SURECOLOR SC-F6000 | 1620479 | 546 | SHEET,GUIDE,FFC,UPPER,44 |
| SURECOLOR SC-F6000 | 1573712 | 547 | SHEET,GUIDE,FFC,LOWER,44 |
| SURECOLOR SC-F6000 | 1579786 | 548 | SHIELD PLATE,FFC,44 |
| SURECOLOR SC-F6000 | 1619991 | 548 | SHIELD PLATE,FFC,44 |
| SURECOLOR SC-F6000 | 2142134 | 549 | HARNESS |
| SURECOLOR SC-F6000 | 2142136 | 550 | HARNESS |
| SURECOLOR SC-F6000 | 2148220 | 551 | HARNESS |
| SURECOLOR SC-F6000 | 1579795 | 552 | SHEET,GUIDE PLATE,TUBU,UPPER,44 |
| SURECOLOR SC-F6000 | 1579796 | 553 | SHEET,GUIDE PLATE,TUBU,MIDDLE,44 |
| SURECOLOR SC-F6000 | 1625053 | 553 | SHEET,GUIDE PLATE,TUBU,MIDDLE,44 |
| SURECOLOR SC-F6000 | 1579797 | 554 | SHEET,GUIDE PLATE,TUBU,LOWER,44 |
| SURECOLOR SC-F6000 | 1560762 | 555 | COVER,CR |
| SURECOLOR SC-F6000 | 1573729 | 556 | TIMING BELT,PF |
| SURECOLOR SC-F6000 | 1588584 | 557 | SCALE,CR,44,ASP |
| SURECOLOR SC-F6000 | 2143866 | 558 | FFC,CSIC,CN5-FULL |
| SURECOLOR SC-F6000 | 1564338 | 559 | TUBE,INK EJECT |
| SURECOLOR SC-F6000 | FA12000 | 560 | LFP PRINT HEAD,ID7560 |
| SURECOLOR SC-F6000 | FA12020 | 560 | LFP PRINT HEAD,ID7560 |
| SURECOLOR SC-F6000 | 1598190 | 561 | GUIDE,ROLL PAPER,SUPPORT |
| SURECOLOR SC-F6000 | 2142803 | 562 | SENSOR ASSY.,C |
| SURECOLOR SC-F6000 | 2142120 | 563 | HARNESS |
| SURECOLOR SC-F6000 | 2142122 | 564 | HARNESS |
| SURECOLOR SC-F6000 | 2142129 | 565 | HARNESS |
| SURECOLOR SC-F6000 | 2142132 | 566 | HARNESS |
| SURECOLOR SC-F6000 | 2142143 | 567 | HARNESS |
| SURECOLOR SC-F6000 | 2142151 | 568 | HARNESS |
| SURECOLOR SC-F6000 | 2142152 | 569 | HARNESS |
| SURECOLOR SC-F6000 | 2142154 | 570 | HARNESS |
| SURECOLOR SC-F6000 | 2144083 | 571 | BOARD ASSY.,SUB |
| SURECOLOR SC-F6000 | 1568045 | 572 | COVER,LEVER,ATC,ROLL |
| SURECOLOR SC-F6000 | 1568044 | 574 | LEVER,ATC,ROLL,SUB |
| SURECOLOR SC-F6000 | 1568043 | 575 | LEVER,ATC,ROLL |
| SURECOLOR SC-F6000 | 1582821 | NON FIG | CLEANING CARTRIDGE |
| SURECOLOR SC-F6000 | 1598657 | NON FIG | Replace: 1630421 |
| SURECOLOR SC-F6000 | 1598658 | NON FIG | Replace: 1630422 |
| SURECOLOR SC-F6000 | 1598659 | NON FIG | Replace: 1630423 |
| SURECOLOR SC-F6000 | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) |
| SURECOLOR SC-F6000 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| SURECOLOR SC-F6000 | 1574337 | NON FIG | GREASE,G-81 |
| SURECOLOR SC-F6000 | 1516265 | NON FIG | GREASE,G-84 |
| SURECOLOR SC-F6000 | 1630421 | NON FIG | INK CART.BOXED,BK,DYE,642C1,T811,700AS |
| SURECOLOR SC-F6000 | 1630422 | NON FIG | INK CART.BOXED,C,DYE,642C1,T811,700AS SDOTT |
| SURECOLOR SC-F6000 | 1630423 | NON FIG | INK CART.BOXED,M,DYE,642C1,T811,700AS |
| SURECOLOR SC-F6000 | 1598660 | NON FIG | INK CART.BOXED,Y,DYE,642C1,T811,700AS |
| SURECOLOR SC-F6000 | 1630424 | NON FIG | INK CART.BOXED,Y,DYE,642C1,T811,700AS |
| SURECOLOR SC-F6000 | 1521154 | NON FIG | OIL,O-17 |
| 09-001 #F1043 | |||
| SURECOLOR SC-F6000 | 1424364 | NON FIG | P-THICK SENSOR POSITION JIG |
| SURECOLOR SC-F6000 | 1282355 | NON FIG | PAPER THICKNESS POSITION TOOL |
| SURECOLOR SC-F6000 | 1294120 | NON FIG | SONIC TENSION METER U507 |
