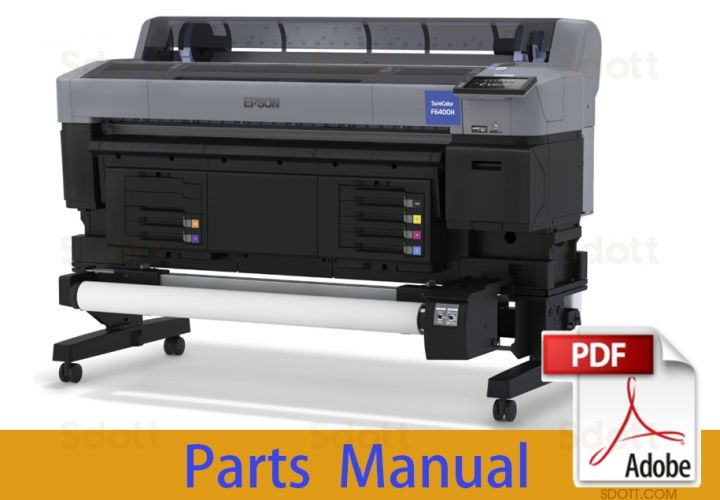

EPSON SC F6400H F6430H F6440H F6450H F6460H F6470H Parts Manual

In stock
SKU
EP-F6400H-PM
$1.60
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

After payment, download link email will be sent to your emailbox
$1.60
More Information
Manual Name EPSON SC F6400H F6430H F6440H F6450H F6460H F6470H Parts Manual
Format PDF
PDF Archive 9.66M
Pages 8
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor F6400 F6430 F6440 F6450 F6460 F6470

EPSON SC F6400H F6430H F6440H F6450H F6460H F6470H Parts Manual







*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******



SURECOLOR SC-F6400H18995061STAND,RIGHT.ASSY,ESL,ASP
SURECOLOR SC-F6400H18995072STAND,LEFT.ASSY,ESL,ASP
SURECOLOR SC-F6400H17996187SCREW ASSY,ASP
SURECOLOR SC-F6400H171464110CASTER,KIT,P60HG,ASP
SURECOLOR SC-F6400H1799612101COVER,FRONT,C,CH66 ASSY,ASP
SURECOLOR SC-F6400H1799613102COVER,INNER,LEFT,44,C,CH66 ASSY,ASP
SURECOLOR SC-F6400H1799614103COVER,INNER,RIGHT,44,C,CH66 ASSY,ASP
SURECOLOR SC-F6400H1899523104COVER,IR,FRONT,SIDE,ASSY.,6C,ESL,ASP
SURECOLOR SC-F6400H1770939105COVER,FRONT,SUB,LEFT,44,C
SURECOLOR SC-F6400H1880556106COVER,IH,B
SURECOLOR SC-F6400H1719403107HOLDER,IH,E
SURECOLOR SC-F6400H1770933108COVER,SIDE,LEFT,UPPER,D
SURECOLOR SC-F6400H1770929109COVER,SIDE,ROLL,LEFT,C
SURECOLOR SC-F6400H171464211CASTER,KIT,P60HGS,ASP
SURECOLOR SC-F6400H1886940110COVER,SIDE,RIGHT,LOWER,D
SURECOLOR SC-F6400H1880285111COVER,BASE,IR,RIGHT
SURECOLOR SC-F6400H1880288112COVER,BASE,IR,LEFT
SURECOLOR SC-F6400H1880283113COVER,IR,FRONT,MIDDLE
SURECOLOR SC-F6400H1880282114PAPER GUIDE,LOWER
SURECOLOR SC-F6400H1919236114PAPER GUIDE,LOWER
SURECOLOR SC-F6400H1606893115COVER,TOP,BASE,44
SURECOLOR SC-F6400H1620536116COVER,PRINTER,SUB,LEFT,44
SURECOLOR SC-F6400H1897076117COVER,PRINTER,SUB,RIGHT,44,B
SURECOLOR SC-F6400H1899512118COVER,PRINTER Assy.,ASP
SURECOLOR SC-F6400H1880266119HOUSING,SIDE,RIGHT
SURECOLOR SC-F6400H1880270120HOUSING,CORNER,RIGHT
SURECOLOR SC-F6400H1770938121COVER,FRONT,SUB,RIGHT,44,C
SURECOLOR SC-F6400H1770925122COVER,SIDE,ROLL,RIGHT,C
SURECOLOR SC-F6400H1890713123LABEL,INK POSITION,6C
SURECOLOR SC-F6400H1563164124COVER,ROLL,44
SURECOLOR SC-F6400H1880279125COVER,BASE,RIGHT
SURECOLOR SC-F6400H1671120126COVER,FRONT,LEFT,LOWER,B
SURECOLOR SC-F6400H1880280127COVER,BASE,LEFT
SURECOLOR SC-F6400H1770931128COVER,TOP,LEFT,C
SURECOLOR SC-F6400H1770927129COVER,TOP,SUPPORT,RIGHT,C
SURECOLOR SC-F6400H1899511130COVER,MAINTENANCE ASSY,ASP
SURECOLOR SC-F6400H1771007132COVER,INNER,C
SURECOLOR SC-F6400H1577203133COVER,SIDE,LEFT,LOWER,B
SURECOLOR SC-F6400H1890716134LABEL,MODEL NAME,F6400H
SURECOLOR SC-F6400H1770937135COVER,TOP,LEFT,C
SURECOLOR SC-F6400H1857187136LABEL,PRECISIONCORE,H
SURECOLOR SC-F6400H1748665137LABEL,CAUTION,EMERGENCY MESSAGE,G
SURECOLOR SC-F6400H1804494138LABEL, ULTRA CHROME INK, DS 6
SURECOLOR SC-F6400H1890721139LABEL,MODEL NAME,F6470H
SURECOLOR SC-F6400H1903640140COVER,IR,FRONT,SIDE,ASSY.,HOME,ESL, ASP

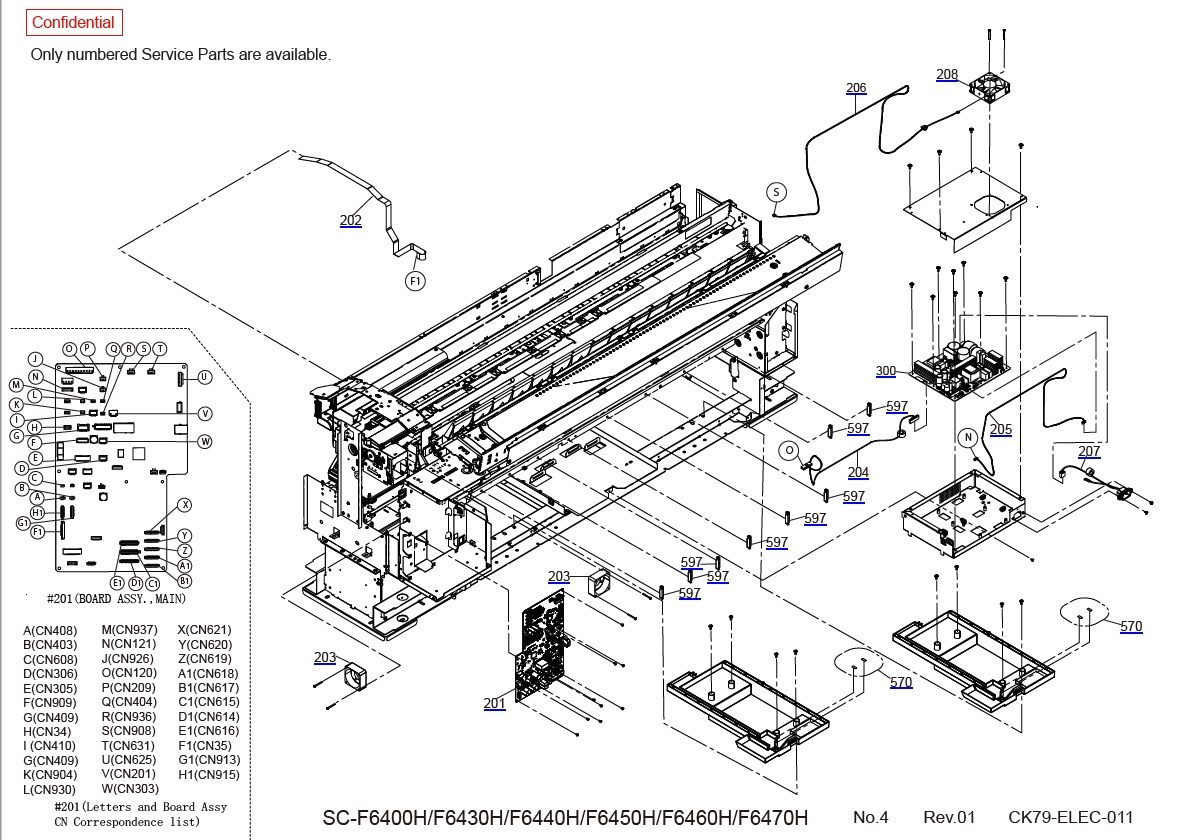

SURECOLOR SC-F6400H2221032201BOARD ASSY.,MAIN
SURECOLOR SC-F6400H2221557202HARNESS,MAIN-PNL-IF,FFC
SURECOLOR SC-F6400H2203867203FAN,COOLING,06025SS-24Q-AL-DE
SURECOLOR SC-F6400H2221547204HARNESS,MAIN-PSL,PW,2
SURECOLOR SC-F6400H2221545205HARNESS,MAIN-PSL,DC,2
SURECOLOR SC-F6400H2221544206HARNESS,RELAY,FAN,_PW
SURECOLOR SC-F6400H2221512207HARNESS,AC INLET
SURECOLOR SC-F6400H2203868208FAN,COOLING,08025SS-24Q-AL-D5
SURECOLOR SC-F6400H2221784300BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-F6400H184721649TUBE,GUIDE,ASSY.,ASP
SURECOLOR SC-F6400H166601050JOINT,INK EJECT,2
SURECOLOR SC-F6400H1588059500SCALE,PF,UNIT,ESL,ASP
SURECOLOR SC-F6400H1899502501SLOT ASSY.,PA4W,CK13, ASP
SURECOLOR SC-F6400H1518317502SEAL RUBBER,JOINT,ASP
SURECOLOR SC-F6400H1899516503ONCR ASSY,CK79, ASP
SURECOLOR SC-F6400H1899518504SUPPLY,TUBE,ASSY,CK79, ASP
SURECOLOR SC-F6400H2221539505HARNESS,SENSOR,APG_HP
SURECOLOR SC-F6400H1899513506PUMP,CAP,ASSY,CK13,CB, ASP
SURECOLOR SC-F6400H1665431507FAN ASSY.,ABSORPTION,ST ASSY.,ESL,ASP
SURECOLOR SC-F6400H1899519508CR,44,ASSY.,ESL,ASP
SURECOLOR SC-F6400H1480133509PULLEY,DRIVEN
SURECOLOR SC-F6400H2221569510HARNESS,RELAY,ENC,FFC1
SURECOLOR SC-F6400H2143464511PHOTO INTERRUPTER
SURECOLOR SC-F6400H1560744512TIMING BELT,CR,44
SURECOLOR SC-F6400H2183502513BOARD ASSY.,INK MARK,D
SURECOLOR SC-F6400H2109393514BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-F6400H2221570515HARNESS,RELAY,IMS,FFC1
SURECOLOR SC-F6400H2221538516HARNESS,SENSOR,PW
SURECOLOR SC-F6400H2221563517HARNESS,HEAD,FFC1
SURECOLOR SC-F6400H2221564518HARNESS,HEAD,FFC2
SURECOLOR SC-F6400H2221047519BOARD ASSY.,SUB
SURECOLOR SC-F6400H1693291520MOTOR,APG,ASSY EM.,ESL,ASP
SURECOLOR SC-F6400H2182572521MOTOR ASSY.,ASF,SUB
SURECOLOR SC-F6400H2221520522HARNESS,MOTOR,APG
SURECOLOR SC-F6400H1899524523INTER LOCK,ASSY,ESL, ASP
SURECOLOR SC-F6400H1899520524CUTTER,44,ASSY.,ESL,ASP
SURECOLOR SC-F6400H1899521525Tube Assy 4C.,CK13,ESL,ASP
SURECOLOR SC-F6400H1899522526PANEL,CK13 ASSY.,ESL,ASP
SURECOLOR SC-F6400H2221566527HARNESS,HEAD,FFC4
SURECOLOR SC-F6400H1588063528OIL PAD ASSY ,ASP
SURECOLOR SC-F6400H2221567529HARNESS,RELAY,SUB,FFC1
SURECOLOR SC-F6400H2221568530HARNESS,RELAY,SUB,FFC2
SURECOLOR SC-F6400H2221899531HARNESS,SENSOR,PE
SURECOLOR SC-F6400H2142796532MOTOR ASSY.,CR
SURECOLOR SC-F6400H2221692533HARNESS,SENSOR,RELEASE
SURECOLOR SC-F6400H2221521534HARNESS,MOTOR,RLS
SURECOLOR SC-F6400H2220463535MOTOR ASSY.,PF
SURECOLOR SC-F6400H2210270536BOARD ASSY.,ENCODER
SURECOLOR SC-F6400H2221561537HARNESS,ENCODER,PF
SURECOLOR SC-F6400H2142155538HARNESS www.sdott-parts.com
SURECOLOR SC-F6400H2221524539HARNESS,RELAY,SENSOR
SURECOLOR SC-F6400H2182573540MOTOR ASSY.,REWIND
SURECOLOR SC-F6400H2221516541HARNESS,MOTOR,CUTTER
SURECOLOR SC-F6400H1800110542JOINT,TUBE,INK EJECT
SURECOLOR SC-F6400H1706492543TORSION SPRING,32.9,CLAMP
SURECOLOR SC-F6400H1905794545DECOMPRESSION PUMP ASSY,A,CK13, ASP
SURECOLOR SC-F6400H1816484546JOINT,CR,SUPPLY
SURECOLOR SC-F6400H1602550547TORSION SPRING,TUBE,FASTEN,B
SURECOLOR SC-F6400H2221565548HARNESS,HEAD,FFC3
SURECOLOR SC-F6400H1899504549SLOT ASSY.,PA2W,CK79,ASP
SURECOLOR SC-F6400H2176012550SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F
SURECOLOR SC-F6400H2177061551BOARD ASSY.,ENCODER
SURECOLOR SC-F6400H1620481552SHEET,GUIDE PLATE,TUBU,UPPER,44
SURECOLOR SC-F6400H1625053553SHEET,GUIDE PLATE,TUBU,MIDDLE,44
SURECOLOR SC-F6400H1579797554SHEET,GUIDE PLATE,TUBU,LOWER,44
SURECOLOR SC-F6400H1880222555COVER,CR
SURECOLOR SC-F6400H1912006555COVER,CR
SURECOLOR SC-F6400H1573729556TIMING BELT,PF
SURECOLOR SC-F6400H1899526557SCALE,CR, ASP
SURECOLOR SC-F6400H2221044558BOARD ASSY.,INTERFACE
SURECOLOR SC-F6400H2221549559HARNESS,RELAY,HEAD,FFC1
SURECOLOR SC-F6400HFB01001560PRINT HEAD,PCT2-6C,ASP
SURECOLOR SC-F6400H1568042561GUIDE,ROLL PAPER,SUPPORT
SURECOLOR SC-F6400H2221550562HARNESS,RELAY,HEAD,FFC2
SURECOLOR SC-F6400H2221551563HARNESS,RELAY,HEAD,FFC3
SURECOLOR SC-F6400H2221552564HARNESS,RELAY,HEAD,FFC4
SURECOLOR SC-F6400H2221553565HARNESS,RELAY,HEAD,FFC5
SURECOLOR SC-F6400H2221554566HARNESS,RELAY,HEAD,FFC6
SURECOLOR SC-F6400H2221555567HARNESS,RELAY,HEAD,FFC7
SURECOLOR SC-F6400H2221556568HARNESS,RELAY,HEAD,FFC8
SURECOLOR SC-F6400H2142152569HARNESS
SURECOLOR SC-F6400H2186527570HARNESS,INK DETECTOR,IH,UPPER,ASSY
SURECOLOR SC-F6400H2221041571BOARD ASSY.,INTERFACE
SURECOLOR SC-F6400H1568045572COVER,LEVER,ATC,ROLL
SURECOLOR SC-F6400H1869152573PAD,MAINTENANCE COVER
SURECOLOR SC-F6400H1568044574LEVER,ATC,ROLL,SUB
SURECOLOR SC-F6400H1568043575LEVER,ATC,ROLL
SURECOLOR SC-F6400H2221515576HARNESS,RELAY,CUT MOT
SURECOLOR SC-F6400H2221517577HARNESS,RELAY,PF MOT
SURECOLOR SC-F6400H2221518578HARNESS,RELAY,ATC MOT
SURECOLOR SC-F6400H2221519579HARNESS,MOTOR,ATC
SURECOLOR SC-F6400H2221522580HARNESS,RELAY,MOTOR
SURECOLOR SC-F6400H2221523581HARNESS,RELAY,ENCODER
SURECOLOR SC-F6400H2221526582HARNESS,RELAY,DECOMP MOT
SURECOLOR SC-F6400H1842300583CENTER,SUPPORT,ROLLER,PF
SURECOLOR SC-F6400H2221527584HARNESS,RELAY,SENSOR,TRYLOCK
SURECOLOR SC-F6400H1899508585SHEET,ASSY,44,ASP
SURECOLOR SC-F6400H1619992586SHEET,FFC,SUPPORT,UNDER,44
SURECOLOR SC-F6400H2221530588HARNESS,RELAY,SENSOR,INKEND
SURECOLOR SC-F6400H2221533590HARNESS,RELAY,SENSOR,INK LEAK1
SURECOLOR SC-F6400H2221534591HARNESS,RELAY,SENSOR,INK LEAK2
SURECOLOR SC-F6400H2221535592HARNESS,RELAY,SENSOR,R,R,CR
SURECOLOR SC-F6400H2221540593HARNESS,RELAY,SENSOR,CUTTER_HP
SURECOLOR SC-F6400H2221541594HARNESS,RELAY,FAN,ADS_HOME
SURECOLOR SC-F6400H2221543595HARNESS,RELAY,FAN,_CR
SURECOLOR SC-F6400H1656332596RAIL,GUIDE,ROLL PAPER
SURECOLOR SC-F6400H1614411597FFC CLAMP,FC-30
SURECOLOR SC-F6400H1799625598COVER SIDER,U SENSOR ASSY.CH66,ESL,ASP
SURECOLOR SC-F6400H1799609600ROLL,FLANGE,ASSY.,CH66,ESL,ASP
SURECOLOR SC-F6400H1899525602TRAY,INK PACK,ASSY.,ESL,ASP
SURECOLOR SC-F6400H2221559603HARNESS,CRCM 1,FFC
SURECOLOR SC-F6400H2221560604HARNESS,CRCM 2,FFC
SURECOLOR SC-F6400H2221562605HARNESS,ENCODER,MNS
SURECOLOR SC-F6400H2221525606HARNESS,RELAY,INTERLOCK,MNS
SURECOLOR SC-F6400H1568046618BASE,LEVER,ATC,ROLL
SURECOLOR SC-F6400H1573753626TORSION SPRING,0.483
SURECOLOR SC-F6400H1568039627LEVER,DETECTOR,ROLL PAPER
SURECOLOR SC-F6400H1559985629PAPER GUIDE,SUB,B
SURECOLOR SC-F6400H1559984630PAPER GUIDE,SUB
SURECOLOR SC-F6400H1487528631EXTENSION SPRING,3.0,B
SURECOLOR SC-F6400H1880554632SHEET,FFC,SUPPORT,UNDER,B
SURECOLOR SC-F6400H1899509650HOLDER,SENSOR,ASSY.,ASP
SURECOLOR SC-F6400H1619650658HELICAL COMBINATION GEAR,14.494,8.28
SURECOLOR SC-F6400H2142795659HARNESS,DETECTOR,CUTTER
SURECOLOR SC-F6400H1568049660SHAFT,DRIVE,ATC,ROLL,B
SURECOLOR SC-F6400H1601087661ROLLER ASSY.,DRIVEN,ST ASP
SURECOLOR SC-F6400H2140023670MICRO SWICH ASSY.
SURECOLOR SC-F6400H1750841671PULLEY,DRIVEN ASSY ESL,ASP
SURECOLOR SC-F6400H1880247680PAPER GUIDE,FRONT
SURECOLOR SC-F6400H1880248681PAPER GUIDE,FRONT,B
SURECOLOR SC-F6400H1880249682PAPER GUIDE,FRONT,C
SURECOLOR SC-F6400H1880250683PAPER GUIDE,FRONT,D
SURECOLOR SC-F6400H1880251685PAPER GUIDE,FRONT,E
SURECOLOR SC-F6400H1807865688HOLDER,PE KIT ASSY,ASP
SURECOLOR SC-F6400H1815180701PANEL,SW,ASSY,ASP
SURECOLOR SC-F6400H1815183702BRAKE UNIT,LEFT,ASP
SURECOLOR SC-F6400H1815184703BRAKE UNIT,RIGHT,ASP
SURECOLOR SC-F6400H1480249704COMBINATION GEAR,19,60.8
SURECOLOR SC-F6400H1815182704HOLDER,ROLL PAPER ASSY RIGHT,ASP
SURECOLOR SC-F6400H1480247705COMBINATION GEAR,21.6,37.5
SURECOLOR SC-F6400H1902104706COVER,WINDER,DRIVE,B
SURECOLOR SC-F6400H2119916708HARNESS
SURECOLOR SC-F6400H2129965709BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-F6400H1508143710HARNESS,ASP
SURECOLOR SC-F6400H2208245711BOARD ASSY.,MAIN
SURECOLOR SC-F6400H2202148712HARNESS,WINDER,SW
SURECOLOR SC-F6400H1562632713C-RING(S),25,F/ZN-3C
SURECOLOR SC-F6400H1815181715HOLDER,ROLL PAPER ASSY LEFT,ASP
SURECOLOR SC-F6400H1283663716E-RING,3,F/UC-3C
SURECOLOR SC-F6400H1796897717SLIDER,SUPPROT
SURECOLOR SC-F6400H2120939719CABLE,MOTOR,WINDER
SURECOLOR SC-F6400H1797080721SLIDER,STAY
SURECOLOR SC-F6400H2202505722HERNESS,LED
SURECOLOR SC-F6400H1480234733SPUR GEAR, 72
