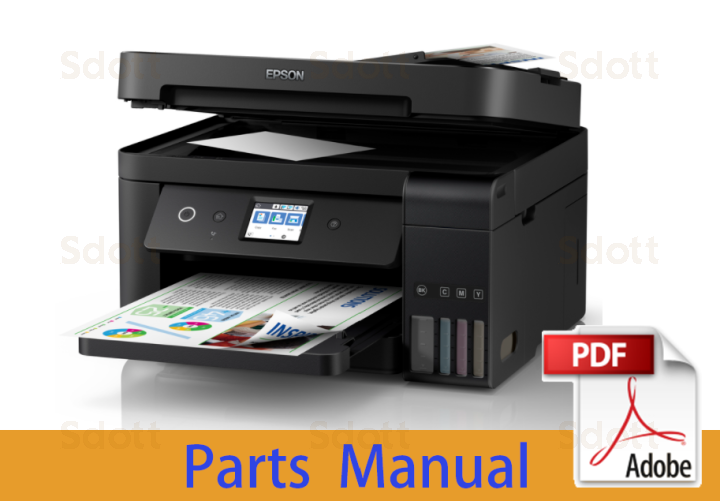

EPSON L6290 L6291 L6298 ET-4850 ET-4850U ST-C4100 EW-M674FT Parts Manual
In stock
SKU
EP-L6290-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON L6290 L6291 L6298 ET-4850 ET-4850U ST-C4100 EW-M674FT Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.25M |
| Pages | 6 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L6200 Series Epson ET-4800 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1717906 | 100 | STACKER,MAIN,FASF |
| 1717945 | 101 | HOUSING,LEFT |
| 1735624 | 102 | HOUSING FRONT ASSY.,CG19,EPPI,ASP |
| 1717944 | 104 | HOUSING,RIGHT |
| 1863112 | 105 | PANEL ASSY.,CJ60,EPPI |
| 1859475 | 106 | COVER,INK,EJECT,RPSK |
| 1717943 | 107 | HOUSING,UPPER,REAR,FASF |
| 1837399 | 109 | LABEL,MODEL NAME,ET-4850 |
| 1719344 | 111 | BUSH,PANEL,LEFT |
| 1717960 | 112 | BUSH,PANEL,RIGHIT |
| 1726420 | 117 | LABEL,Caution,EUR |
| 2215341 | 118 | HARNESS |
| 1717948 | 119 | COVER,TANK |
| 1845725 | 120 | LABEL,PrecisionCore,F1 |
| 1837349 | 121 | LABEL,eco tank |
| 1726407 | 122 | LABEL,Model,Ink,KCMY,EEB WE |
| 1284698 | 123 | H.N.-1,3,F/ZN-3C |
| 2217789 | 200 | BOARD ASSY.,MAIN |
| 2208565 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2207229 | 350 | WIRELESS LAN USB MODULE |
| 1839997 | 351 | FAX ASSY,CJ60,EPPI |
| 1760358 | 353 | POROUS PAD,CR,F2 |
| 1767046 | 501 | PICK UP ASSY.,CG20,EPPI |
| 1820584 | 503 | ASF BANK ASSY.,CH96,EPPI |
| 1868191 | 503 | ASF BANK ASSY.,CH96,EPPI |
| 1767156 | 504 | FRAME,BANK |
| 1720079 | 505 | PAPER GUIDE,GIZA,FRAME,BANK |
| 1741784 | 506 | PAPER GUIDE,CENTER,FRAME,BANK |
| 1717908 | 507 | POROUS PAD,PAPER GUIDE,LOWER |
| 1743613 | 508 | PAPER GUIDE FRONT ASSY.,CG29,EPPI |
| 2182527 | 509 | MOTOR ASSY.,CR |
| 1735625 | 510 | CARRIAGE M1 ASSY.,CG19,EPPI,ASP |
| 2181521 | 511 | BOARD ASSY.,SNS |
| 2182523 | 512 | CABLE,ENCORDER,CR |
| 2186560 | 513 | CABLE,HEAD |
| 1759427 | 514 | DETECTOR PE ASSY,CG22,EPPI |
| 1864167 | 515 | PGU RIGHT ASSY,CG19,EPPI |
| 1864168 | 516 | PGU LEFT ASSY,CG19,EPPI |
| 1548480 | 517 | EXTENSION SPRING,1.41 |
| 1717899 | 518 | SCALE,PF |
| 1750924 | 519 | SCALE,CR |
| 2181519 | 524 | BOARD ASSY.,ENCODER |
| 1717912 | 526 | GORUNDING PLATE,HEAD,CR |
| 1720073 | 528 | POROUS PAD,PAPER GUIDE,LOWER,B |
| 1720075 | 529 | POROUS PAD,PAPER GUIDE,LOWER,C |
| 1720076 | 530 | POROUS PAD,PAPER GUIDE,LOWER,D |
| 2182518 | 531 | CABLE,ENCORDER,PF |
| 2181517 | 532 | BOARD ASSY.,ENCODER |
| 1832107 | 534 | ROLLER,EJ ASSY,EPPI,ASP |
| 1694244 | 535 | ROLLER,UPPER,ASF |
| 1694160 | 536 | COMPRESSION SPRING,1.50 |
| 2186983 | 541 | MOTOR,ASSY,PF,B |
| 1790711 | 542 | ROLLER PF ASSY,CG20,EPPI |
| 1772596 | 543 | HOLDER,STAR WHEEL,B,ASSY,CG20,EPPI,ASP |
| 1797023 | 544 | DUP FRONT ASSY...,CG19,EPPI |
| 1693959 | 545 | DOUBLE SIDE TAPE,D10 |
| 1717884 | 546 | COMBINATION GEAR,20.75,16.8 |
| 1717886 | 547 | SPUR GEAR,18.6 |
| 1717887 | 548 | COMBINATION GEAR,,22.2,15.6 |
| 1717888 | 549 | SPUR GEAR,23.4 |
| 1733454 | 550 | FOOT,8x8 |
| 1598326 | 551 | FOOT |
| 1717864 | 555 | SLIDER,TRANSMISSION |
| 1734920 | 556 | SPACER,PG |
| 1724156 | 557 | DUAL ONE WAY CLUTCH ASSY,CG19,EPPI |
| 1717874 | 558 | SPUR GEAR,21.6 |
| 1717873 | 559 | SPUR GEAR,16 |
| 1694218 | 560 | SPUR GEAR,13.6 |
| 1717913 | 561 | HOLDER,FFC,CR |
| 1717920 | 562 | COVER,CR |
| 1835993 | 563 | HOLDER,CORE,FAX,W/W |
| 1724272 | 564 | FRONT ONE WAY CLUTCH ASSY.,CG19,EPPI |
| 1733455 | 566 | GROUND SPRING,ROLLER,PF |
| 1717866 | 567 | HOLDER,CAM |
| 1718387 | 568 | SPUR GEAR,14.4,PUMP,M1 |
| 1733352 | 569 | SHAFT,DRIVE,PICK UP |
| 1717849 | 570 | SHAFT.LEVER,RELEASE, PICK UP |
| 1717851 | 571 | TORSION SPRING,33.47 |
| 1717850 | 572 | SLIDER,RELEASE,PICK UP |
| 1717879 | 573 | TORSION SPRING,81.2 |
| 1717882 | 574 | EXTENSION SPRING,7.49 |
| 1871455 | 575 | PULLEY,DRIVEN ASSY.,CJ60,EPPI,ASP |
| 1283937 | 576 | C.B.P-TITE SCREW,2X8,F/ZN-3C |
| 1717881 | 577 | EXTENSION SPRING,9.53 |
| 1717880 | 578 | TORSION SPRING,81.2,B |
| 1840458 | 701 | HOLDER DAMPER ASSY.,CJ60,EPPI |
| 1717987 | 702 | RACK,DUMPER,SC |
| 1864579 | 703 | CASSETTE ASSY.,CJ60,EPPI |
| 1717922 | 704 | COVER,CABLE,HEAD |
| 1717929 | 705 | SHEET,GUIDE,TUBE |
| 1717930 | 706 | GUIDE,TUBE,SUPPLY,INK,2nd |
| 1720077 | 708 | SHEET,GUIDE,TUBE,SUPPORT |
| 1720078 | 709 | POROUS PAD,TANK,UPPER |
| 1735629 | 710 | IS M1 ASSY.,CG19,EPPI,ASP |
| 1865191 | 712 | DUPLEX ASSY.,CJ60,EPPI,ASP |
| 1724140 | 713 | TANK ASSY BK,CG19,EPPI |
| 1724141 | 714 | TANK ASSY CL,CG19,EPPI |
| 1724142 | 715 | TUBE SUPPLY INK ASSY,CG19,EPPI |
| 1724143 | 716 | ADAPTER ASSY BK,CG19,EPPI |
| 1724144 | 717 | ADAPTER ASSY CL,CG19,EPPI |
| 1754376 | 718 | KEY SLOT ML ASSY.,CG19,EPPI,ASP |
| 1741765 | 723 | HOLDER,CONNECTOR,CSIC,IS |
| 2184967 | 726 | CONNECTOR,CSIC |
| 1717927 | 727 | PRESSING PLATE,TUBE |
| 1760357 | 729 | POROUS PAD,CR,u1 |
| 1694173 | 730 | SHEET,PAPER GUIDE,ASF |
| 2185770 | 731 | CABLE,CSIC,INK EJECT,B |
| 1733361 | 748 | HOLDER,HOUSING,INK EJECT,B |
| 2215822 | 800 | SCANNER ADF UNIT .,CJ60,EPPIASP |
| 1694135 | 801 | MAT,COVER,DOCUMENT |
| 2189688 | 805 | HARNESS,DETECTOR,SC |
| 2189689 | 806 | CABLE,ENCODER,SC |
| 2182805 | 809 | MOTOR ASSY.,SC |
| 1865197 | 810 | CIS MODULE ASSY.,CJ60,ASP,EPPI |
| 1717974 | 811 | COVER,GEAR,SC |
| 1717985 | 813 | COVER,HINGE,SC |
| 1865195 | 900 | ADF ASSY.,CJ61,EPPIASP |
| 1876532 | 900 | ADF ASSY.,CJ61,EPPIASP |
| 1718007 | 901 | COVER,DOCUMENT SUPPORT,ADF |
| 1859472 | 901 | COVER,DOCUMENT SUPPORT,ADF |
| 1718011 | 902 | DOCUMENT SUPPORT,ADF |
| 1724258 | 903 | PGU LD ADF ASSY.,CG19,EPPI |
| 1724316 | 904 | STACKER ADF ASSY.,CG19,EPPI |
| 1859474 | 905 | STACKER,SUB,ADF,RPSK |
| 1724257 | 907 | PAD ADF ASSY.,CG19,EPPI |
| 1740240 | 908 | COMPRESSION SPRING,1.45 |
| 1718014 | 909 | COVER,BASE,ADF |
| 1718012 | 910 | SHEET,ADF,PAPER GUIDE |
