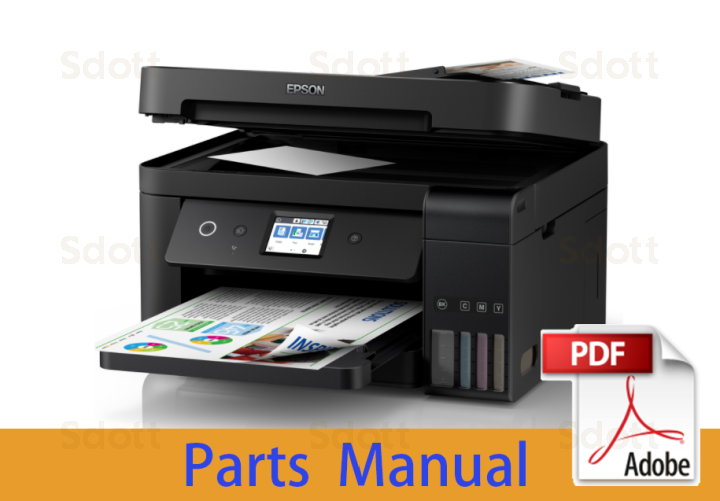

EPSON L6190 L6091 L6198 ET-4750 ET-4760 EW-M670FT Parts Manual
In stock
SKU
EP-L6190-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON L6190 L6091 L6198 ET-4750 ET-4760 EW-M670FT Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.11M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L6000 Series Epson L6100 Series Epson ET-4700 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1717906 | 100 | STACKER,MAIN,FASF |
| 1717945 | 101 | HOUSING,LEFT |
| 1735624 | 102 | HOUSING FRONT ASSY.,CG19,EPPI,ASP |
| 1717985 | 103 | COVER,HINGE,SC |
| 1717944 | 104 | HOUSING,RIGHT |
| 1724318 | 105 | PANEL ASSY.,CG19,EPPI |
| 1814573 | 105 | PANEL ASSY.,CG19,EPPI |
| 1837890 | 105 | PANEL ASSY.,CG19,EPPI |
| 1732848 | 106 | Cover,Ink,Eject |
| 1717943 | 107 | HOUSING,UPPER,REAR,FASF |
| 2192268 | 200 | BOARD ASSY.,MAIN |
| 2214090 | 200 | BOARD ASSY.,MAIN |
| 2195631 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2192161 | 350 | WIRELESS LAN USB MODULE |
| 1797195 | 351 | FAX ASSY C..,CG19,EPPI |
| 1767046 | 501 | PICK UP ASSY.,CG20,EPPI |
| 1790715 | 503 | ASF BANK ASSY.,CG20,EPPI |
| 1801803 | 503 | ASF BANK ASSY.,CG20,EPPI |
| 1572114 | 504 | FRAME,BANK |
| 1720079 | 505 | PAPER GUIDE,GIZA,FRAME,BANK |
| 1741784 | 506 | PAPER GUIDE,CENTER,FRAME,BANK |
| 1717908 | 507 | POROUS PAD,PAPER GUIDE,LOWER |
| 1724183 | 508 | PAPER GUIDE FRONT M1 ASSY.,CG19,EPPI |
| 2182527 | 509 | MOTOR ASSY.,CR |
| 1735625 | 510 | CARRIAGE M1 ASSY.,CG19,EPPI,ASP |
| 2181521 | 511 | BOARD ASSY.,SNS |
| 2182523 | 512 | CABLE,ENCORDER,CR |
| 2186560 | 513 | CABLE,HEAD |
| 1759427 | 514 | DETECTOR PE ASSY,CG22,EPPI |
| 1724136 | 515 | PGU RIGHT ASSY,CG19,EPPI |
| 1864167 | 515 | PGU RIGHT ASSY,CG19,EPPI |
| 1724137 | 516 | PGU LEFT ASSY,CG19,EPPI |
| 1864168 | 516 | PGU LEFT ASSY,CG19,EPPI |
| 1548480 | 517 | EXTENSION SPRING,1.41 |
| 1717899 | 518 | SCALE,PF |
| 1750924 | 519 | SCALE,CR |
| 2181519 | 524 | BOARD ASSY.,ENCODER |
| 1717912 | 526 | GORUNDING PLATE,HEAD,CR |
| 1720073 | 528 | POROUS PAD,PAPER GUIDE,LOWER,B |
| 1720075 | 529 | POROUS PAD,PAPER GUIDE,LOWER,C |
| 1720076 | 530 | POROUS PAD,PAPER GUIDE,LOWER,D |
| 1717901 | 534 | ROLLER,EJ |
| 1832107 | 534 | ROLLER,EJ |
| 1694160 | 536 | COMPRESSION SPRING,1.50 |
| 2186983 | 541 | MOTOR,ASSY,PF,B |
| 1717883 | 542 | ROLLER,PF |
| 1772596 | 543 | HOLDER,STAR WHEEL,B,ASSY,CG20,EPPI,ASP |
| 1767047 | 701 | HOLDER DAMPER ASSY.,CG23,EPPI |
| 1717987 | 702 | RACK,DUMPER,SC |
| 1752916 | 703 | CASSETTE ASSY.,CG19,EPPI |
| 1861414 | 703 | CASSETTE ASSY.,CG19,EPPI |
| 1717922 | 704 | COVER,CABLE,HEAD |
| 1717929 | 705 | SHEET,GUIDE,TUBE |
| 1717930 | 706 | GUIDE,TUBE,SUPPLY,INK,2nd |
| 1717948 | 707 | COVER,TANK |
| 1720077 | 708 | SHEET,GUIDE,TUBE,SUPPORT |
| 1720078 | 709 | POROUS PAD,TANK,UPPER |
| 1735629 | 710 | IS M1 ASSY.,CG19,EPPI,ASP |
| 1812892 | 712 | DUPLEX ASSY, CG29,EPPI[1760626] |
| 1817588 | 712 | DUPLEX ASSY, CG29,EPPI[1760626] |
| 1724140 | 713 | TANK ASSY BK,CG19,EPPI |
| 1724141 | 714 | TANK ASSY CL,CG19,EPPI |
| 1724142 | 715 | TUBE SUPPLY INK ASSY,CG19,EPPI |
| 1724143 | 716 | ADAPTER ASSY BK,CG19,EPPI |
| 1724144 | 717 | ADAPTER ASSY CL,CG19,EPPI |
| 1754376 | 718 | KEY SLOT ML ASSY.,CG19,EPPI,ASP |
| 1741765 | 723 | HOLDER,CONNECTOR,CSIC,IS |
| 2184967 | 726 | CONNECTOR,CSIC |
| 1717927 | 727 | PRESSING PLATE,TUBE |
| 1282372 | 728 | C.B.S-TITE SCREW,3X10,F/ZN-3C |
| 1760357 | 729 | POROUS PAD,CR,u1 |
| 1694173 | 730 | SHEET,PAPER GUIDE,ASF |
| 2185770 | 731 | CABLE,CSIC,INK EJECT,B |
| 2186987 | 800 | SCANNER ADF UNIT.,CG19,EPPI, ASP |
| 1694135 | 801 | MAT,COVER,DOCUMENT |
| 1720965 | 803 | LABEL,EPSON |
| 1791102 | 900 | ADF ASSY.,CG28,EPPI,ASP |
| 1876493 | 900 | ADF ASSY.,CG28,EPPI,ASP |
| 1718007 | 901 | COVER,DOCUMENT SUPPORT,ADF |
| 1859472 | 901 | COVER,DOCUMENT SUPPORT,ADF |
| 1718011 | 902 | DOCUMENT SUPPORT,ADF |
| 1724258 | 903 | PGU LD ADF ASSY.,CG19,EPPI |
| 1724316 | 904 | STACKER ADF ASSY.,CG19,EPPI |
| 1718010 | 905 | STACKER,SUB,ADF |
| 1724257 | 907 | PAD ADF ASSY.,CG19,EPPI |
| 1740240 | 908 | COMPRESSION SPRING,1.62 |
