EPSON L1250 L1251 L1256 L1258 L1259 / ET-1810 Parts Manual
In stock
SKU
EP-L1250-PM
$1.30
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON L1250 L1251 L1256 L1258 L1259 / ET-1810 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.26M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L1200 Series EPSON ET-1800 Series |
EPSON L1250 L1251 L1256 L1258 L1259 / ET-1810 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| 1835975 | 100 | HOUSING,LEFT |
| 1746175 | 101 | COVER,INK EJECT |
| 1752867 | 102 | HOUSING,RIGHT |
| 1752869 | 104 | HOUSING,FRONT,RIGHT |
| 1752871 | 105 | COVER,TANK |
| 1765460 | 106 | HOPPER ASSY.,CG89,EPPI,ASP |
| 1865805 | 106 | HOPPER ASSY.,CG89,EPPI,ASP |
| 1746165 | 107 | PAPER SUPPORT |
| 1749776 | 108 | STACKER ASSY.,CG86,EPPI |
| 1866391 | 109 | COVER FRONT ASSY.,CJ70,EPPI,ASP |
| 1837474 | 110 | LABEL,MODEL NAME,ET-1810 |
| 1840051 | 112 | HOUSING UPPER ASSY.,CJ71,EPPI |
| 1746911 | 113 | LABEL,INK,Position,EEB |
| 1746673 | 117 | COMPRESSION SPRING,1.83,HOPPER |
| 1866395 | 118 | STAND SC ASSY,CJ70,ASP,EPPI |
| 1838771 | 119 | LABEL,Caution,EEB WE |
| 1837349 | 120 | LABEL,eco tank SDOTT |
| 2208562 | 200 | BOARD ASSY.,MAIN |
| 2208565 | 300 | BOARD ASSY.,POWER SUPPLY 7497A,STANDARD |
| 2217113 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2207229 | 350 | WIRELESS LAN USB MODULE |
| 1760358 | 353 | POROUS PAD,CR,F2 |
| 1756593 | 501 | INK SYSTEM ASSY.,CG86,EPPI,ASP |
| 1840049 | 502 | SHAFT LD ASSY.,CJ67,EPPI |
| 1896936 | 502 | SHAFT LD ASSY.,CJ67,EPPI |
| 1898868 | 502 | SHAFT LD ASSY.,CJ67,EPPI |
| 1756597 | 503 | LEVER,DETECTOR,PE,CG86,EPPI,ASP |
| 1865783 | 504 | PGU CENTER ASSY B,CG89,EPPI |
| 1919900 | 504 | PGU CENTER ASSY B,CG89,EPPI |
| 1763610 | 505 | PAPER GUIDE UPPER RIGHT ASSY.,CG89,EPPI |
| 1919902 | 505 | PAPER GUIDE UPPER RIGHT ASSY.,CG89,EPPI |
| 1763609 | 506 | PAPER GUIDE UPPER LEFT ASSY.,CG89,EPPI |
| 1919901 | 506 | PAPER GUIDE UPPER LEFT ASSY.,CG89,EPPI |
| 2189475 | 507 | MOTOR,ASSY,CR |
| 1756596 | 508 | CARRIAGE ASSY.,CG86,EPPI,ASP |
| 2189473 | 509 | CABLE,ENCODER,CR |
| 2222301 | 509 | CABLE,ENCODER,CR |
| 2209094 | 510 | CABLE,HEAD,CR,F2 |
| 2209097 | 511 | MOTOR,ASSY.,PF |
| 1741749 | 512 | CLUTCH |
| 1718070 | 513 | HOLDER,CLUTCH |
| 1718063 | 514 | EXTENSION SPRING,0.137 |
| 1757294 | 515 | EXTENSION SPRING,0.134,LEVER,DETECTOR |
| 1540008 | 516 | DOUBLE SIDE TAPE,D21,B |
| 1717901 | 520 | Ersetzt durch: 1832107 |
| 1835996 | 521 | SPUR GEAR,CLUTCH,45.6 |
| 1790713 | 522 | ROLLER PF ASSY.,CG87,EPPI |
| 2208649 | 532 | BOARD ASSY.,ENCODER |
| 1749771 | 543 | LEVER CHANGE ASSY.,CG86,EPPI |
| 1718100 | 545 | HOLDER,FFC,F2 |
| 1746144 | 546 | COMBINATION GEAR,40.97,35.4 |
| 1881401 | 546 | COMBINATION GEAR,40.97,35.4 |
| 1746145 | 547 | SPUR GEAR,36 |
| 1881402 | 547 | SPUR GEAR,36 |
| 1866393 | 548 | STAND,SC,SUPPORT,ASSY,CJ65,ASP,EPPI |
| 1746663 | 549 | FOOT,6t-2t |
| 1749766 | 550 | HOLDER STARWHEEL ASSY.,CG86,EPPI |
| 1836853 | 551 | COVER,MAIN BOARD |
| 1836854 | 552 | COVER,MOTOR,CR |
| 1746682 | 553 | POROUS PAD,CAP |
| 1754459 | 554 | FOOT,5t-15x9 |
| 1746665 | 555 | GROUNDING SPRING,ROLLER,PF |
| FA04061 | 700 | PRINT HEAD,ID1510-2 |
| 1830528 | 701 | MAINTENANCE BOX ASSY.B,CG86,EPPI |

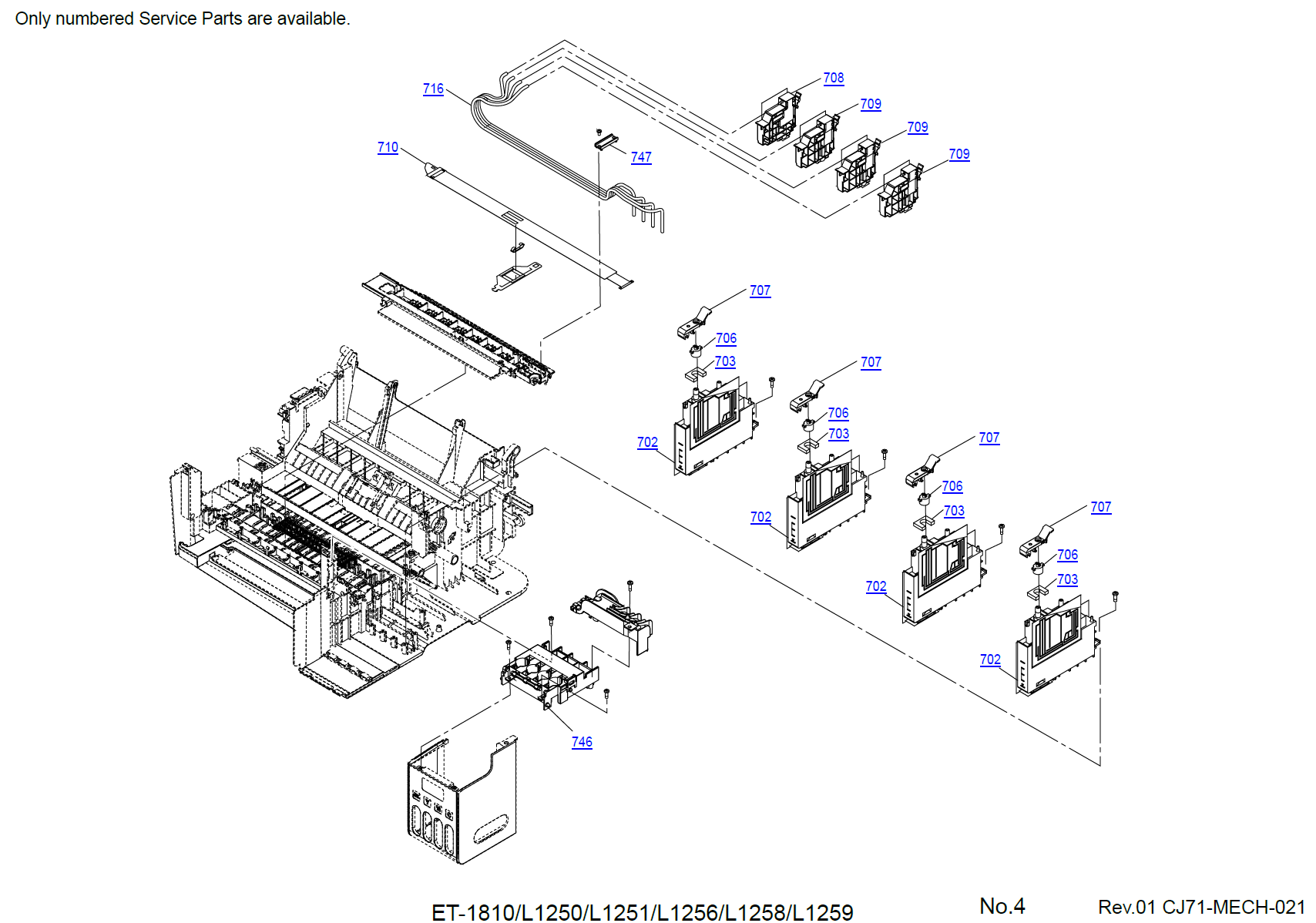

| 1748804 | 702 | TANK SUPPLY INK ASSY.,CG86,EPPI |
| 1746677 | 703 | POROUS PAD,TANK,UPPER |
| 1746151 | 704 | PIN,POROUS PAD |
| 1746666 | 705 | POROUS PAD,PAPERGUIDE,FRONT |
| 1710162 | 706 | CAP,TANK SDOTT.com |
| 1746005 | 707 | HINGE,CAP,TANK |
| 1758384 | 708 | ADAPTER BK ASSY.,CG89,EPPI |
| 1758383 | 709 | ADAPTER ASSY CL,CG89,EPPI |
| 1746667 | 710 | SHEET,GUIDE,TUBE |
| 1746669 | 711 | SCALE,CR,180 |
| 2208651 | 712 | BOARD ASSY.,ENCODER |
| 1571785 | 713 | SCALE,PF,B |
| 1548480 | 714 | EXTENSION SPRING,1.41 |
| 1767062 | 715 | HOLDER RETARD ASSY.,CG89,EPPI |
| 1904592 | 715 | HOLDER RETARD ASSY.,CG89,EPPI |
| 1746681 | 716 | TUBE,SUPPLY,INK |
| 1758290 | 721 | TORSION SPRING,2.48 |
| 1756405 | 723 | EXTENSION SPRING,1.58 |
| 1865915 | 740 | HOLDER LD ASSY C.,CG86,EPPI |
| 2189471 | 741 | CABLE,ENCODER,PF |
| 1718089 | 742 | LEVER,PAPER,RETURN |
| 1835991 | 745 | COVER,CR |
| 1749768 | 746 | KEY SLOT FL ASSY.,CG86,EPPI |
| 1563742 | 747 | PRESSING PLATE,TUBE,C |
