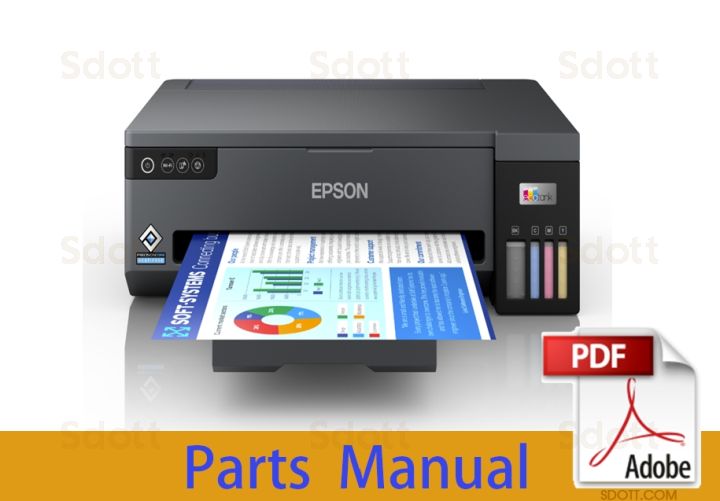

EPSON L11050 ET-14100 Parts Manual
In stock
SKU
EP-L11050-PM
$1.70
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
| Manual Name | EPSON L11050 ET-14100 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 5.93M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L11050 EPSON ECOTANK ET-14100 Series ET-14100 |
EPSON L11050 ET-14100
Parts Manual
****** The following content is not included in the PDF manual. Please refer to ONLINE ******
| ECOTANK ET-14100 | 1894585 | 100 | HOUSING,FRONT |
| ECOTANK ET-14100 | 1894589 | 101 | HOUSING,LEFT |
| ECOTANK ET-14100 | 1894588 | 102 | HOUSING,RIGHT |
| ECOTANK ET-14100 | 1897358 | 104 | PANEL ASSY CK39,EPPI |
| ECOTANK ET-14100 | 1733359 | 106 | HOUSING,INK EJECT,B |
| ECOTANK ET-14100 | 1894590 | 112 | COVER,TANK |
| ECOTANK ET-14100 | 1900821 | 113 | HOUSING,FRONT,RIGHT,RPSP,B |
| ECOTANK ET-14100 | 1894582 | 115 | COVER,ASF |
| ECOTANK ET-14100 | 1894581 | 116 | COVER,TOP |
| ECOTANK ET-14100 | 1894587 | 117 | HOUSING,UPPER,REAR,RPSP |
| ECOTANK ET-14100 | 1918175 | 118 | COVER,PRINTER.,ASP,CK39,EPPI |
| ECOTANK ET-14100 | 1894586 | 119 | HOUSING,UPPER,FRONT,RPSP |
| ECOTANK ET-14100 | 1845726 | 120 | LABEL,PrecisionCore,F2 |
| ECOTANK ET-14100 | 2219256 | 121 | HARNESS |
| ECOTANK ET-14100 | 1906441 | 122 | STACKER ASSY.,CK39,EPPI |
| ECOTANK ET-14100 | 1837349 | 123 | LABEL,eco tank |
| ECOTANK ET-14100 | 1895888 | 124 | LABEL,MODEL,INK,EEB(EUR) |
| ECOTANK ET-14100 | 1891098 | 125 | LABEL,LD ROLLER |
| ECOTANK ET-14100 | 1895505 | 126 | LABEL,EPSON,SN,ET-14100 |
| ECOTANK ET-14100 | 1895899 | 127 | LABEL,TRANSPORTATION,LOCK |
| ECOTANK ET-14100 | 1839347 | 128 | LABEL,CAUTION,EUR |
| ECOTANK ET-14100 | 1895893 | 129 | LABEL,CAUTION,INJECTION,EEB(EUR) |
| ECOTANK ET-14100 | 1906442 | 130 | PAPER SUPPORT ASSY.,CK39,EPPI |
| ECOTANK ET-14100 | 1284698 | 131 | H.N.-1,3,F/ZN-3C |
| ECOTANK ET-14100 | 1894583 | 132 | HOUSING,BACK |
| ECOTANK ET-14100 | 1734152 | 133 | FOOT,12x12x3 |
| ECOTANK ET-14100 | 1893653 | 134 | LABEL,PASSWORD |
| ECOTANK ET-14100 | 2219248 | 200 | BOARD ASSY.,MAIN |
| ECOTANK ET-14100 | 2193662 | 300 | BOADR ASSY.,POWER SUPPLY |
| ECOTANK ET-14100 | 2226044 | 351 | WIRELESS LAN USB MODULE |
| ECOTANK ET-14100 | 2232304 | 351 | WIRELESS LAN USB MODULE |
| ECOTANK ET-14100 | 2219258 | 355 | HARNESS |
| ECOTANK ET-14100 | 1803933 | 507 | POROUS PAD,PAPER GUIDE,LOWER |
| ECOTANK ET-14100 | 1883208 | 508 | PAPER GUIDE FRONT M1 ASSY,CH96,EPPI |
| ECOTANK ET-14100 | 2223082 | 509 | MOTOR,ASSY,CR |
| ECOTANK ET-14100 | 1826703 | 510 | CARRIAGE M1 ASSY.,CH96,EPPI,ASP |
| ECOTANK ET-14100 | 2181521 | 511 | BOARD ASSY.,SNS |
| ECOTANK ET-14100 | 2223080 | 512 | CABLE,ENCORDER,CR |
| ECOTANK ET-14100 | 2223079 | 513 | CABLE,HEAD |
| ECOTANK ET-14100 | 2181522 | 514 | BOARD ASSY.,SNS |
| ECOTANK ET-14100 | 1888279 | 515 | PGU RIGHT OUTER ASSY,C,CH96,EPPI |
| ECOTANK ET-14100 | 1888278 | 516 | PGU RIGHT ASSY,C.CH96,EPPI |
| ECOTANK ET-14100 | 1548480 | 517 | EXTENSION SPRING,1.41 |
| ECOTANK ET-14100 | 1917611 | 518 | SCALE,PF ASSY,CL00,EPPI,ASP |
| ECOTANK ET-14100 | 1804250 | 519 | SCALE,CR |
| ECOTANK ET-14100 | 1918173 | 520 | FILM,HOLDER,FFC.,ASP,CK39,EPPI |
| ECOTANK ET-14100 | 1897356 | 521 | PGU CENTER ASSY.,CK39,EPPI |
| ECOTANK ET-14100 | 1803936 | 522 | GND SPRING,ROLLER,EJ |
| ECOTANK ET-14100 | 2181519 | 523 | BOARD ASSY.,ENCODER |
| ECOTANK ET-14100 | 2223401 | 524 | CABLE,ENCODER,PF |
| ECOTANK ET-14100 | 1717912 | 526 | GORUNDING PLATE,HEAD,CR |
| ECOTANK ET-14100 | 1803934 | 528 | POROUS PAD,PAPER GUIDE,LOWER,B |
| ECOTANK ET-14100 | 2181517 | 532 | BOARD ASSY.,ENCODER |
| ECOTANK ET-14100 | 1901139 | 534 | ROLLER EJ ASSY,CH96,EPPI |
| ECOTANK ET-14100 | 2223078 | 541 | MOTOR,ASSY,PF |
| ECOTANK ET-14100 | 1895393 | 542 | ROLLER PF ASSY,CH96,EPPI |
| ECOTANK ET-14100 | 1920501 | 543 | HOLDER STARWHEEL ASSY.,CK39,EPPI |
| ECOTANK ET-14100 | 1797487 | 545 | HOLDER,FFC,CR |
| ECOTANK ET-14100 | 1598326 | 550 | FOOT |
| ECOTANK ET-14100 | 1754459 | 551 | FOOT,5t-15x9 |
| ECOTANK ET-14100 | 2197079 | 553 | PHOTO INTERRUPTER,ASF |
| ECOTANK ET-14100 | 2147998 | 574 | BOARD ASSY.,SUB |
| ECOTANK ET-14100 | 1918174 | 575 | PULLEY DRIVEN.,ASP,CK39,EPPI |
| ECOTANK ET-14100 | 1918177 | 576 | MOTOR,ASSY,ASF.,ASP,CK39,EPPI |
| ECOTANK ET-14100 | 1888936 | 577 | LEVER,PAPER,BACK sdott.com |
| ECOTANK ET-14100 | 1925894 | 578 | HOLDER RETARD ASSY.,CK39,EPPI |
| ECOTANK ET-14100 | 2223075 | 579 | CABLE,ENCODER,ASF |
| ECOTANK ET-14100 | 1804024 | 580 | GROUNDING SPRING,ROLLER,PF |
| ECOTANK ET-14100 | 2225911 | 581 | CABLE,PE,B |
| ECOTANK ET-14100 | 1797495 | 582 | LEVER,TRANSMISSION,APG |
| ECOTANK ET-14100 | 1766896 | 583 | HOLDER,PE |
| ECOTANK ET-14100 | 1803893 | 584 | EXTENSION SPRING,9.53,B |
| ECOTANK ET-14100 | 1881401 | 585 | COMBINATION GEAR,40.97,35.4,KP |
| ECOTANK ET-14100 | 1797497 | 586 | SPUR GEAR,19.8 |
| ECOTANK ET-14100 | 1888944 | 587 | COMB,GEAR,32,12.8 |
| ECOTANK ET-14100 | 1888941 | 588 | COMB,GEAR, 26.81,12.8 |
| ECOTANK ET-14100 | 1888942 | 589 | SPUR,GEAR,LD,22.4 |
| ECOTANK ET-14100 | 1888943 | 590 | SPUR,GEAR 25.6 |
| ECOTANK ET-14100 | 1804025 | 591 | TORSION SPRING,2.11 |
| ECOTANK ET-14100 | 1740831 | 592 | EXTENSION SPRING,1.578 |
| ECOTANK ET-14100 | 1902921 | 701 | IS M1 ASSY.,CH96,EPPI,ASP |
| ECOTANK ET-14100 | 2222840 | 702 | CABLE,CSIC,INK EJECT |
| ECOTANK ET-14100 | 1881398 | 703 | HOLDER,CONNECTOR,CSIC,IS,KP |
| ECOTANK ET-14100 | 1797489 | 704 | COVER,CABLE,HEAD |
| ECOTANK ET-14100 | 1875778 | 705 | SHEET,GUIDE,TUBE,B |
| ECOTANK ET-14100 | 1875777 | 706 | GUIDE,TUBE,SUPPLY,INK,B |
| ECOTANK ET-14100 | 1797486 | 707 | COVER,CR |
| ECOTANK ET-14100 | 1809072 | 708 | SHEET,GUIDE,TUBE,SUPPORT |
| ECOTANK ET-14100 | 1720078 | 709 | POROUS PAD,TANK,UPPER |
| ECOTANK ET-14100 | 1906440 | 710 | HOPPER ASSY.,CK39,EPPI |
| ECOTANK ET-14100 | 1919546 | 711 | COMPRESSION SPRING,HOPPER,1.49 |
| ECOTANK ET-14100 | 1899421 | 713 | TANK ASSY BK,CK39,EPPI |
| ECOTANK ET-14100 | 1899422 | 714 | TANK ASSY CL,CK39,EPPI |
| ECOTANK ET-14100 | 1923020 | 715 | TUBE SUPPLY INK ASSY.,CK39,EPPI,ASP |
| ECOTANK ET-14100 | 1810238 | 716 | ADAPTER ASSY BK,CH96,EPPI |
| ECOTANK ET-14100 | 1810239 | 717 | ADAPTER ASSY CL,CH96,EPPI |
| ECOTANK ET-14100 | 1894018 | 718 | KEY SLOT,ML |
| ECOTANK ET-14100 | 2184967 | 726 | CONNECTOR,CSIC |
| ECOTANK ET-14100 | 1760357 | 729 | POROUS PAD,CR,u1 |
| ECOTANK ET-14100 | 1895930 | 730 | LABEL,INSTRUCTION,VALVE,LEG |
| ECOTANK ET-14100 | 1749330 | 731 | HINGE,CAP,TANK |
| ECOTANK ET-14100 | 1746689 | 732 | POROUS PAD,INK EJECT,LOWER |
| ECOTANK ET-14100 | 1797548 | 733 | CAM,LEVER,VALVE |
| ECOTANK ET-14100 | 1797549 | 734 | COVER,VALVE |
| ECOTANK ET-14100 | 1797547 | 735 | CASE,VALVE |
| ECOTANK ET-14100 | 1918176 | 736 | FRAME,ASF,REAR ASSY.,ASP,CK39,EPPI |
| ECOTANK ET-14100 | 1803579 | 737 | EXTENSION SPRING,17.54 |
| ECOTANK ET-14100 | 1717949 | 738 | COVER,KEY,SLOT |
